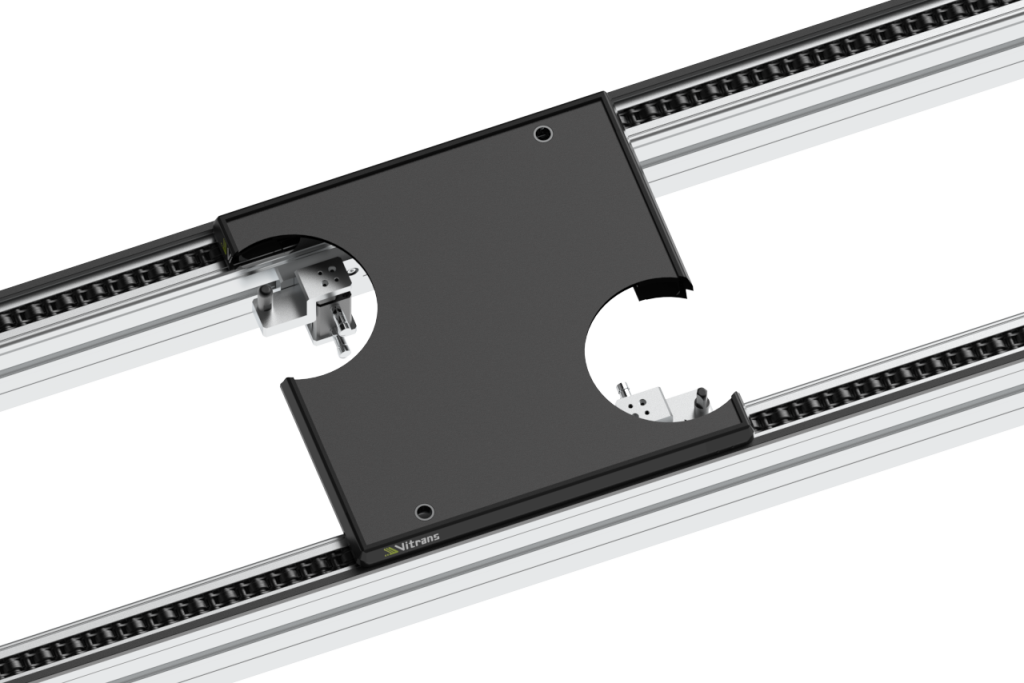

PX emelés nélküli pozicionáló egység
Using the pins of locate unit and positioning bushings of workpiece pallet to precisely locate workpiece pallet.
Paraméter-előírások
| Termékleírás | Pin locate unit |
|---|---|
| Working principle | Uses locate unit pins with workpiece pallet positioning bushings to precisely locate the pallet; cannot lift the pallet |
| Usage | Used in pairs; can be installed on the conveyor of lifter |
| Alkalmas | WA2 és WE2 munkadarab-paletta |
| Locate accuracy(mm) | ±0,1 |
| Módosított szállítószalag-típus | BC2 / AC2 / PC2 (also usable on FC2 when adapted type is BC2) |
| Cylinder brand | S |
Részletek

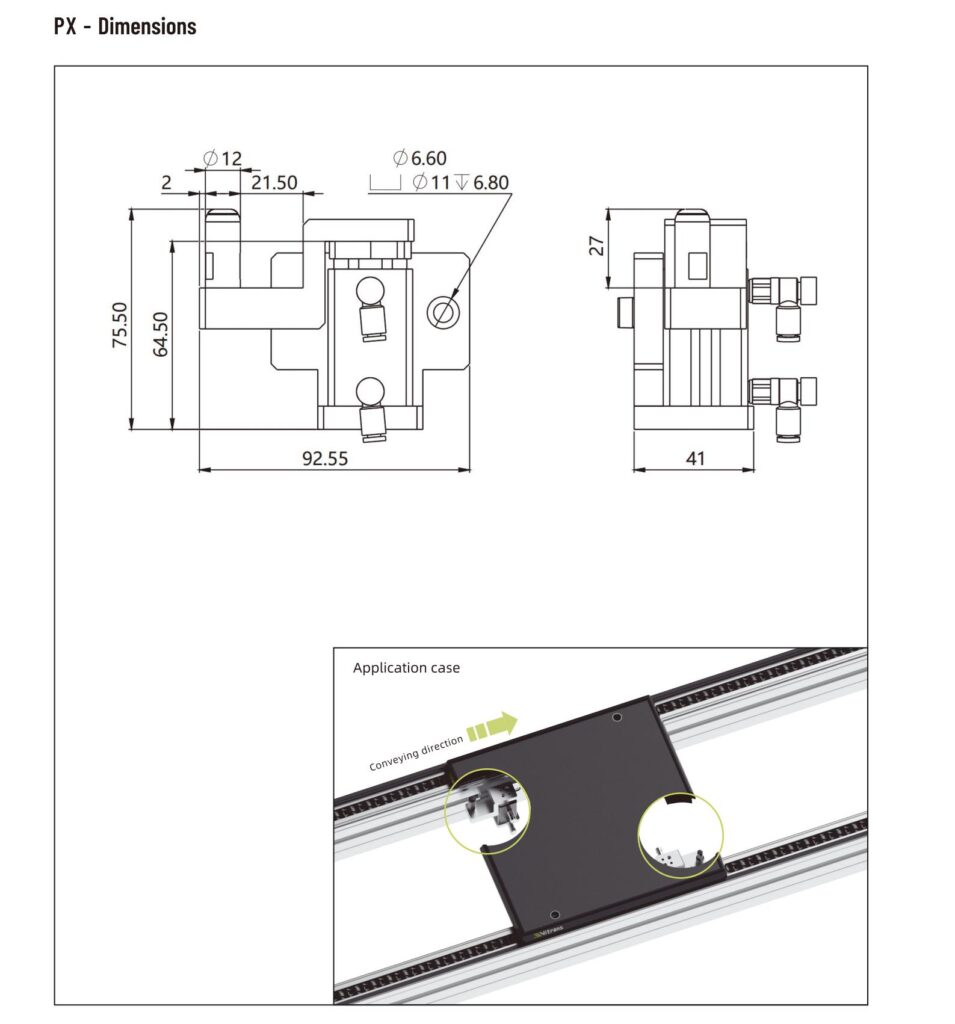

PX Pin locate Unit Specification:
