説明

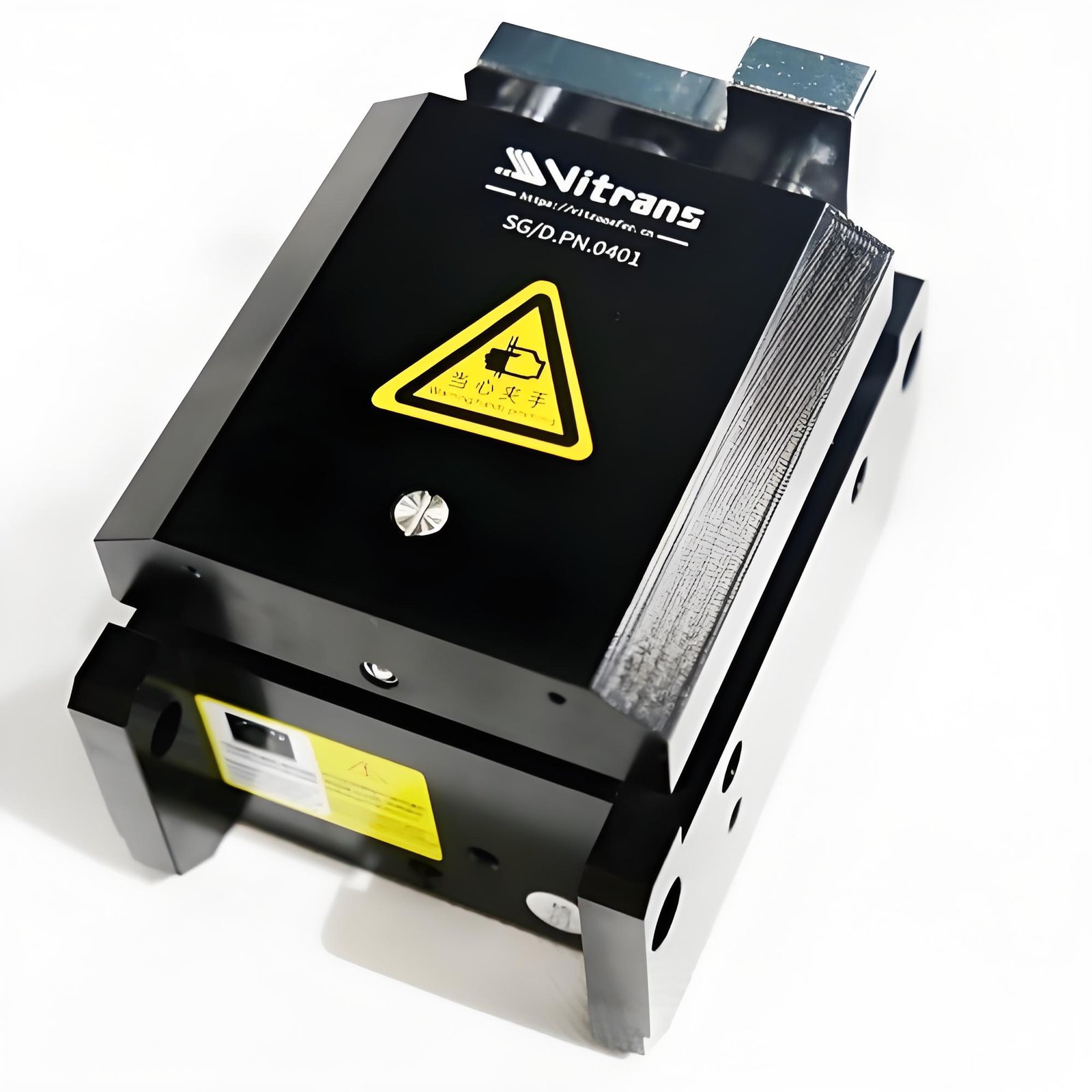

SG/D-150 pneumatic dampened Stopper Specification:
- モデルコード： SG/D.PN.0401
- Allowed max.Loading:150kg (under pallet speed 6m/min)
- Stopper type:pneumatic
- Acting type:single acting
- Air connector diameter: 6mm
- アクセサリーを取り付ける：を含む
- solenoid valve:除く
- Sensor:除く
Accumulated:
The stopper allows pallet accumulated. But the total weight of pallets including fixtures and product should not exceed stopper allowed total loading.
Installation:
Install stopper at conveyor left side: When stopper is used with other modules like lift and transfer unit, stopper has to be installed at conveyor left side to stop pallet outer edge.
Install stopper at conveyor right side：When stopper is install at conveyor right side, it can stop pallet inner edge. This installing method can save space and release accumulated pallet one by one.
