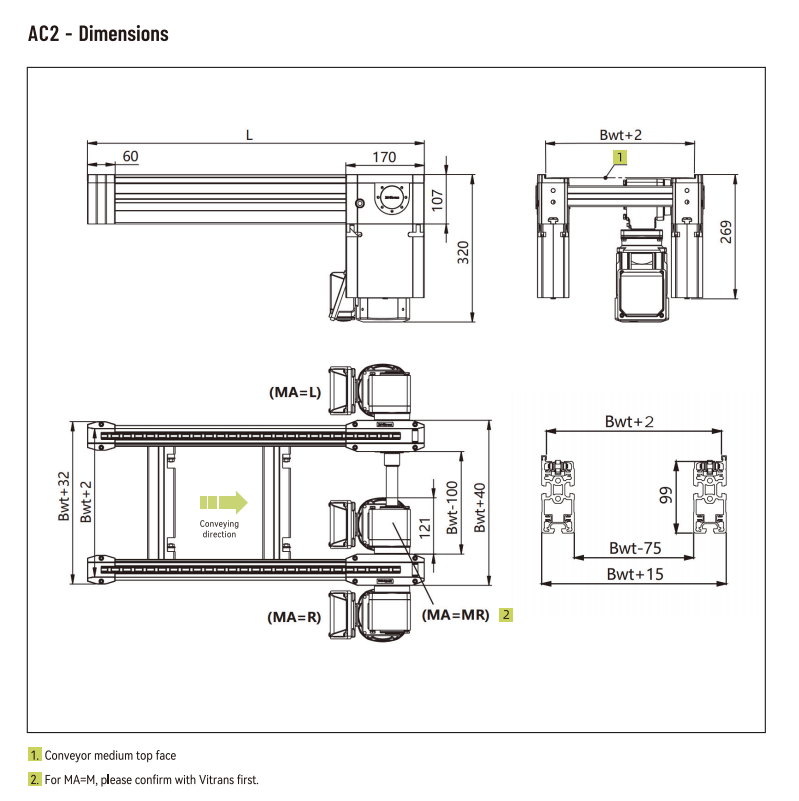

AC2 蓄積式チェーンコンベヤ／ローラーチェーンパレットコンベヤ／フリーフローコンベヤ
パラメータ仕様
| 搬送媒体 | スチール製蓄積チェーン（標準）、プラスチック製蓄積チェーン、カバー付きスチール製蓄積チェーン、カバー付きプラスチック製蓄積チェーン |
|---|---|
| ワークパレットの幅（mm） | 160,240,320,400,480,560,640,800,1040,1200 |
| コンベヤーの長さ（mm） | 300≤L≤6000 (Reversible operation possible for L≤2000mm and accumulated chain without cover) |
| 定格速度（m/min） | 0,6,9,12,15,18 |
| 許容最大積載量（kg） | 300 |
| 許容最大面荷重 | 1.5kg/cm（プラスチック製スライドプロファイル）、2.0kg/cm（スチール製スライドプロファイル） |
| モーターの種類 | 三相モーター |
| モーターの取り付け位置 | L（左）、R（右）、ML（左中央）、MR（右中央） |
| モーターの取り付け角度 | 0°,90°,180°,270° |
| 動作電圧 | 220/380AC |
| 動作周波数 | 50Hz |
| モーターの接続 | 端子箱 |
詳細
Roller Chain conveyor Specification:
- 搬送媒体： Accumulated roller chain
- 輸送方向におけるパレットの幅／mm： 160、240、320、400、480、640、800（160≤Bwt≤800）
- コンベヤーの長さ（mm）： 300≤L≤30000
- 定格速度 /(m/min)： 6, 9, 12, 15, 18
- 最大積載量／kg： 700
- 駆動方式： 3相モーター
- モーターの取り付け方法： L、R、M
- モーターの取り付け方向： 0°, 90°, 180°, 270°
- 電圧 /V： 220/380 AC
- 周波数／Hz： 50
- モーターの接続： 端子箱
主なメリット：
- Smooth, precise pallet transport
- Durable chain design for heavy-duty use
- Modular setup for easy integration
- Handles various pallet types
- Energy-efficient and eco-friendly
Automated Harmony:
At the core of the revolution, Roller Chain Conveyors resonate with the essence of automated harmony. Their precision-engineered design seamlessly integrates into パレットコンベヤシステム, orchestrating a fluid and synchronized dance of material flow. From assembly lines to production floors, the automated precision of these conveyors becomes the catalyst for heightened operational efficiency.
The Art of Chain Innovation:
Roller Chain Conveyors bring forth the art of chain innovation, going beyond the conventional boundaries of material handling. The robust and durable chain design ensures longevity, making them ideal for heavy-duty industrial applications. This innovation extends to the modular nature of the conveyor, allowing for easy integration into a variety of pallet systems with minimal downtime.
Eco-Friendly Handling Solutions:
Beyond the confines of industrial settings, Roller Chain Conveyors find a place in eco-friendly handling solutions. Their energy-efficient operation and minimal environmental impact make them ideal for sustainable practices. Whether transporting batteries or trays, these conveyors align with the ethos of responsible and eco-conscious material handling.
Future-Proofing Material Flow:
Roller Chain Conveyors transcend their role as mere conveyors; they become architects of future-proof material flow. From handling pallets in industrial complexes to facilitating household chores, their adaptability and reliability position them as indispensable elements in the conveyor systems of tomorrow.
Efficiency in Motion:
In the ballet of production line conveyors, Roller Chain Conveyors emerge as the epitome of efficiency in motion. Their smooth and reliable transport mechanism ensures a continuous flow of pallets, contributing to the optimization of the entire production process. The conveyors’ ability to handle various pallet types, including plastic and roller chain, further enhances their versatility.
Design Unleashed:
Roller Chain Conveyors unleash a new paradigm in design aesthetics, seamlessly blending form with function. Their modular and adaptable design not only ensures easy integration into existing conveyor systems but also facilitates rapid customization for specific production requirements. The result is an elevated visual appeal that complements the efficiency of the conveyor.
