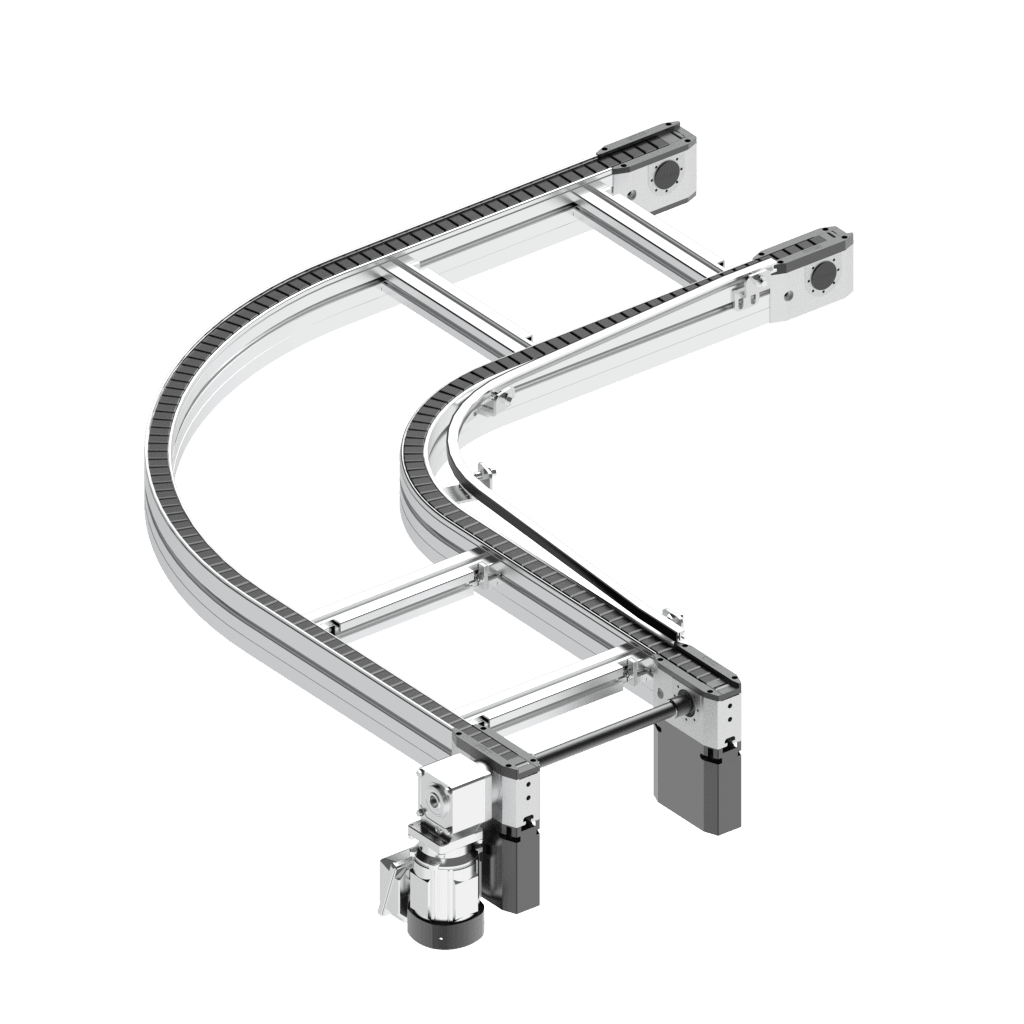

CV/90도 평면 상부 체인 컨베이어 커브
매개변수 사양
| 공작물 팔레트 폭(mm) | 160,240,320,400,480,560,640,720,800,1040,1200 |
|---|---|
| 공작물 팔레트 길이(mm) | 160,240,320,400,480,560,640,720,800,1040,1200 |
| 조합 옵션(mm) | 160 x 160、240、320 |
| 조합 옵션(mm) | 240 x 160、240、320、400、480 |
| 조합 옵션(mm) | 320 x 160、240、320、400、480 |
| 조합 옵션(mm) | 400 x 240、320、400、480、560、640、720 |
| 조합 옵션(mm) | 480 x 320、400、480、560、640、720、800 |
| 조합 옵션(mm) | 560 x 320、400、480、560、640、720、800 |
| 조합 옵션(mm) | 640 x 320、400、480、560、640、720、800、1040 |
| 조합 옵션(mm) | 720 x 400、480、560、640、720、800、1040 |
| 조합 옵션(mm) | 800 x 480、560、640、720、800、1040 |
| 허용 최대 하중(kg) | 90 |
| 허용 최대 표면 하중(kg/cm) | 1 |
| 정격 속도(m/min) | 0,6,9,12,15,18 |
| 모터 유형 | 3상 모터 |
| 모터 장착 위치 | L(왼쪽), R(오른쪽) |
| 방향 전달 | C0(시계 방향) / CL(반시계 방향) |
| 작동 전압 | 220/380AC |
| 작동 주파수 | 50Hz |
| 모터 연결 | 단자함 |
상세 정보
CV2/90 Flat top chain conveyor curve
- Note: For workpiece pallet length is between 560mm and 1040mm, the dimensions of the curve unit is shown in above drawing. For workpiece pallet length Lwt is less than 800mm, curve unit inner diameter R1 is 320mm. For other lengths, the inner diameter R1 is 400mm.
주요 장점:
- Wear resistant flat top chain, long service life
적재 용량 1kg/cm
suitable for pallet size bigger than 400mm
Allowed accumulating, No affect to cycle time - 관리가 간편하고, 먼지가 적음
- 빠른 설치를 위한 모듈식 설계
- 작동 시 소음이 적음
The Flat Top Chain conveyor Curve in Pallet Conveyor Systems
공간 최적화:
Efficient use of floor space is a constant challenge in industrial settings. The Flat Top Chain Conveyor Curve rises to this challenge with its compact design. By executing smooth turns with a minimal turning radius, it not only conserves space but also opens up new possibilities for layout design. This spatial optimization is a game-changer in facilities where every square meter counts.
High Load Capacity:
One of the primary advantages of the Flat Top Chain Conveyor Curve is its exceptional load-carrying capacity. Built to handle heavy loads with ease, this conveyor curve ensures that the production line can accommodate a diverse range of materials, contributing to the versatility and adaptability of the overall 컨베이어 시스템.
Allowance for Pallet Stacking:
In the dynamic realm of 팔레트 취급, the Flat Top Chain Conveyor Curve introduces a unique capability – the allowance for pallet stacking operations. This feature facilitates efficient use of vertical space, enabling the stacking of pallets for storage or specific processing needs. The ability to handle stacked pallets further enhances the 컨베이어 시스템‘s throughput and flexibility.
