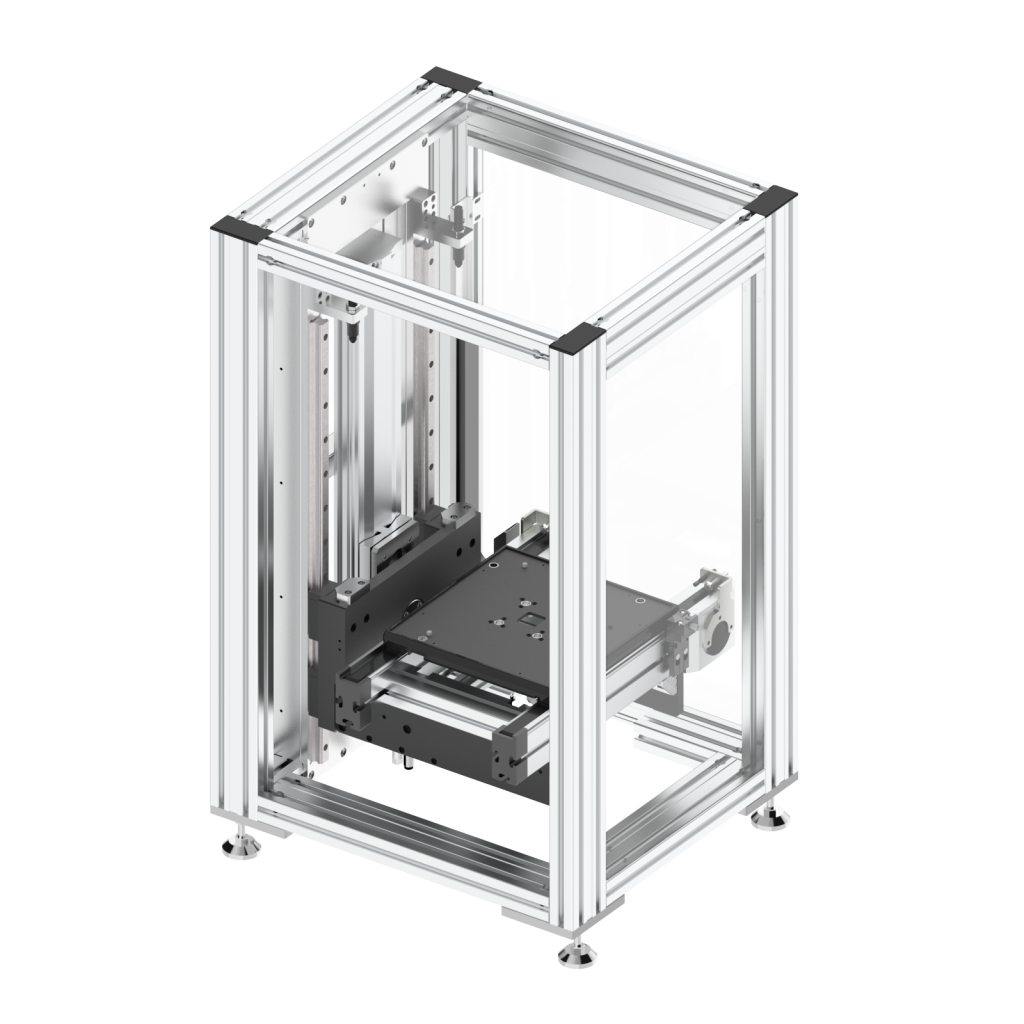

LP/P Pneumatic lifter
Parameter Specifications
| Workpiece pallet width(mm) | 160,240,320,400,480,560,640(Support customization) |
|---|---|
| Workpiece pallet length(mm) | 160,240,320,400,480,560,640(Support customization) |
| Conveyor length(mm) | L=Lwt+150 |
| Permitted maximum load(kg) | 30 |
| Top layer conveyor height range(mm) | ≤1500 |
| Bottom layer conveyor height range(mm) | ≥350 |
| Lift speed(mm/s) | ≤300 |
| Lift cylinder bore diameter(mm) | 50 |
| Rated working air pressure | 0.4～0.8 MPa |
| Rated speed of conveyor(m/min) | 0,6,9,12,15,18(V=0 means no motor) |
| Motor type | Stepper motor(Including I/O type stepper drive) |
| Motor mounting location | ML(Middle-left), MR(Middle-right) |
| Working voltage | DC: 48V 3.8A(Support customizing other working voltage) |

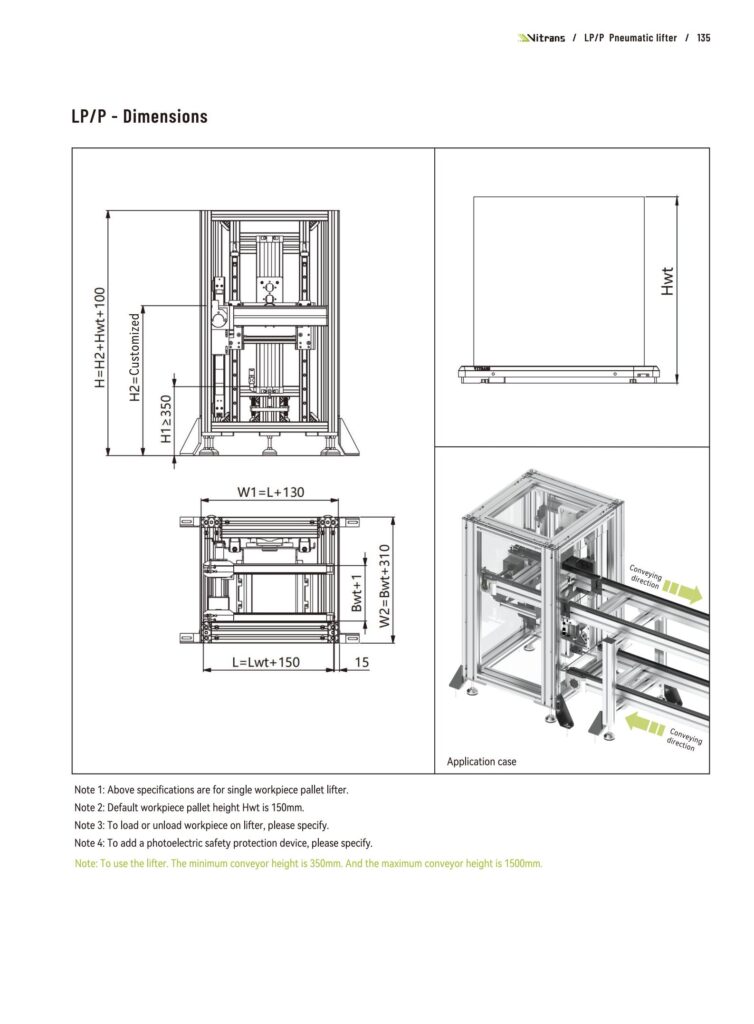

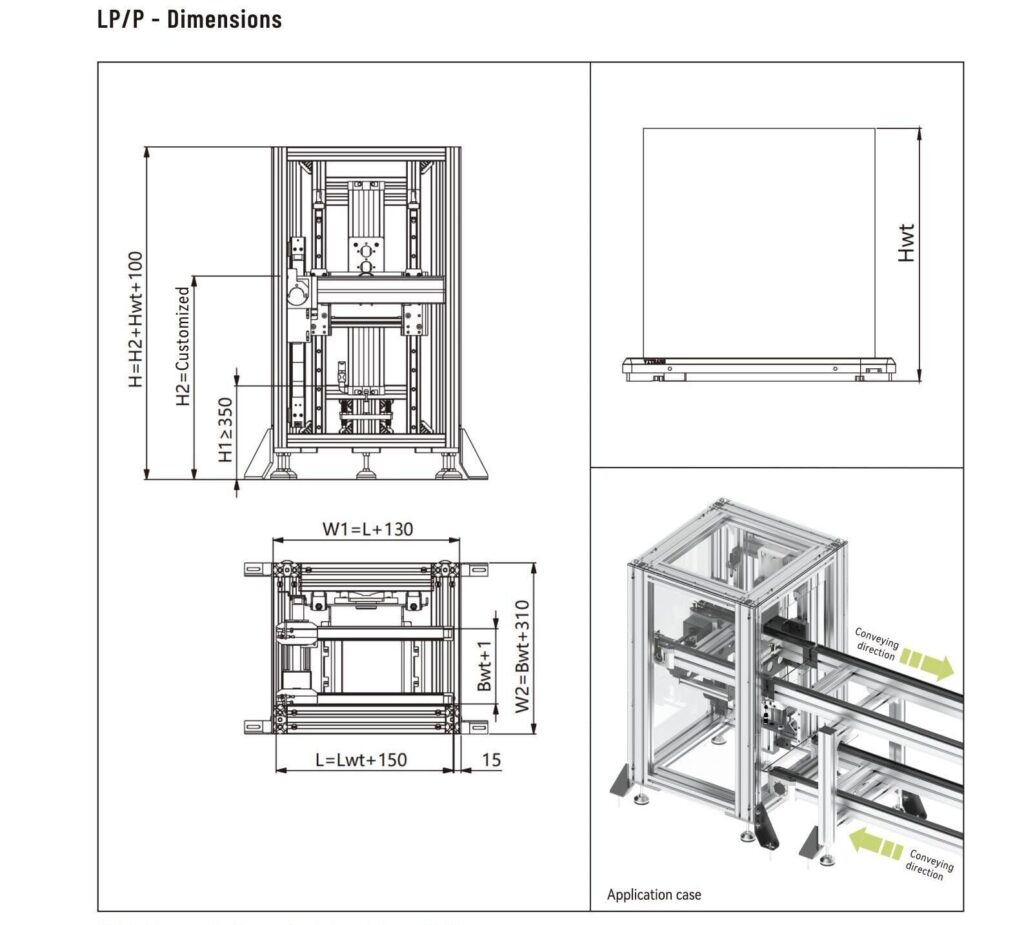

Details
LP/P Pallet conveyor pneumatic lifter
- Note 1: Above specifications are for single workpiece pallet lifter.
- Note 2: Default workpiece pallet height Hwt is 150mm.
- Note 3: To load or unload workpiece on lifter, please specify.
- Note 4: To add a photoelectric safety protection device, please specify
- Note: To use the lifter. The minimum conveyor height is 350mm. And the maximum conveyor height is 1500mm.
Key benefits:
- high performance-price ratio
- Stable and Easy to control
- Clean and Easy maintaining
- Modular design for quick installing
- Allowed reverse operating
- compact size for space saving
