| Workpiece pallet width(mm) |
160,240,320,400,480,560,640(Support customization) |
| Workpiece pallet length(mm) |
160,240,320,400,480,560,640(Support customization) |

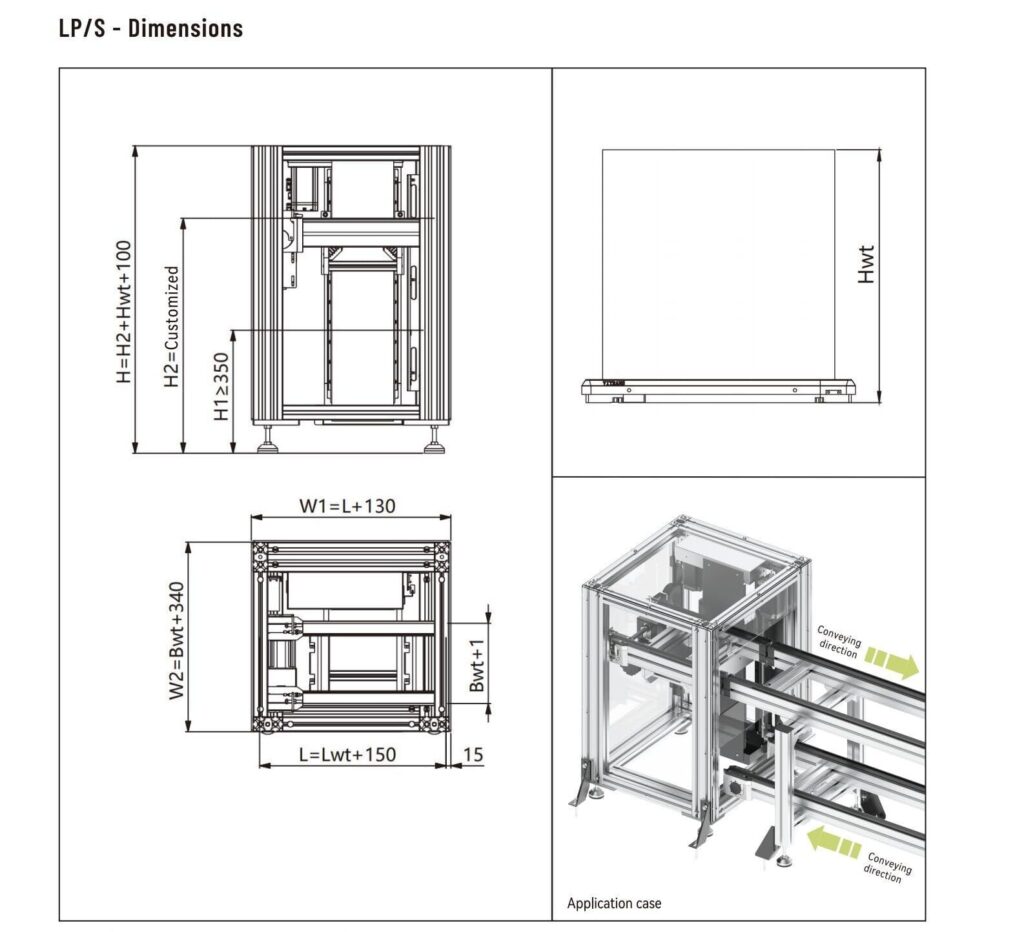

| Conveyor length(mm) |
L=Lwt+150 |
| Permitted maximum load(kg) |
30(Support customization) |
| Top layer conveyor height range(mm) |
≤1500 |
| Bottom layer conveyor height range(mm) |
≥350 |
| Lift speed(mm/s) |
≤500 |
| Rated speed of conveyor(m/min) |
0,6,9,12,15,18(V=0 means no motor) |
| Lift motor type |
Servo motor(Including pulse type servo drive) |
| Conveyor motor type |
Stepper motor(Including I/O type stepper drive) |
| Motor mounting location |
ML(Middle-left), MR(Middle-right) |
| Working voltage of servo motor |
AC: 220V(Single phase) |
| Working voltage of stepper motor |
DC: 48V 3.8A(Support customizing other working voltage) |
| Working frequency |
50Hz |
