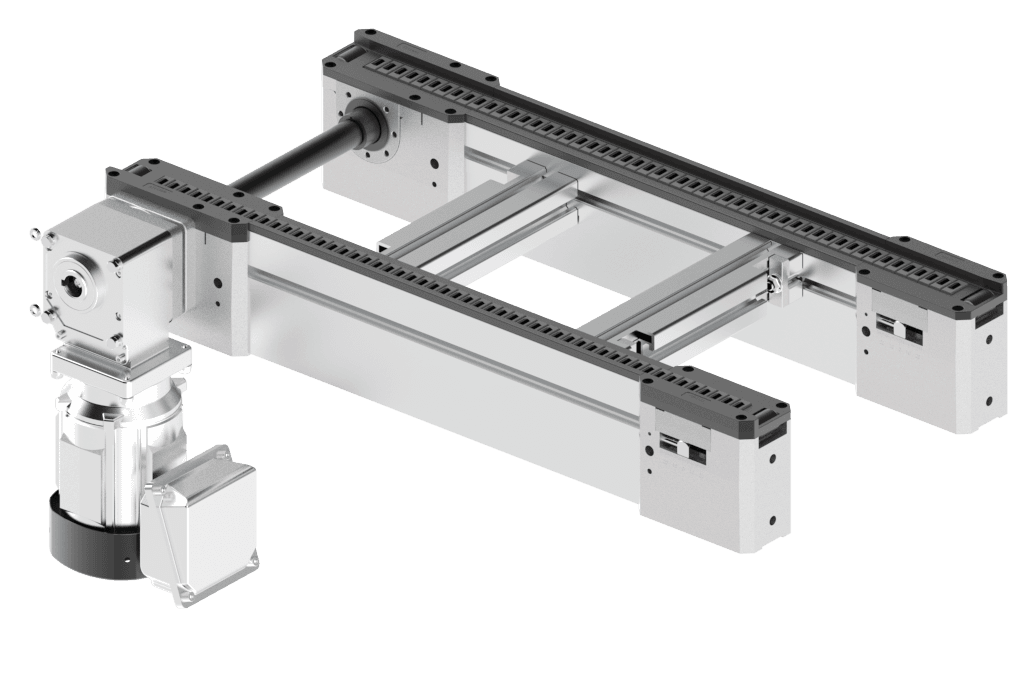

PC2 Plastic Chain Conveyor/Plastic Chain Pallet Conveyor/Free Flow Conveyor
Parameter Specifications
| Conveyor medium | Plastic chain conveyor |
|---|---|
| Workpiece pallet width(mm) | 160,240,320,400,480,560,640,800,1040,1200 |
| Conveyor length(mm) | 500≤L≤8000 |
| Rated speed(m/min) | 0,6,9,12,15,18 |
| Permitted maximum load(kg) | 150 |
| Permitted maximum surface load(kg/cm) | 0.5 |
| Motor type | Three phase motor |
| Motor mounting location | L(left), R(Right), ML(Middle-Left), MR(middle-Right) |
| Motor mounting angle | 0°,90°,180°,270° |
| Working voltage | 220/380AC |
| Working frequency | 50Hz |
| Motor connection | Terminal box |
Details
PC2 Plastic Chain conveyor Specification:
- Conveyor medium : Accumulated plastic chain
- Pallet width in transport direction /mm: 160, 240, 320, 400, 480, 640, 800 (160≤Bwt≤800)
- Conveyor length /mm :500≤L≤8000
- Nominal speed /(m/min): 6, 9, 12, 15, 18
- Max. Load /kg: 200
- Drive method: 3 phase motor
- Motor mounting method: L, R, M
- Motor mounting direction: 0°, 90°, 180°, 270°
- Voltage /V: 220/380 AC
- Frequency /Hz: 50
- Motor connection: Terminal box
Low-Dust Pallet Conveyor System Enhanced with Plastic Chain Conveyor:
Introducing our innovative Low-Dust Pallet Conveyor System, featuring a specialized Plastic Chain Conveyor designed to minimize dust particles and enhance the cleanliness of your material handling processes. This advanced solution offers a range of benefits tailored to optimize efficiency and maintain a dust-free environment in your facility.
