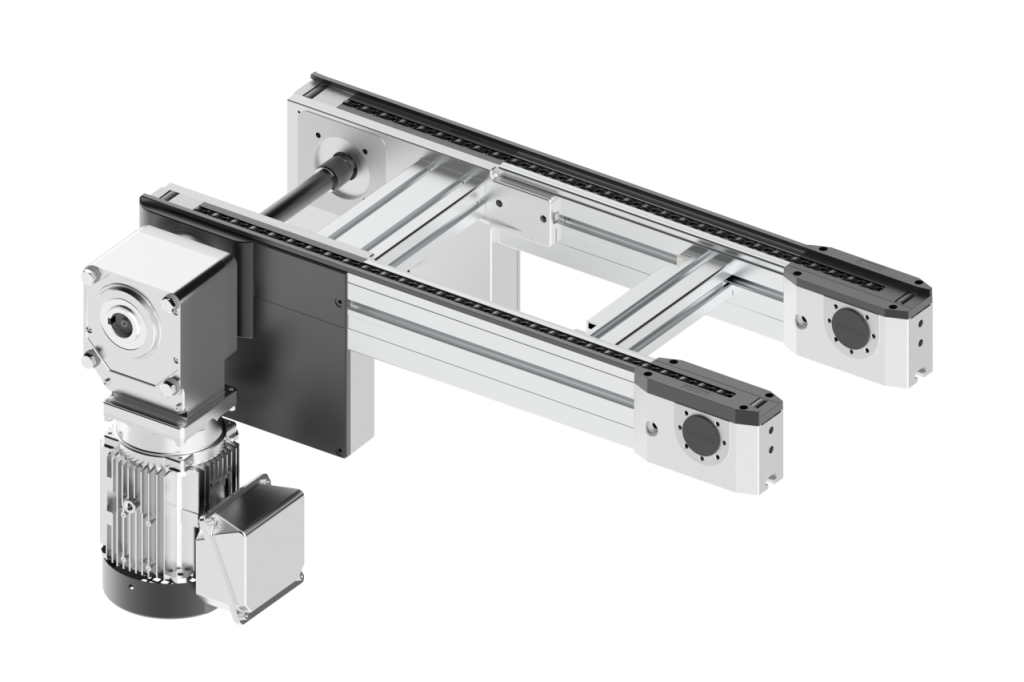

AC2/H Accumulated Chain Conveyor/Roller Chain Conveyor//Free Flow Conveyor
Parameter Specifications
| Conveyor medium | Steel accumulated chain(Default), plastic accumulated chain, steel accumulated chain with cover, plastic accumulated chain with cover |
|---|---|
| Workpiece pallet width(mm) | 160,240,320,400,480,560,640,800,1040,1200 |
| Conveyor length(mm) | 1000≤L≤15000 (Reversible operation possible for L≤2000mm and accumulated chain without cover) |
| Rated speed(m/min) | 0,6,9,12,15,18 |
| Permitted maximum load(kg) | 2200 |
| Permitted maximum surface load | 1.5kg/cm(plastic glide profile), 2.0kg/cm(steel glide profile) |
| Motor type | Three phase motor |
| Motor mounting location | L(left), R(Right), ML(Middle-Left), MR(middle-Right) |
| Motor mounting angle | 0°,90°,180°,270° |
| Working voltage | 220/380AC |
| Working frequency | 50Hz |
| Motor connection | Terminal box |
Details

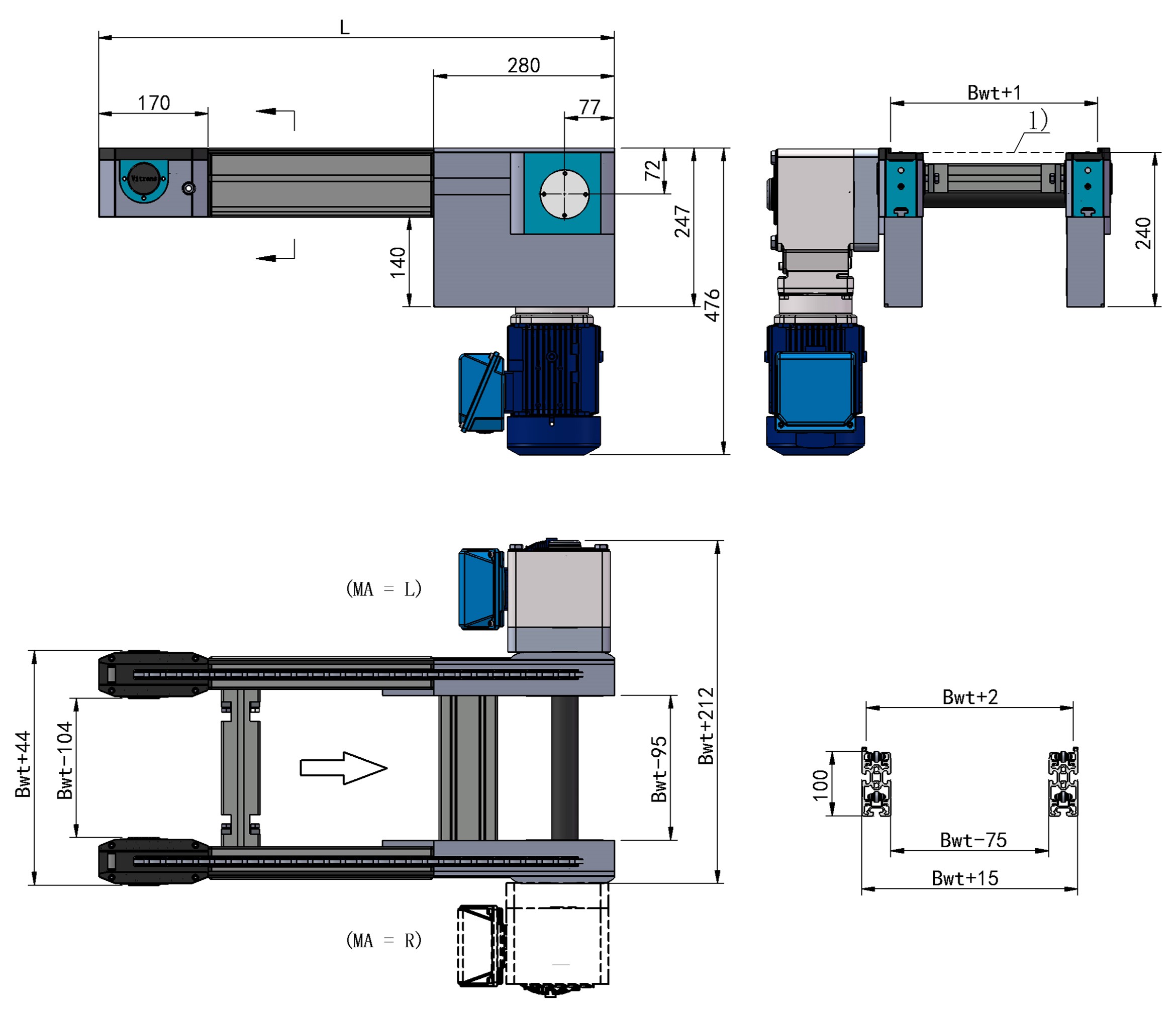

AC2H accumulated Chain conveyor Specification:
- Conveyor medium : Accumulated roller chain
- Pallet width in transport direction /mm: 160, 240, 320, 400, 480, 640, 800 (160≤Bwt≤800)
- Conveyor length /mm :1000≤L≤30000
- Nominal speed /(m/min): 6, 9, 12, 15, 18
- Max. Load /kg: 2200
- Drive method: 3 phase motor
- Motor mounting method: L, R, M
- Motor mounting direction: 0°, 90°, 180°, 270°
- Voltage /V: 220/380 AC
- Frequency /Hz: 50
- Motor connection: Terminal box
Key benefits:
- Precise pallet transport
- Twin chain design for accumulated operating
- Modular design for easy installing
- loading capacity 2KG/CM
- Allowed maximum loading 2200KG
- Allowed maximum conveyor Length 15000mm
Application:

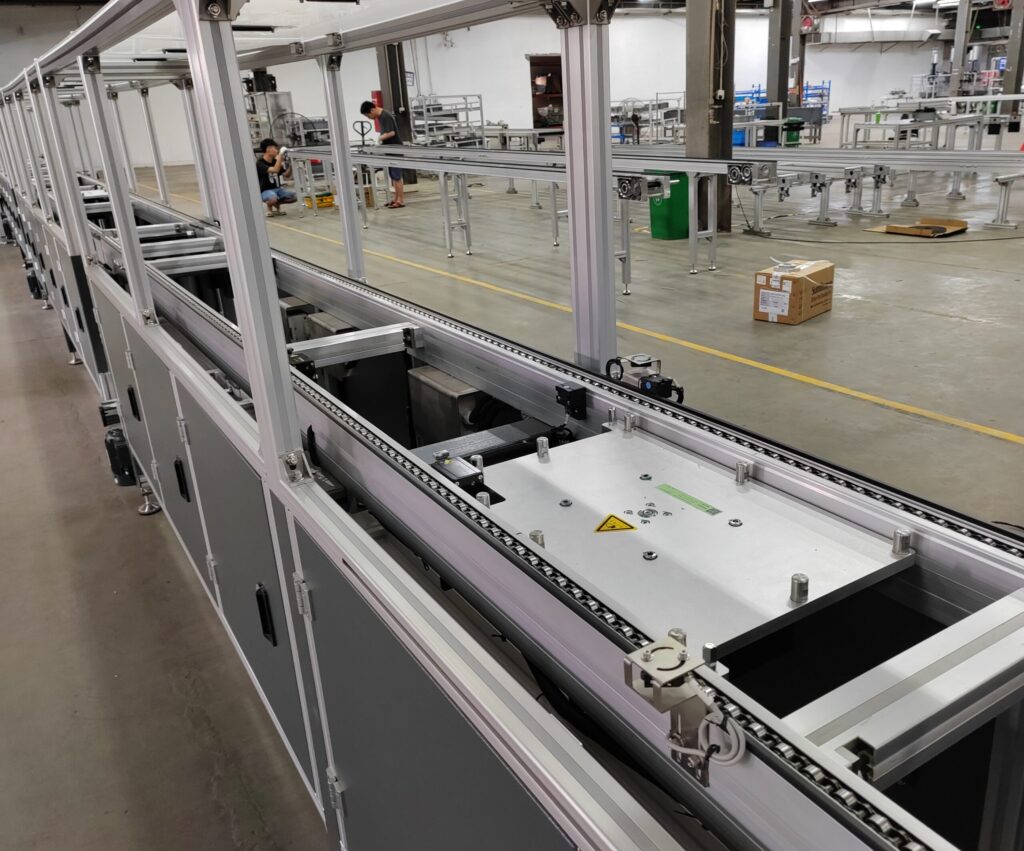

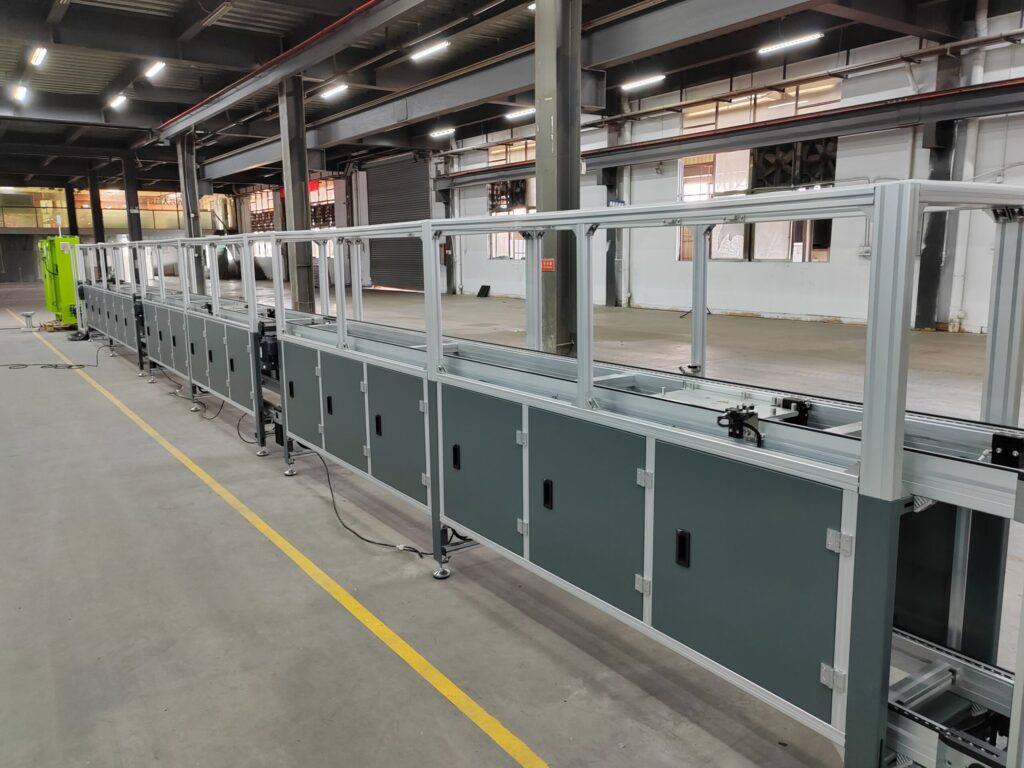

Heavy-Duty Pallet Conveyor System Empowered by Roller Chain Conveyor:
Introducing our robust Pallet Conveyor System, fortified with a Heavy-Duty Roller Chain Conveyor, designed to handle substantial loads and accommodate extended lengths. This powerhouse solution is engineered to enhance efficiency and durability, making it an ideal choice for industries with demanding material handling requirements.
