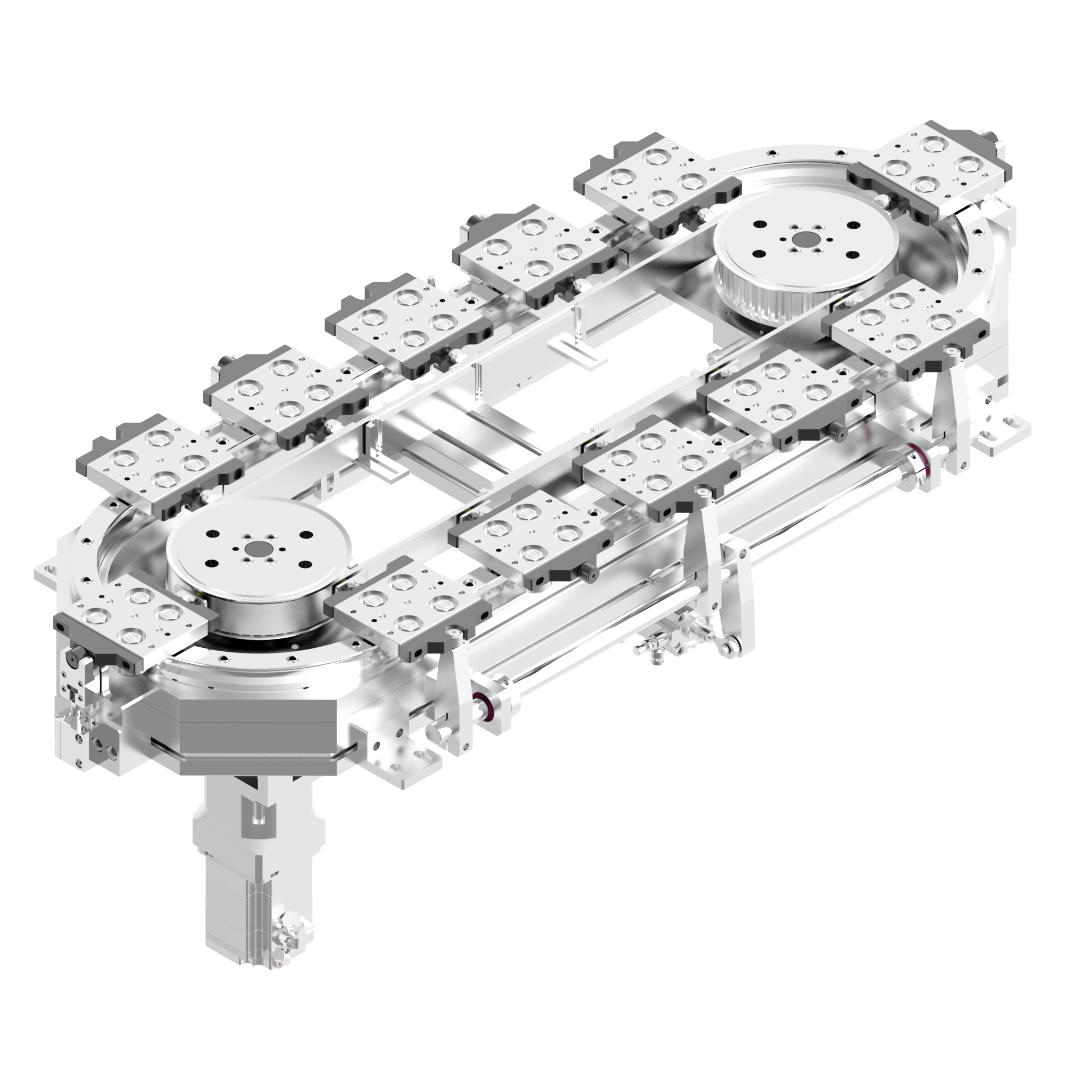

Belt Drive Series
Belt Drive Series
Details

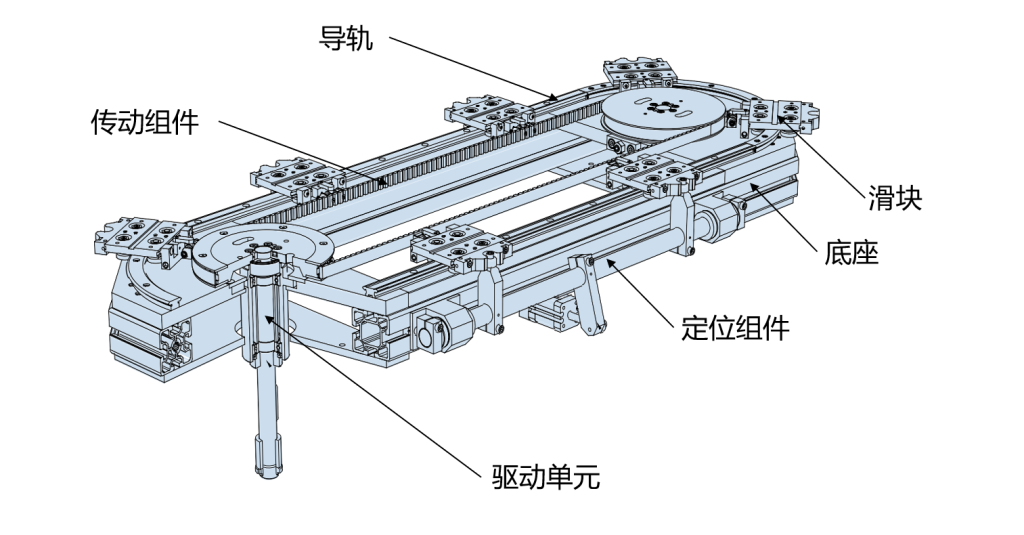

Guide rail Conveyor System
| shape | rectangle/ellipse | ||
| Conveyor medium | belt | chain | linkage rod |
| Conveyor length /m | ≤5m | ≤80m | ≤10m |
| Conveyor width/m | ≤5m | ≤10m | ≤2m |
| diameter | 159-1501mm | 159-1501mm | 159-1501mm |
| Slider spacing | 100-3000mm | 100-3000mm | 100-3000mm |
| travel time | ≥0.8s | ≥0.8s | ≥0.1s |
| Secondary positioning time | ≥0.3s | ≥0.3s | ≥0.3s |
| Load of a single slider/kg | ≤20kg | ≤20kg | ≤20kg |
| Repeat positioning accuracy | ±0.05mm（Positioning mechanism assembly ）
±0.10mm（Without positioning mechanism） | ||

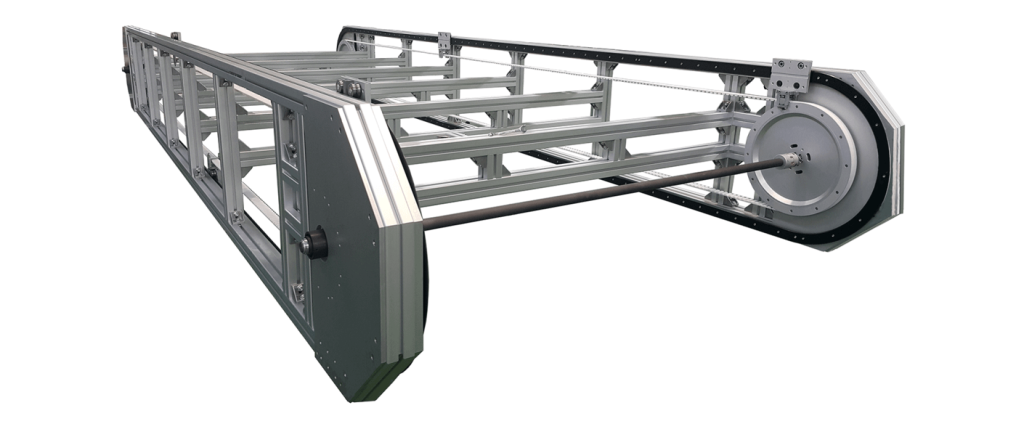

Mount vertically
- Max. Load /kg： ≤15KG
- property： Light load / Dust-free environment
- Applications：Low noise, no oil pollution or dust, maintenance-free, and easy to assemble and debug.

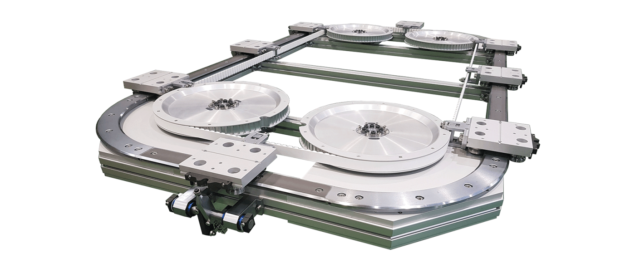

Horizontal installation
- Max. Load /kg： ≤15KG
- property： Light load / Dust-free environment
- Applications：Low noise, no oil pollution or dust, maintenance-free, and easy to assemble and debug.
