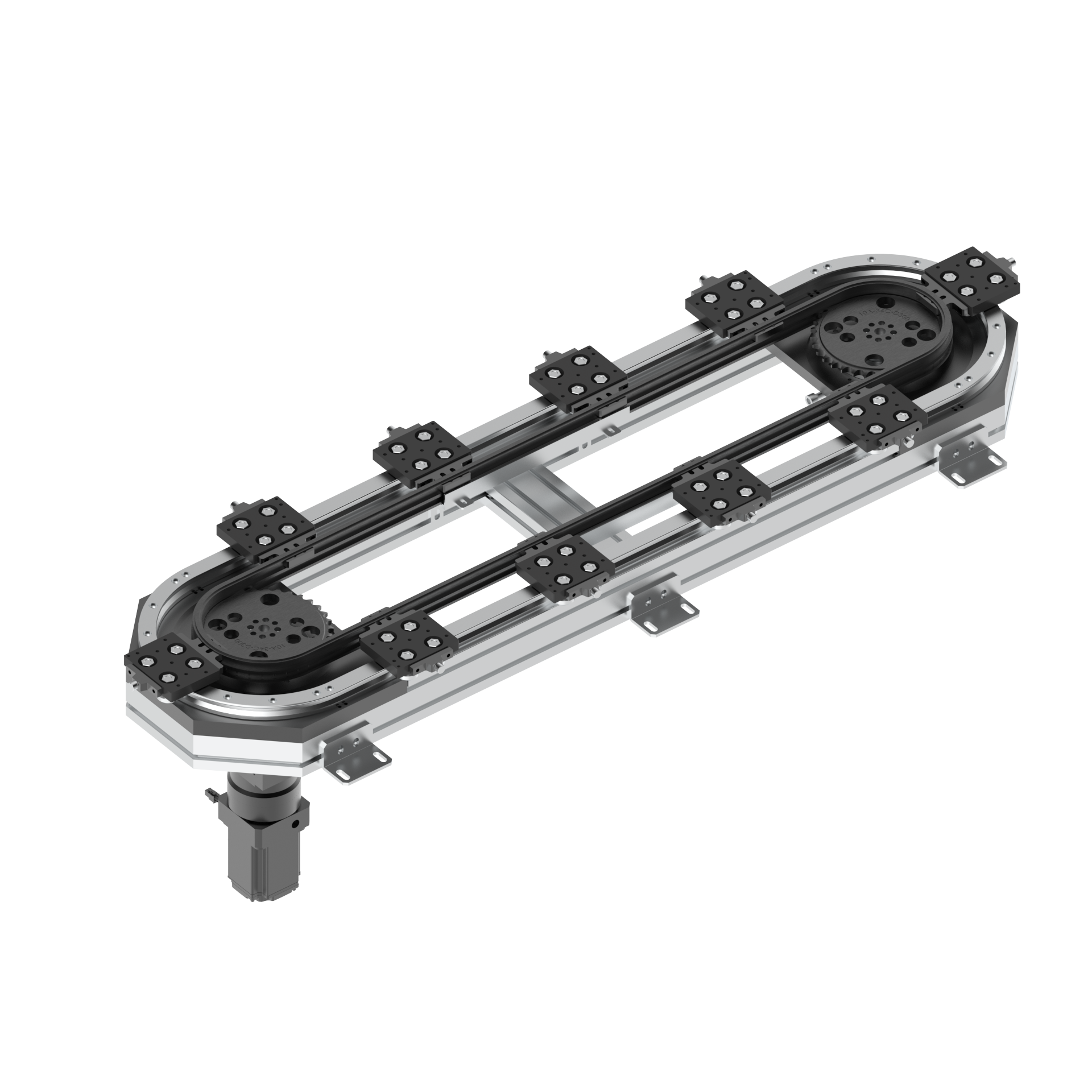

Vertical Installation – Chain – Ring Guide Conveyor System
  • Max. Load /kg： ≤50KG
  • property： High load / Large spacing / Long thread
  • Applications：Withstand heavy loads, sectional disassembly for easy maintenance, unrestricted length.

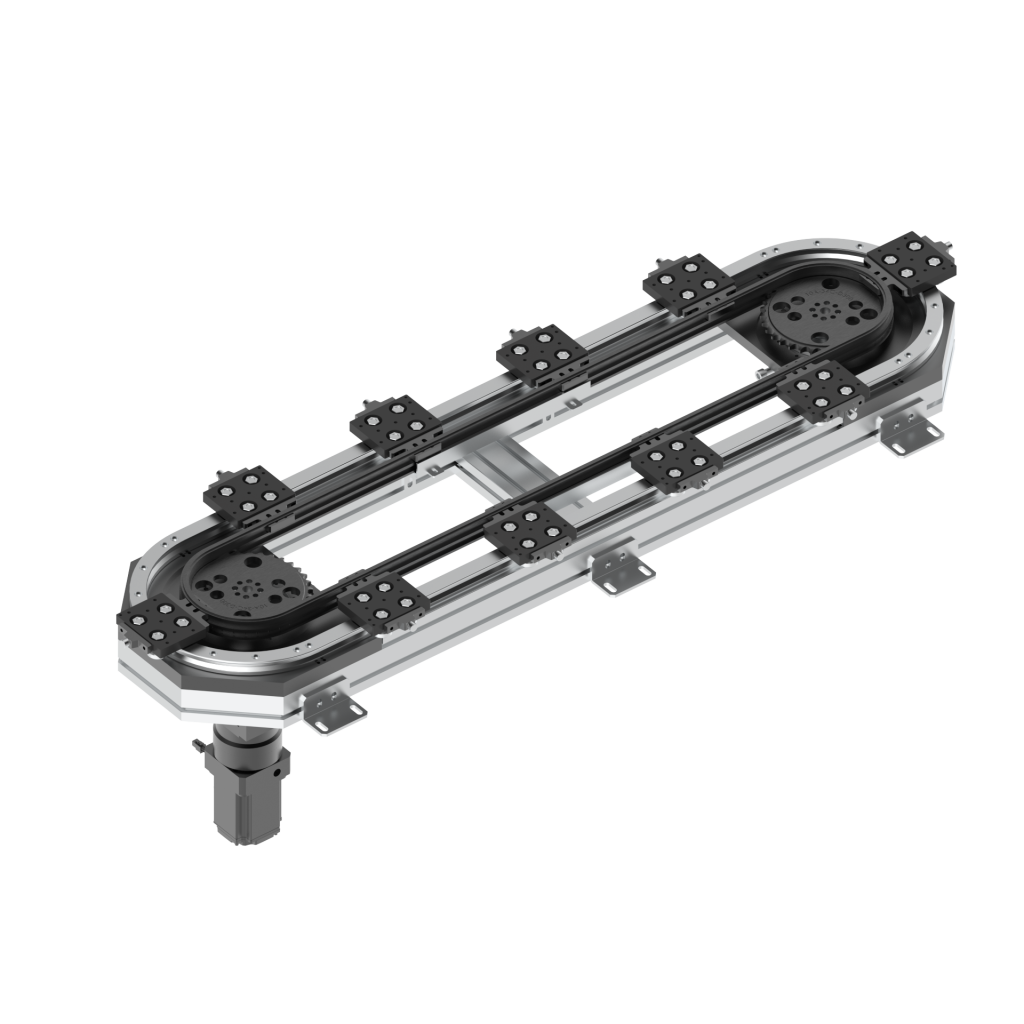

Horizontally installed – Chain type – Circular guide rail conveying system
  • Max. Load /kg： ≤50KG
  • property： High load / Large spacing / Long threadt
  • Applications：Withstand heavy loads, sectional disassembly for easy maintenance, unrestricted length.

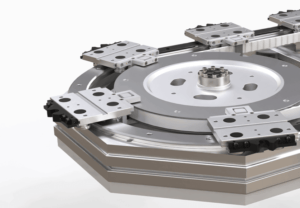

Guide rail Conveyor System

shaperectangle/ellipse
Conveyor mediumbeltchainlinkage rod
Conveyor length /m≤5m≤80m≤10m
Conveyor width/m≤5m≤10m≤2m
diameter159-1501mm159-1501mm159-1501mm
Slider spacing100-3000mm100-3000mm100-3000mm
travel time≥0.8s≥0.8s≥0.1s
Secondary positioning time≥0.3s≥0.3s≥0.3s
Load of a single slider/kg≤20kg≤20kg≤20kg
Repeat positioning accuracy±0.05mm（Positioning mechanism assembly ）



±0.10mm（Without positioning mechanism）
