PU Lift and locate unit | Pallet Positioning Unit | Lift and Locate
Lift and locate unit can lift the workpiece pallet up to leave the conveyor medium, and precisely locate the workpiece pallet.
Parameter Specifications
| Workpiece pallet width(mm) | 160,240,320,400,480,560,640 |
|---|---|
| Workpiece pallet length(mm) | 160,240,320,400,480,560,640 |
| Combination options(mm) | 160 x 160、240、320 |
| Combination options(mm) | 240 x 160、240、320、400、480 |
| Combination options(mm) | 320 x 160、240、320、400、480、560、640 |
| Combination options(mm) | 400 x 240、320、400、480、560、640 |
| Combination options(mm) | 480 x 320、400、480、560、640 |
| Combination options(mm) | 560 x 320、400、480、560、640 |
| Combination options(mm) | 640 x 320、400、480、560、640 |
| Permitted maximum load(kg) | 30(Support customization) |
| Repeat accuracy(mm) | ±0.1 |
| Lift height(above conveying level)(mm) | 2.5(Support customization) |
| Cylinder bore diameter(mm) | 32 / 40 / 50 (depends on short edge length) |
| Adapted conveyor type | BC2/AC2/PC2 |
Details

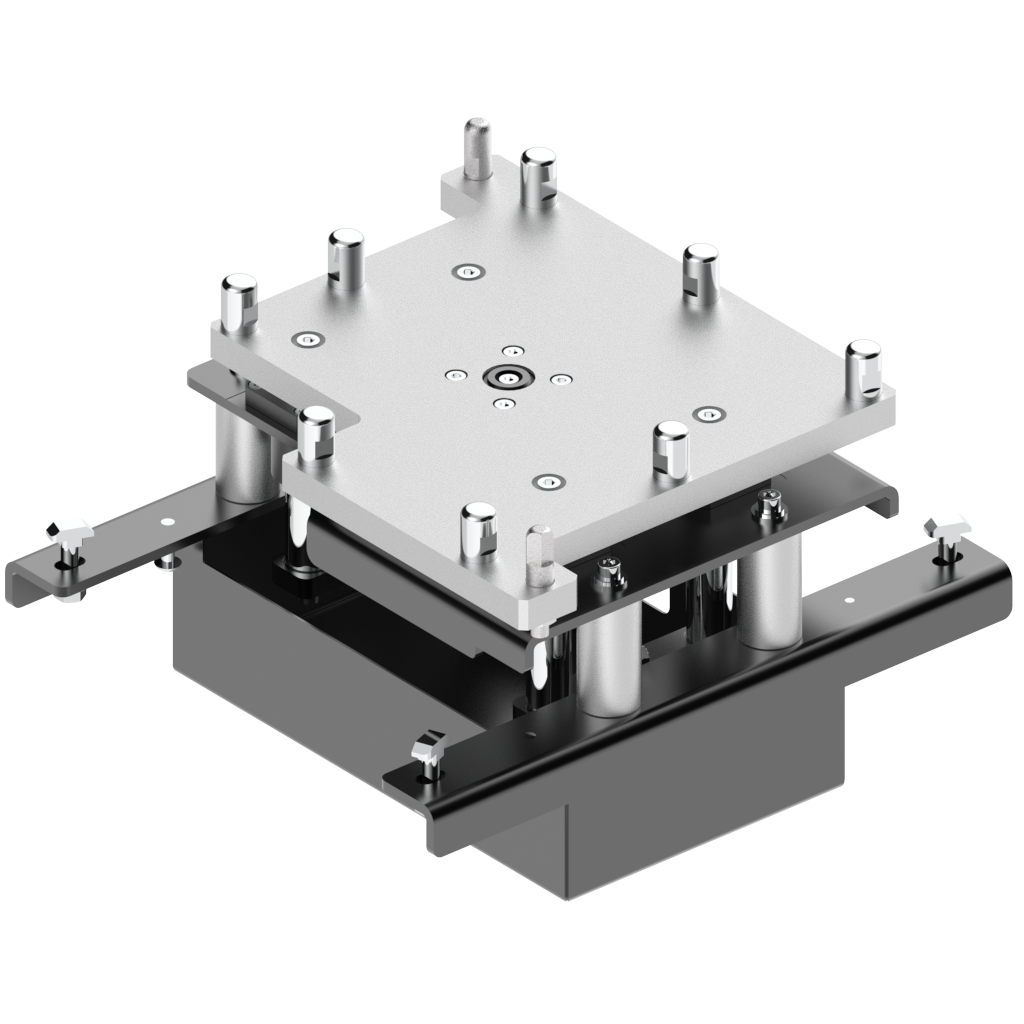

PU2 Pallet positioning unit
- Pallet width in transport direction /mm:t160, 240, 320, 400, 480, 640, 800 (160u2264Bwtu2264800)
- Pallet length in transport direction /mm:t160, 240, 320, 400, 480, 640, 800 (160u2264Bwtu2264800)
- Allowed max.Loading /KG:30 or customized
- Lifting height :2.5mm or Customized
- Lifting drive :Cylinder
- Positioning precision : u00b10.1mm
- magnatic switches :Including
- solenoid valve :excluding
How to locate the product for machine operating in Pallet Conveyor Systems
lift and locate unit is a mechanism used to position pallets. When the production process is performed by machines or robotic arms, it requires all workpieces to be accurately positioned, otherwise it may lead to operational errors
