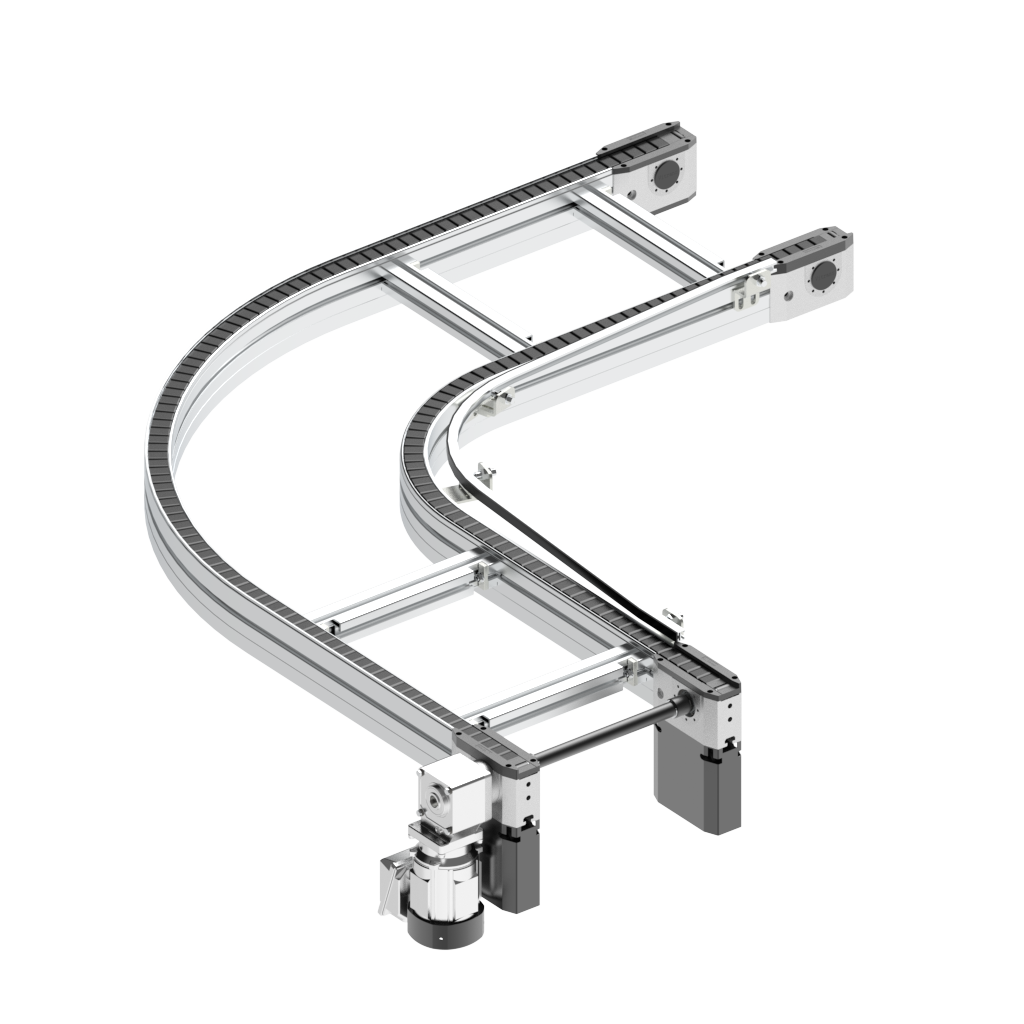

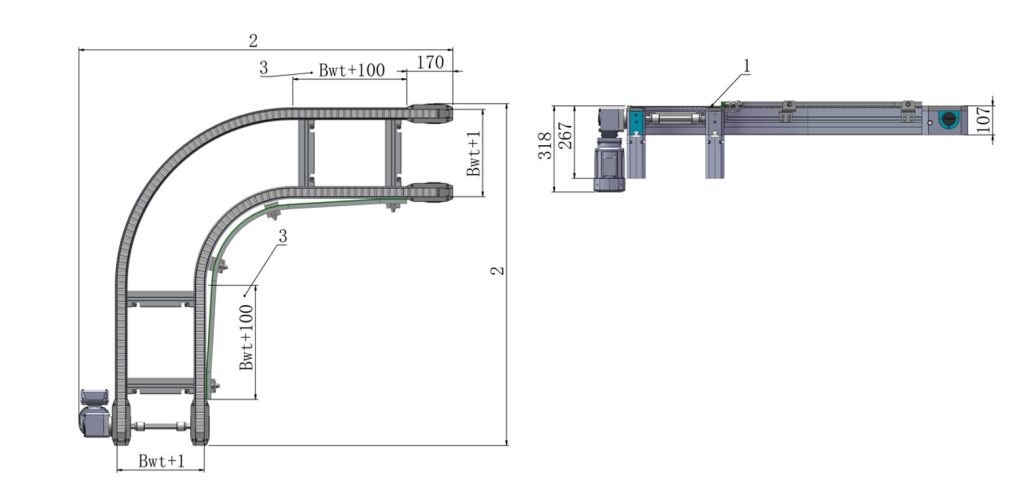

CV2/90 Flat top chain conveyor curve Specification:
- Conveyor medium : Accumulated Flat Top Chain
- Pallet width in transport direction /mm: 160, 240, 320, 400, 480, 640, 800 (160≤Bwt≤800)
- Pallet length in transport direction /mm: 160, 240, 320, 400, 480, 640, 800 (160≤Bwt≤800)
- Nominal speed /(m/min): 6, 9, 12, 15, 18
- Max. Load /kg:90
- Drive method: 3 phase motor
- Motor mounting method: L, R, M
- Motor mounting direction: 0°, 90°, 180°, 270°
- Voltage /V: 220/380 AC
- Frequency /Hz: 50
- Motor connection: Terminal box
Key benefits:
- Wear resistant flat top chain, long service life
- loading capacity 1KG/CM
- suitable for pallet size bigger than 400mm
- Allowed accumulating, No affect to cycle time
- Easy maintaining，low dust
- Modular design for quick installing
- Low noise during operating
The Flat Top Chain conveyor Curve in Pallet Conveyor Systems
Space Optimization:
Efficient use of floor space is a constant challenge in industrial settings. The Flat Top Chain Conveyor Curve rises to this challenge with its compact design. By executing smooth turns with a minimal turning radius, it not only conserves space but also opens up new possibilities for layout design. This spatial optimization is a game-changer in facilities where every square meter counts.
High Load Capacity:
One of the primary advantages of the Flat Top Chain Conveyor Curve is its exceptional load-carrying capacity. Built to handle heavy loads with ease, this conveyor curve ensures that the production line can accommodate a diverse range of materials, contributing to the versatility and adaptability of the overall Conveyor System.
Allowance for Pallet Stacking:
In the dynamic realm of Pallet Handling, the Flat Top Chain Conveyor Curve introduces a unique capability – the allowance for pallet stacking operations. This feature facilitates efficient use of vertical space, enabling the stacking of pallets for storage or specific processing needs. The ability to handle stacked pallets further enhances the Conveyor system‘s throughput and flexibility.
