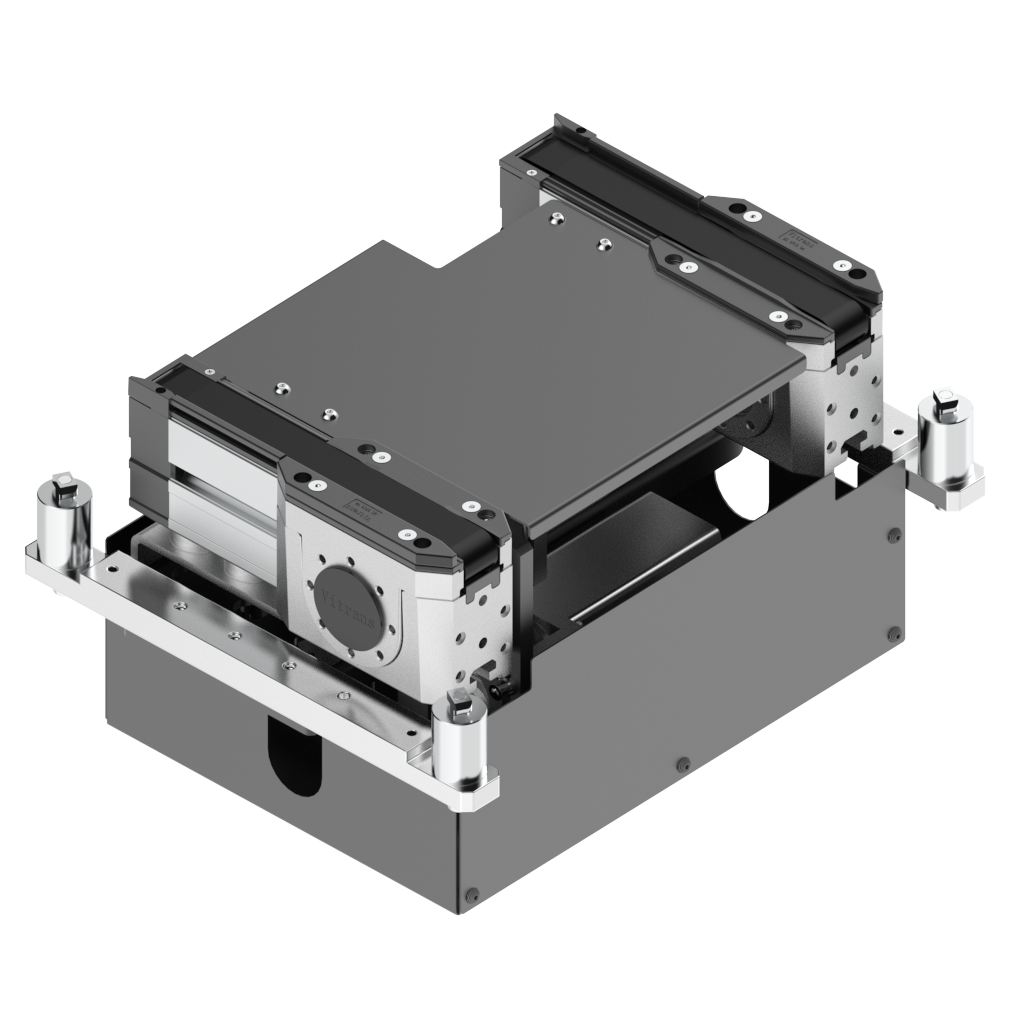

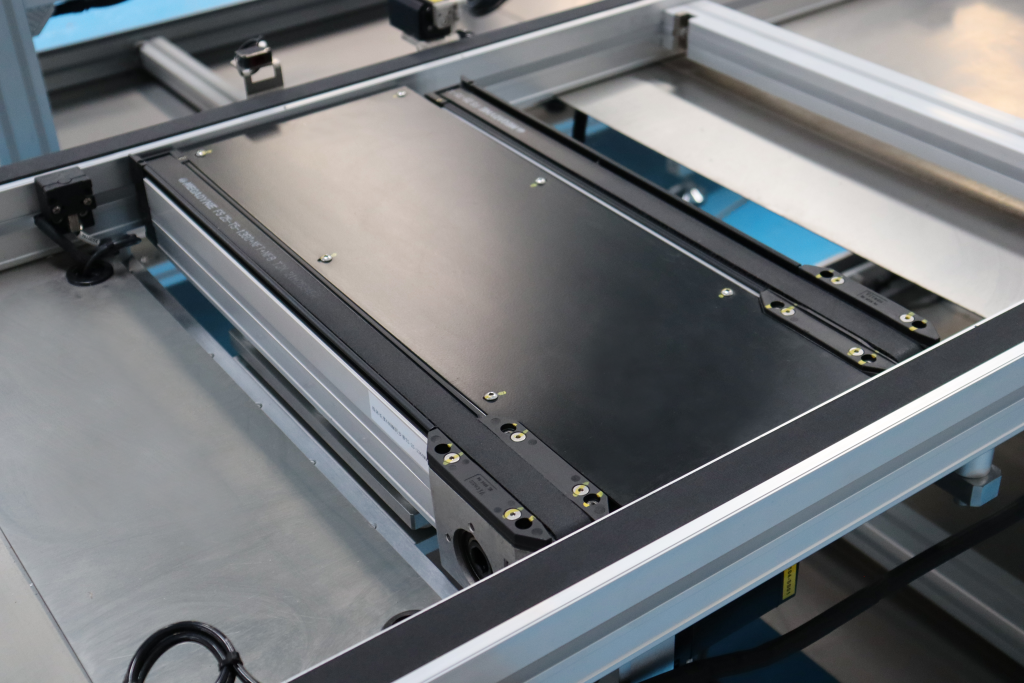

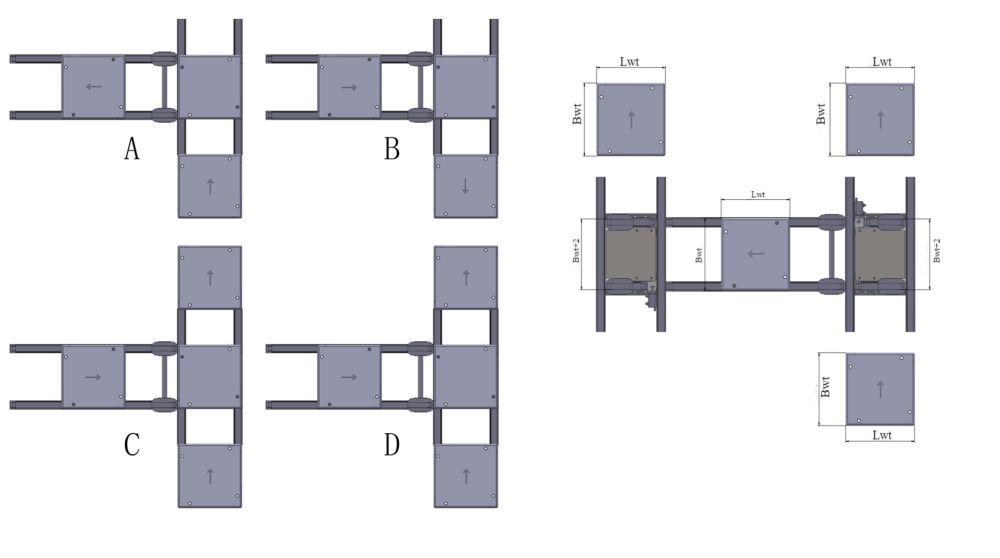

ET2/B Lift and Transfer Unit
Parameter Specifications
| Conveyor medium | Timing belt |
|---|---|
| Workpiece pallet width(mm) | 160,240,320,400,480,560,640 |
| Workpiece pallet length(mm) | 240,320,400,480,560,640 |
| Combination options(mm) | 160 x 240、320 |
| Combination options(mm) | 240 x 240、320、400、480 |
| Combination options(mm) | 320 x 240、320、400、480、560、640 |
| Combination options(mm) | 400 x 240、320、400、480、560、640 |
| Combination options(mm) | 480 x 240、320、400、480、560、640 |
| Combination options(mm) | 560 x 320、400、480、560、640 |
| Combination options(mm) | 640 x 320、400、480、560、640 |
| Lift cylinder bore diameter(mm) | 40 / 50 (50mm while Lwt>240mm) |
| Motor type | Stepper motor |
| Stepper drive | I/O Type |
| Working voltage | 48V DC |
| Rated current | 3.8A |
| Permitted maximum load | 30kg |
| Lift height | 10mm |

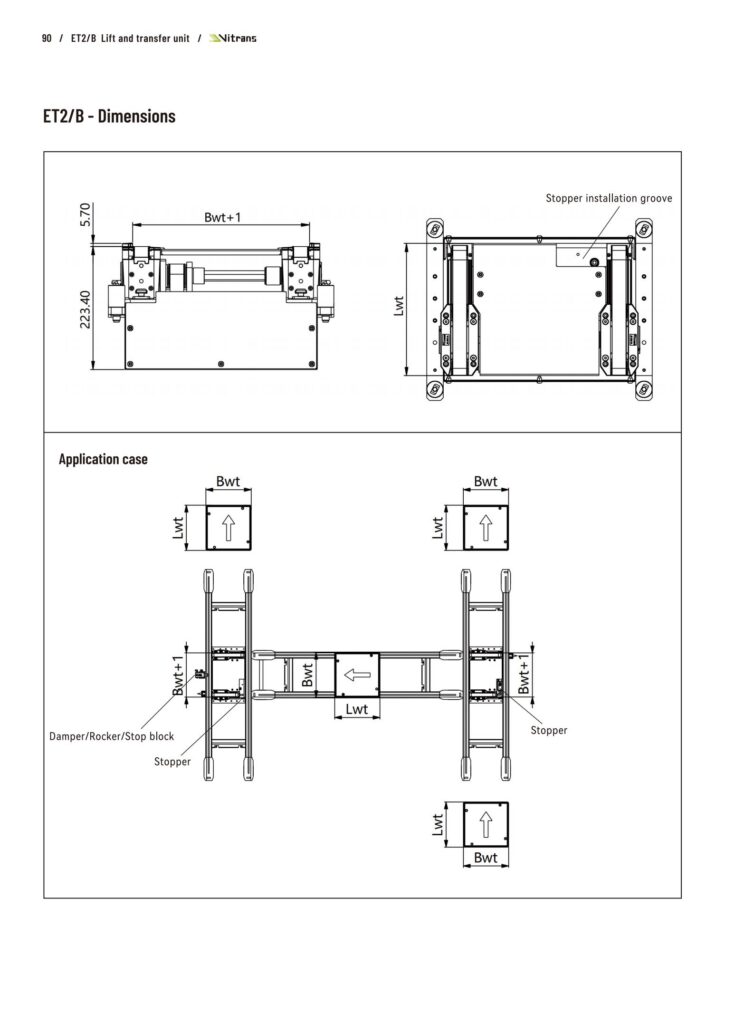

Details
ET2/B Lift and Transfer Unit Specification:
- Transfer medium : Timing belt or double chain
- Pallet width in transport direction /mm: 160, 240, 320, 400, 480, 640, 800 (160≤Bwt≤800)
- Pallet length in transport direction /mm: 160, 240, 320, 400, 480, 640, 800 (160≤Bwt≤800)
- Lifting drive :Cylinder
- Transfer drive :Stepper motor
- Nominal speed /(m/min): 6, 9, 12, 15, 18
- Max. Load /kg: 30 or customized
- Input Voltage: 48VDC/3.8A
Key benefits:
- Wear resistant belt, accumulating is not allowed
- Easy maintaining，low dust
- Modular design for quick installing
- Low noise during operating
Allowed reverse operating
compact size for space saving

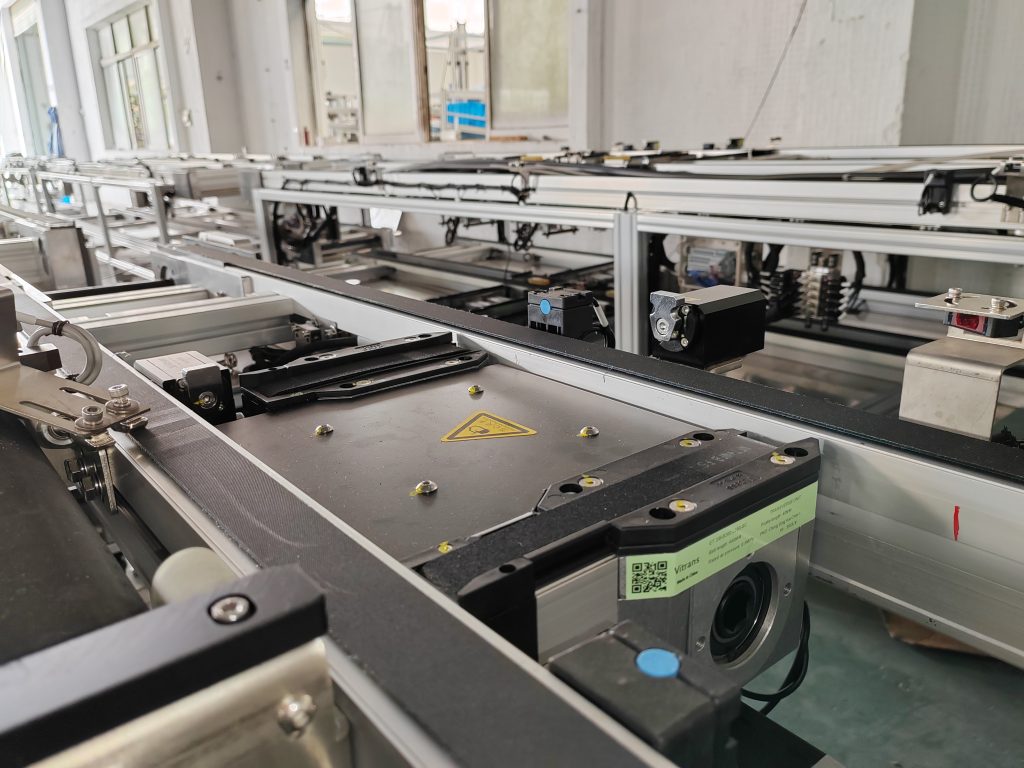

Applications:
- Belt conveyor system
- Chain conveyor system
The Modular Transverse Conveyor and Belt conveyor system
In the dynamic landscape of automated conveyance, Vitrans takes the lead with its cutting-edge Modular Transverse Conveyor for Pallet Handling System Solutions and Belt Conveyor System. Tailored for various industrial applications, this state-of-the-art system seamlessly integrates into assembly lines, factories, and production facilities, offering unparalleled efficiency.
