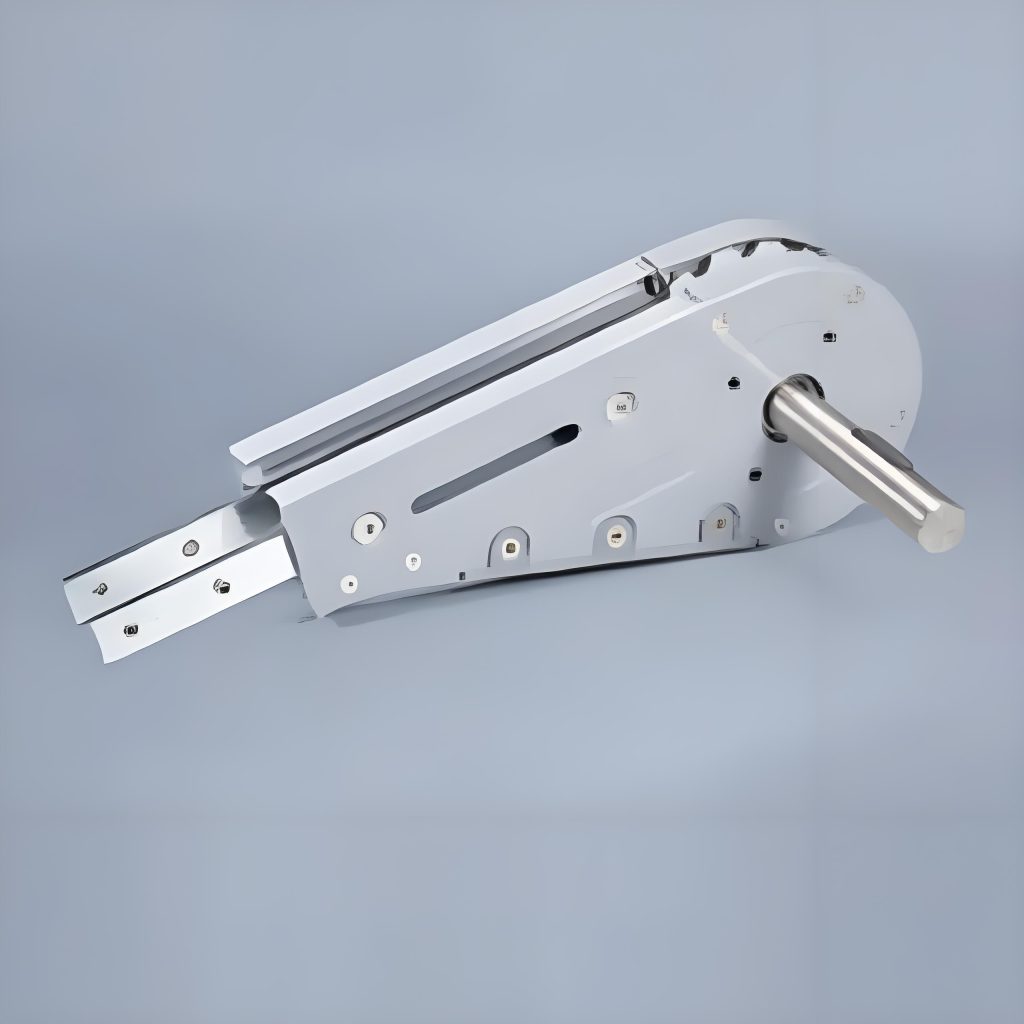

Fully Enclosed Drive Unit
Message
Categories
Drive and Return unit
,
Flexible Chain Conveyors
,
vitrans conveyor
Home
/
vitrans conveyor
/
Flexible Chain Conveyors
/ Fully Enclosed Drive Unit
Details
Fully Enclosed Drive Unit Specification:
Adapt flexible chain size :
43mm,63mm,83mm,103mm,140mm,175mm,295mm
Material :
tAlloy-ADC12
Optional motor power :
t200W/250W/370W/750W
Optional speed:t
6,9,12,15,18,21,27,33,40,50 (m/min)
Maximum pull force:
t1250N
Key benefits:
The motor can be installed on the left or right side and can be flexibly adjusted
Compact design, easy to install and disassemble
Low operating noise (uff1c30dB)
Side slot design for support mounting
Model :
KF-S-45Q
Body Material :
tAlloy-ADC12
Adapt Chain Width/mm :
43
Model :
KF-L-65Q
Body Material :
tAlloy-ADC12
Adapt Chain Width/mm :
63
Model :
KF-M-85Q
Body Material :
tAlloy-ADC12
Adapt Chain Width/mm :
83
Model :
KF-H-105Q
Body Material :
tAlloy-ADC12
Adapt Chain Width/mm :
103
Model :
KF-B-145Q
Body Material :
tAlloy-ADC12
Adapt Chain Width/mm :
140
Model :
KF-B-180Q
Body Material :
tAlloy-ADC12
Adapt Chain Width/mm :
175
Model :
KF-B-300Q
Body Material :
tAlloy-ADC12
Adapt Chain Width/mm :
295
