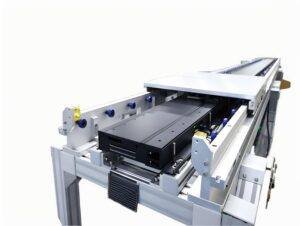

FVT2 – High-thrust Magnetic Drive Conveying System

FVT2 – High-thrust Magnetic Drive Conveying System

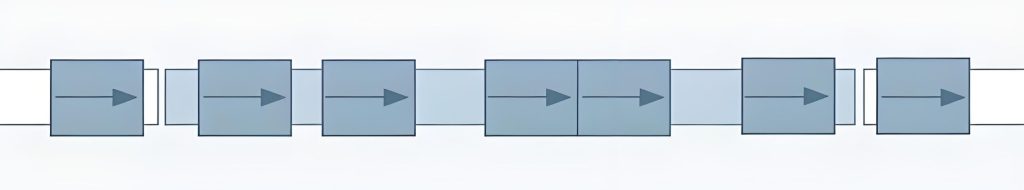

Linear conveying

(can be used in combination with other types of conveying systems)

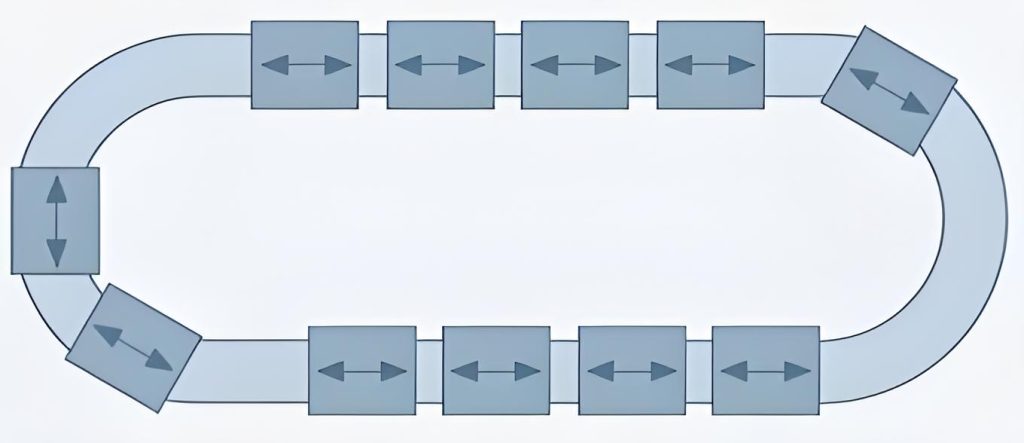

Circular track conveying

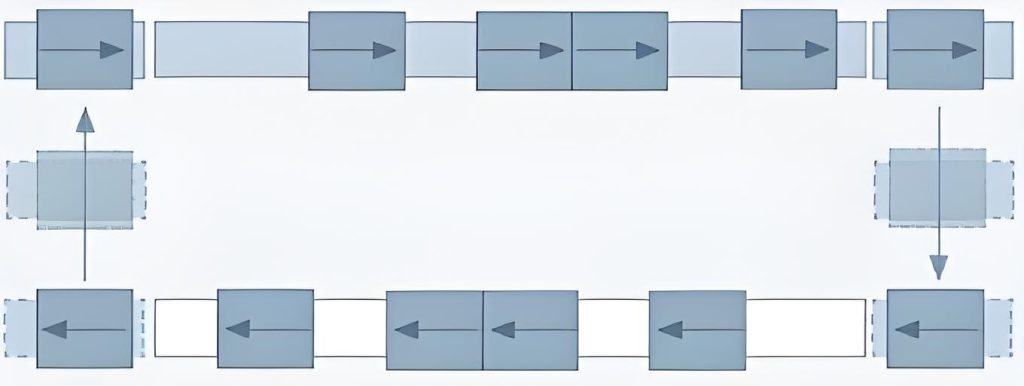

X-Y/Z conveying

(It can be used in combination with other types of conveying systems in the reflux section)



好处

  • Open path, linear splicing, high degree of freedom
  • It can be designed in various configurations such as horizontal structure, vertical structure, and belt hybrid structure. It also supports the addition of branches.
  • More combinations of coils and movers are suitable for high-load application scenarios.
  • It can be combined with V-shaped guides, T-shaped guides, ball guides, or roller guides to achieve ultra-large load conveying.
  • It can be used in combination with belt conveyors or double-speed chain conveyors to achieve a more cost-effective conveying solution.

FVT2 - High-thrust Magnetic Drive Conveying System

  • Continuous thrust : 800N
  • Maximum thrust : 3700N（Water cooling） 2400N（Natural cooling）
  • Max. Load /kg : 300kg
  • Nominal speed /(m/min):1.8m/s
  • Maximum acceleration : 1G
  • The minimum center distance of the movers : /
  • Repeatability accuracy : ±0.01mm
