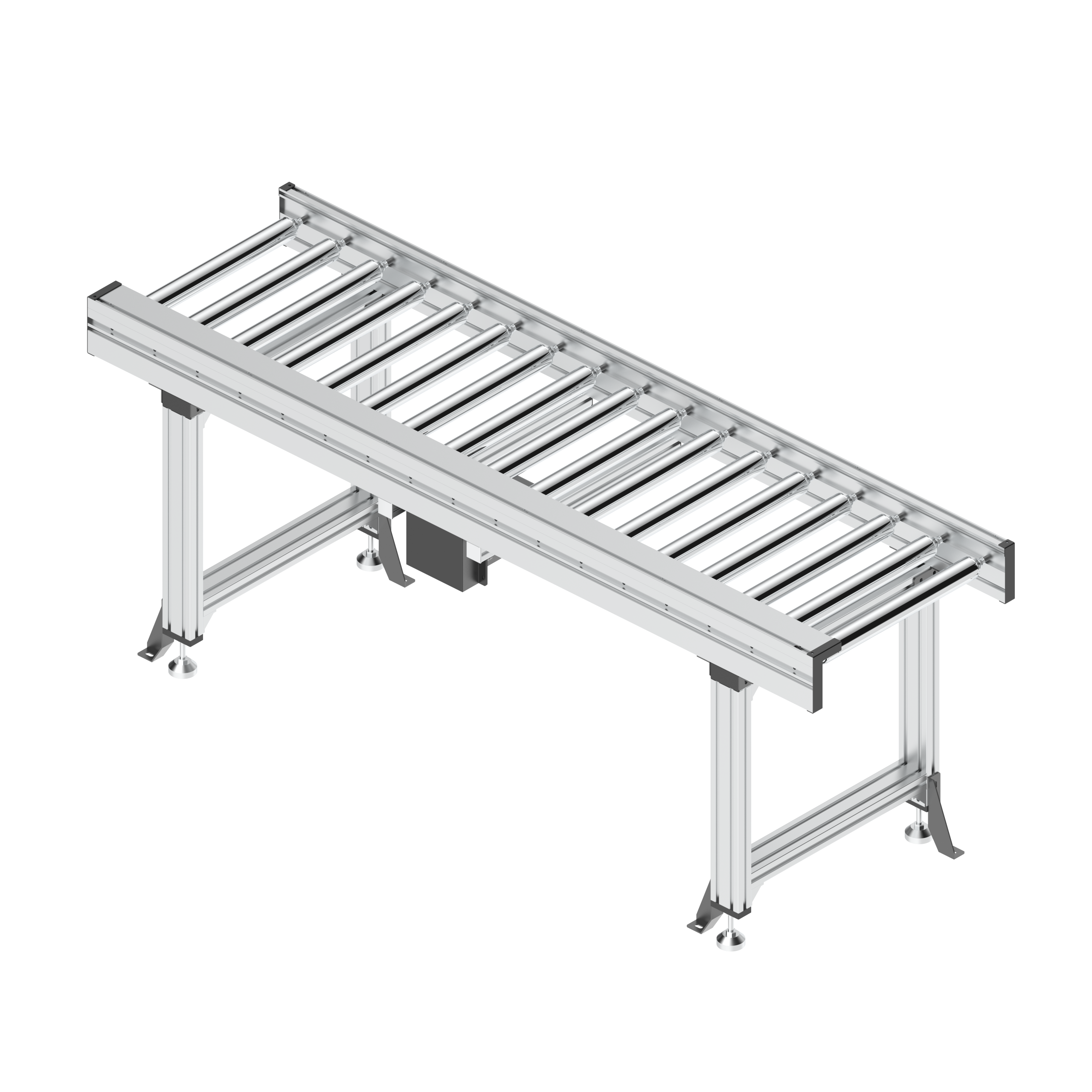

Light duty roller Conveyor
Light duty roller Conveyor
Details
SG/D-60 pneumatic dampened Stopper Specification:
- Model No.: RC/C
- Brand: Vitrans
- Applicable Industry: Manufacturing Plant, Other
- Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts
- Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): United States, Viet Nam, India, Mexico, Malaysia
- Showroom Location (in Which Countries Are There Sample Rooms Overseas): None
- Material: Stainless Steel
- Structure: Conveyor System
- Power (Watts): 200w, Other
- Warranty Period: 1 Year
- Mechanical Test Report: Provided
- Video Factory Inspection: Provided
- Marketing Type: Other
- Core Component Warranty Period: 1 Year
- Conveyor Width: 120mm to 1000mm
- Conveyor Length: 600mm to 6000mm
- Conveyor Loading: Customized

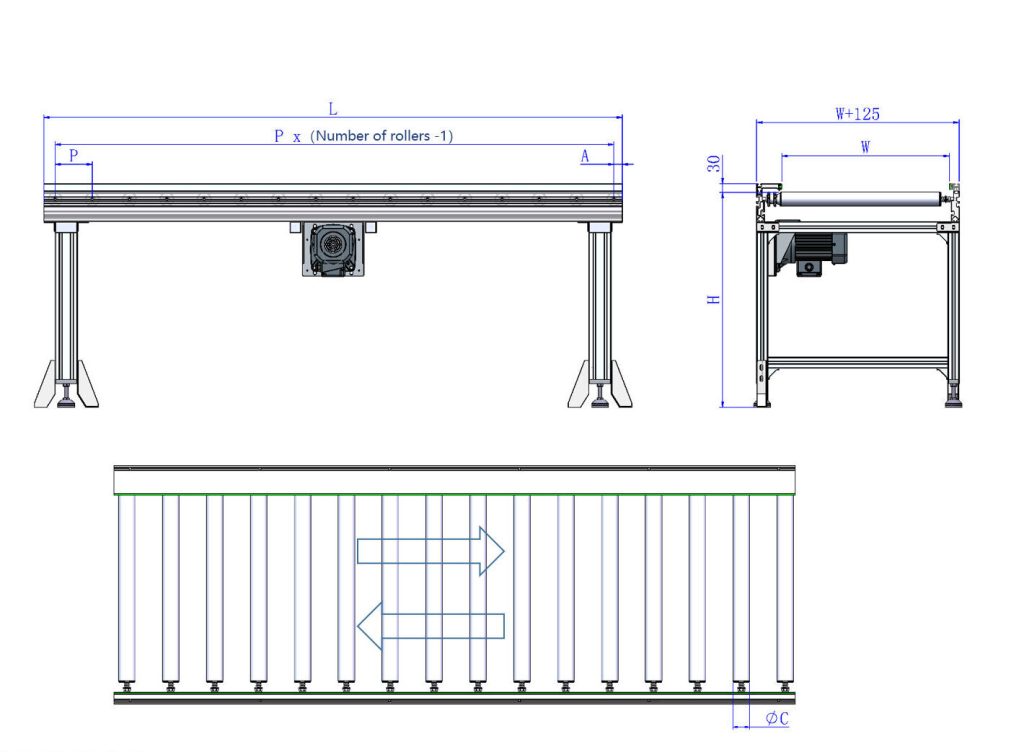

Roller conveyor Specification:
- Conveyor medium : Standard roller/ Accumulation roller
- Roller material: Plastic (PL) / Carbon steel chrome plated (CP) / Stainless steel (SS) / Rubber coated (RU)
- Conveying width /mm : 120 ≤ W ≤ 1000
- Conveyor line length /mm: 600 ≤ L ≤ 5900
Full load operating speed (m/min): Vmax=20m/min
Maximum allowable load (kg/m): 300( φC ≥ φ60)
Maximum allowable load per single roller (kg): 30
Drive type: Indirect drive
Voltage /V: 220/380 AC
Frequency /Hz: 50
Motor connection: Terminal box
Key benefits:
Simple structure, high reliability, easy to assemble and disassemble, and easy to maintain
High load capacity and capable of withstanding significant impact loads
Capable of accumulation function with adjustable accumulation force
Capable of forward and reverse rotation
Supports accumulation operation
The frame is constructed from high-strength aluminum profiles with standard slots, enabling quick connection to other equipment or installation of additional accessories ( sensors, brackets, etc. )
Supports non-standard customization
