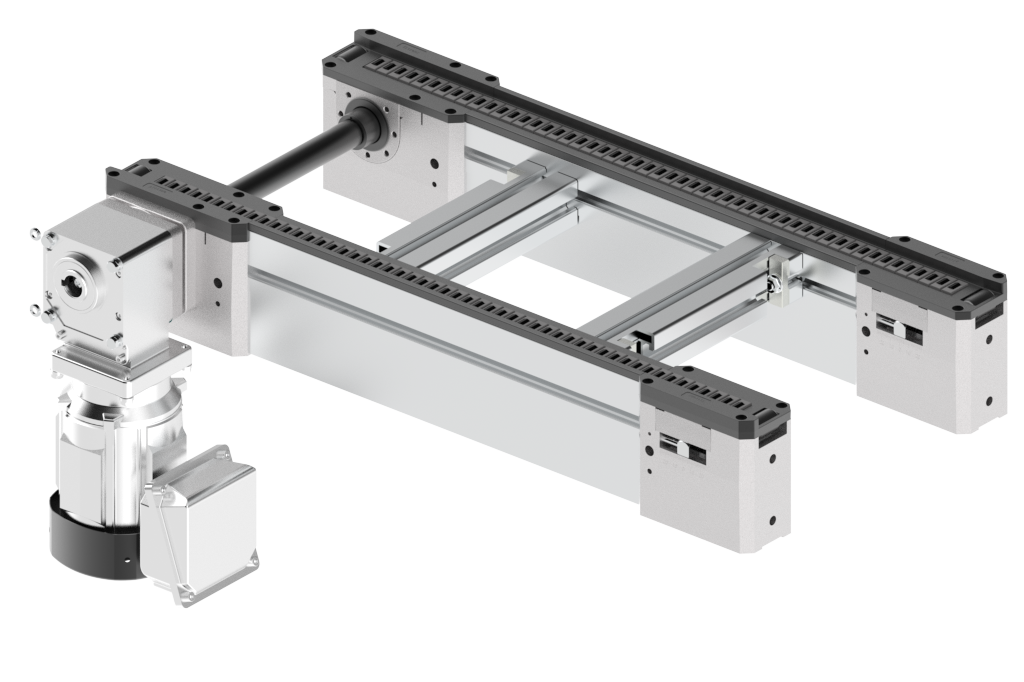

PC2 Plastic Chain Pallet Conveyor/Free Flow Conveyor
Details

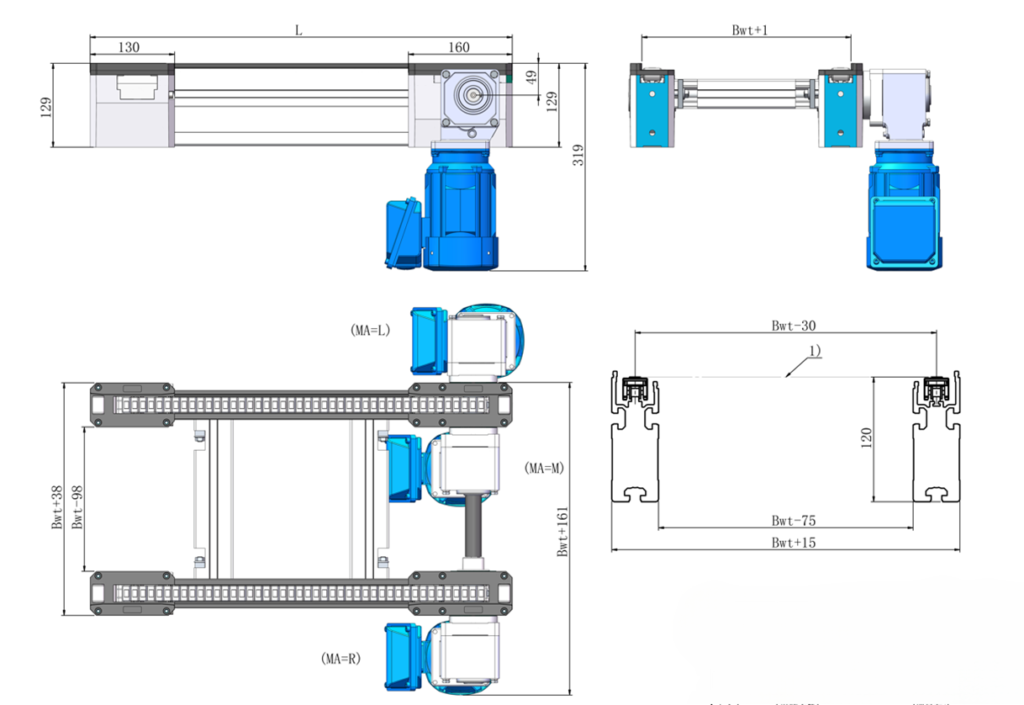

PC2 Plastic Chain conveyor Specification:
- Conveyor medium : Accumulated plastic chain
- Pallet width in transport direction /mm: 160, 240, 320, 400, 480, 640, 800 (160≤Bwt≤800)
- Conveyor length /mm :500≤L≤8000
- Nominal speed /(m/min): 6, 9, 12, 15, 18
- Max. Load /kg: 200
- Drive method: 3 phase motor
- Motor mounting method: L, R, M
- Motor mounting direction: 0°, 90°, 180°, 270°
- Voltage /V: 220/380 AC
- Frequency /Hz: 50
- Motor connection: Terminal box
Low-Dust Pallet Conveyor System Enhanced with Plastic Chain Conveyor:
Introducing our innovative Low-Dust Pallet Conveyor System, featuring a specialized Plastic Chain Conveyor designed to minimize dust particles and enhance the cleanliness of your material handling processes. This advanced solution offers a range of benefits tailored to optimize efficiency and maintain a dust-free environment in your facility.
