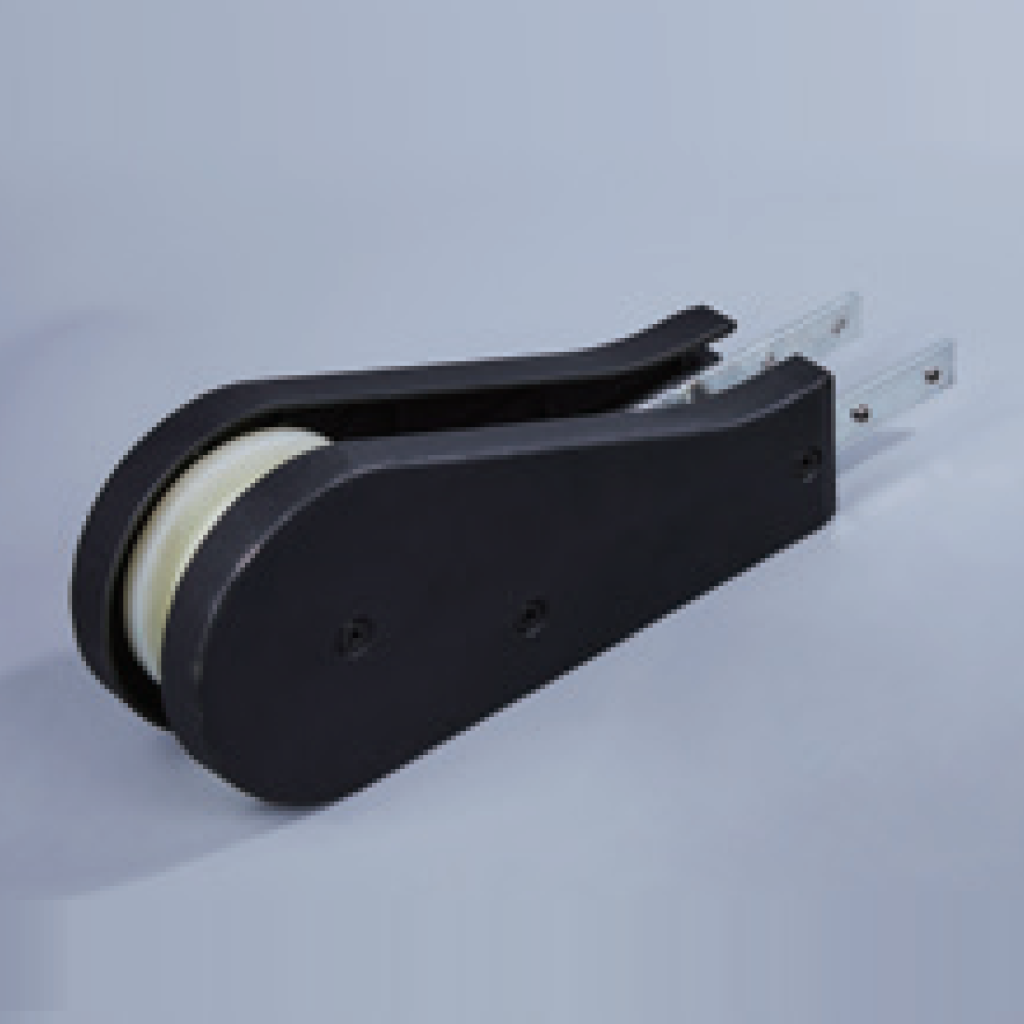

Plastic return unit

Message
Categories Drive and Return unit, Flexible Chain Conveyors, vitrans conveyor
Home / vitrans conveyor / Flexible Chain Conveyors / Plastic return unit

Details

Plastic return unit specification:

  • Adapt flexible chain size :43mm,63mm,83mm,103mm
  • Material :PA6+Gf30%
  • Optional motor power :t200W/250W/370W/750W
  • Optional speed:t6,9,12,15,18,21,27,33,40,50 (m/min)
  • Maximum pull force:t1250N

Key benefits:

  • Compact design, easy to install and disassemble
  • Low operating noise (uff1c30dB)
  • Side slot design for support mounting
  • Model :KF-S-43
  • Body Material :tPA6+Gf30%
  • Adapt Chain Width/mm :43
  • Model :KF-S-43(Extension)
  • Body Material :PA6+Gf30%
  • Adapt Chain Width/mm :43
  • Model :KF-L-63
  • Body Material :PA6+Gf30%
  • Adapt Chain Width/mm :63
  • Model :KF-L-63(Extension)
  • Body Material :PA6+Gf30%
  • Adapt Chain Width/mm :63
  • Model :KF-M-83
  • Body Material :PA6+Gf30%
  • Adapt Chain Width/mm :83
  • Model :KF-H-103
  • Body Material :PA6+Gf30%
  • Adapt Chain Width/mm :103
