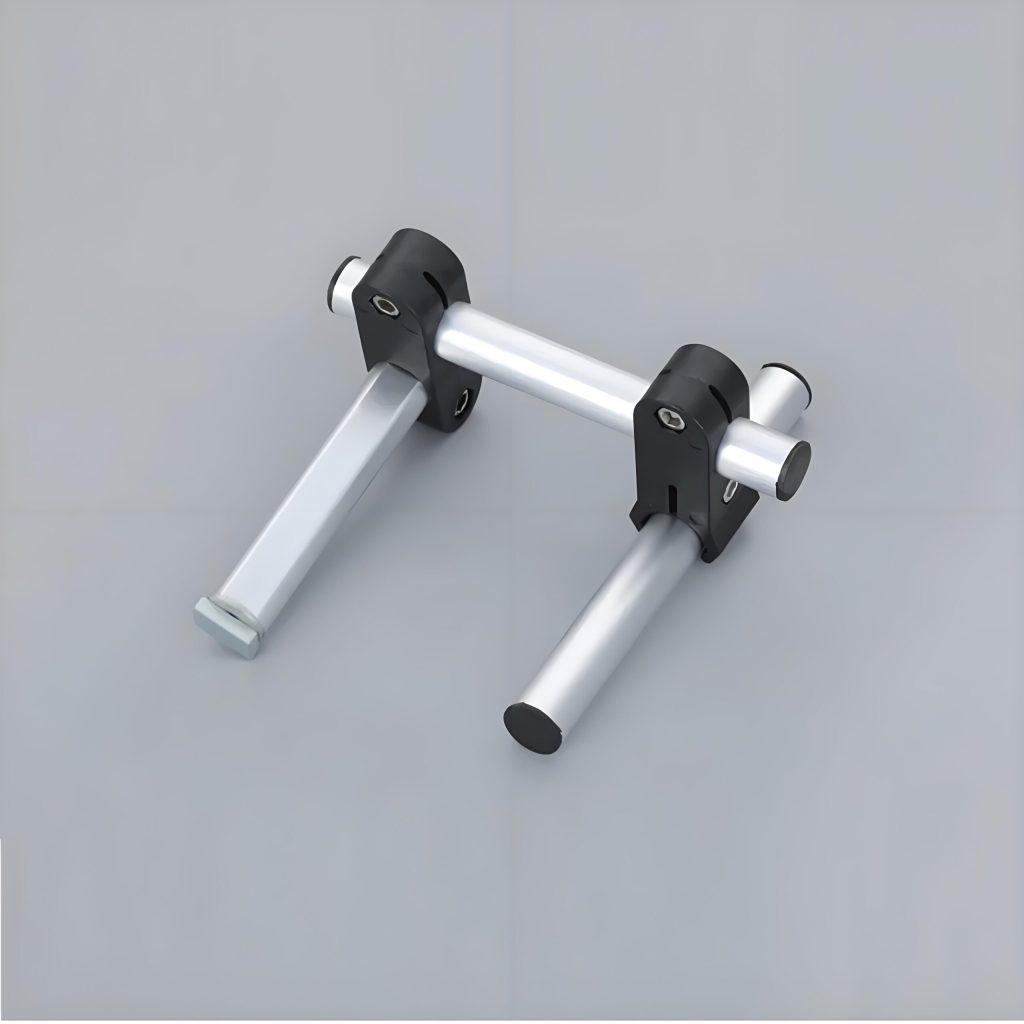

Product guide profile bracket

Categories Conveyor Section, Conveyor section profile and accessories, Flexible Chain Conveyors, vitrans conveyor

Details

Product guide profile bracket :

Installation diagram:

Model :Fix guide profile bracket A

Material :A6063

W1 :49mm

W2 :29mm

Model :Fix guide profile bracket B

Material :A6063

W1 :49mm

W2 :58.5mm

Model :Fix guide profile bracket A

Material :A6063

Model :Fix guide profile bracket B

Material :A6063

Model :Guide profile clamp A

Adapt product guide profile :15X20

Model :Guide profile clamp

Aperture 1 :21.5mm

Aperture 2 :18mm

Model :Vertical connector

Aperture 1 :18mm

Aperture 2 :20mm

Model :Aluminum tube cover

Adapt aluminum tube :KF3*18C

Model :Aluminum tube(KF3*18C)

Material:A6063

Diameter:18mm

Model :Flat aluminum tube(KF3*20H)

Material :A6063

Model :Flat aluminum tube cover

Adapt aluminum tube :KF3*20H

Model :Stand connector

Model :T connector C
