SG/V Double acting damper/Double Acting Pallet Damper
Parameter Specifications
| Product description | Double acting damper |
|---|---|
| Model | SG/V.PN.0502 |
| Type | Pneumatic dampened damper, double acting (push rod can retract actively) |
| Suitable for | WA2 and WE2 workpiece pallet |
| Note | Special designed for lift and transfer unit |
Details

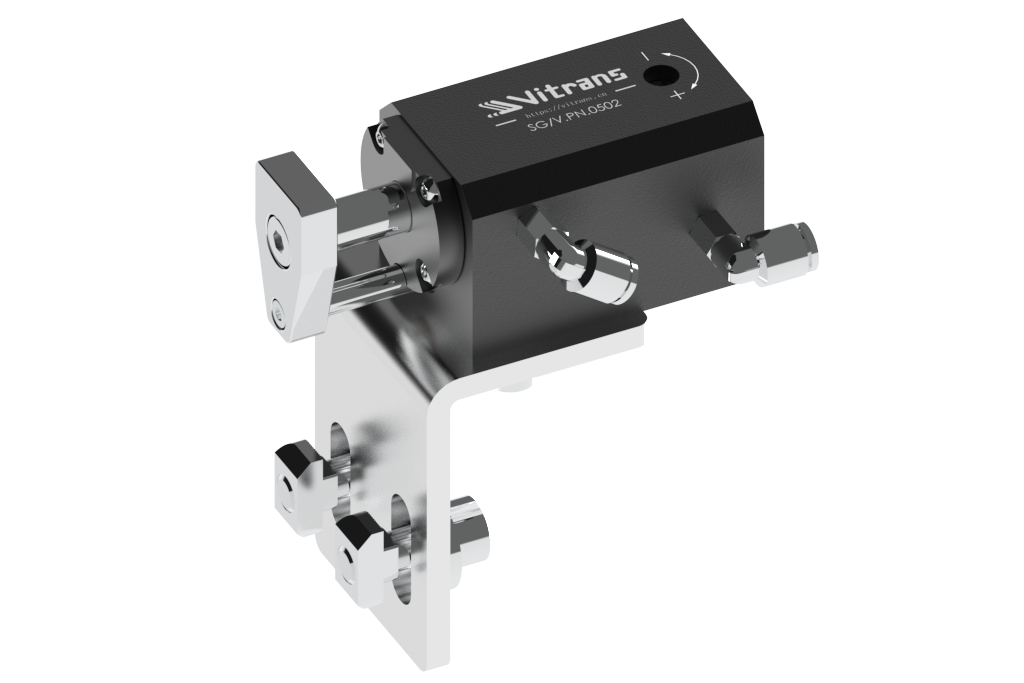

SG/V2 pneumatic pallet damper Specification:
- Model code : SG/V.PN.0502
- Allowed max.Loading:60kg (under pallet speed 6m/min)
- Stopper type:pneumatic
- Acting type:double acting
- Air connector diameter: 6mm
- installing accessory:including
- solenoid valve:excluding
- Sensor:excluding
Key benefits:
- damper loading capability is relative with conveyor speed
- Damper rated loading 60 is base on conveyor speed 6m/min
- For commom conveyor speed 18m/min, the damper allowed loading is 30kg
Application:

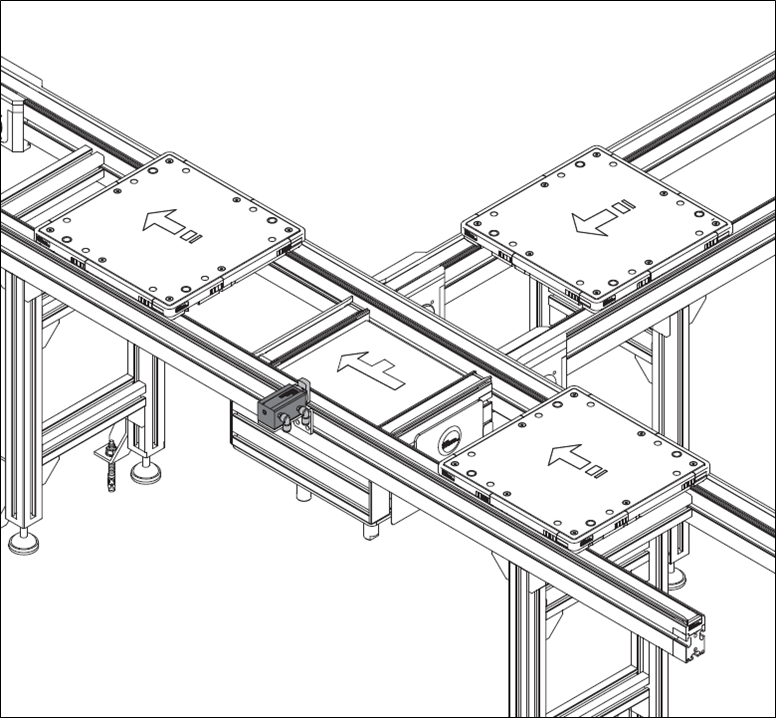

Double acting damper is generally used at cross area when pallet may come from two directions.
Installation:

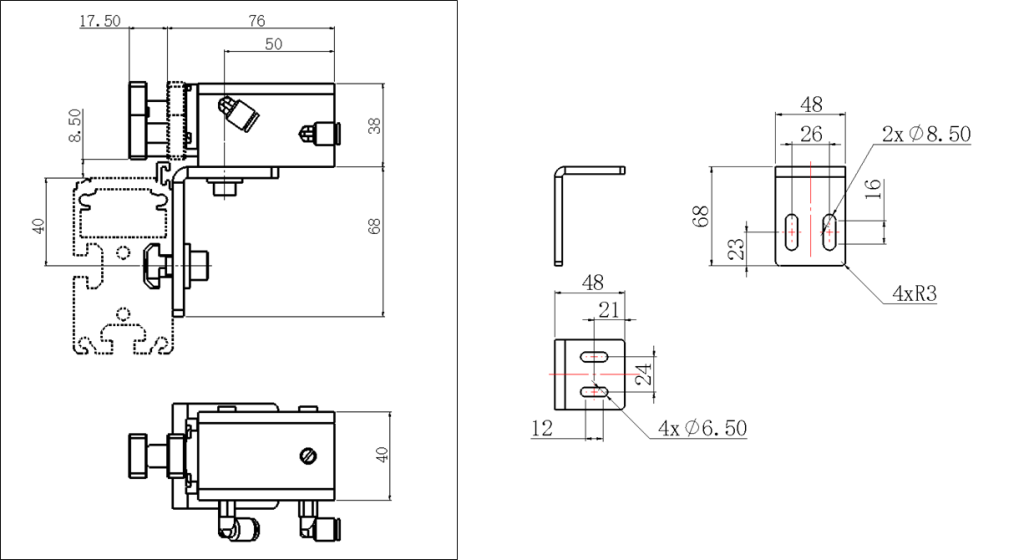

Pallet damper is installed outside the conveyor with mounting bracket.
