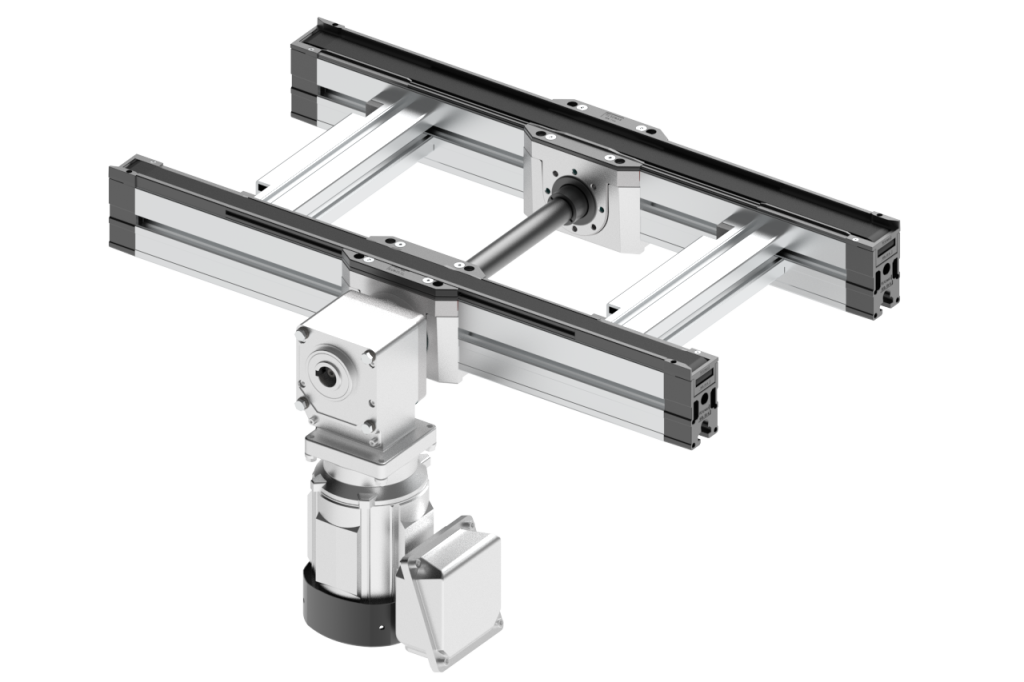

BC2 Timing Belt Conveyor/Timing Belt Pallet Conveyor/Free Flow Conveyor
Parameter Specifications
| Conveyor medium | Timing belt |
|---|---|
| Workpiece pallet width(mm) | 160,240,320,400,480,560,640,800,1040,1200 |
| Conveyor length(mm) | 300≤L≤6000 |
| Rated speed(m/min) | 0,6,9,12,15,18 |
| Permitted maximum load(kg) | 60 |
| Permitted maximum surface load(kg/cm) | 1 |
| Motor type | Three phase motor |
| Motor mounting location | L(left), R(Right), ML(Middle-Left), MR(middle-Right) |
| Motor mounting angle | 0°,90°,180°,270° |
| Working voltage | 220/380AC |
| Working frequency | 50Hz |
| Motor connection | Terminal box |
Details

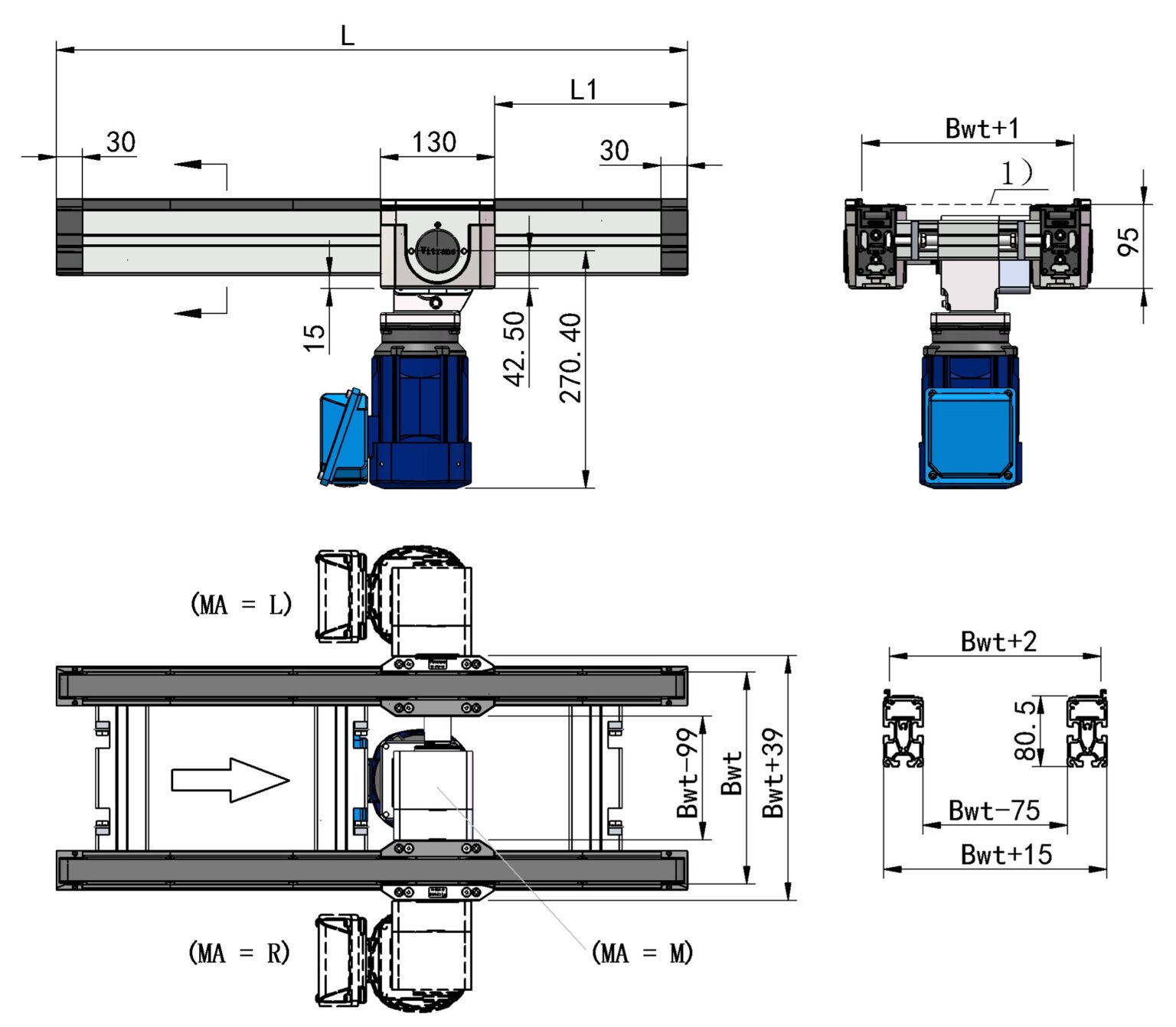

Timing belt conveyor Specification:
- Conveyor medium : Accumulated timing belt
- Pallet width in transport direction /mm: 160, 240, 320, 400, 480, 640, 800 (160≤Bwt≤800)
- Conveyor length /mm : 300≤L≤6000
- Nominal speed /(m/min): 6, 9, 12, 15, 18
- Max. Load /kg: 60
- Drive method: 3 phase motor
- Motor mounting method: L, R, M
- Motor mounting direction: 0°, 90°, 180°, 270°
- Voltage /V: 220/380 AC
- Frequency /Hz: 50
- Motor connection: Terminal box
Key benefits:
- Wear resistant belt, allowed pallet accumulated
- Easy maintaining，low dust
- Modular design for quick installing
- Low noise during operating
- loading capacity 1KG/CM
- Allow reverse operating

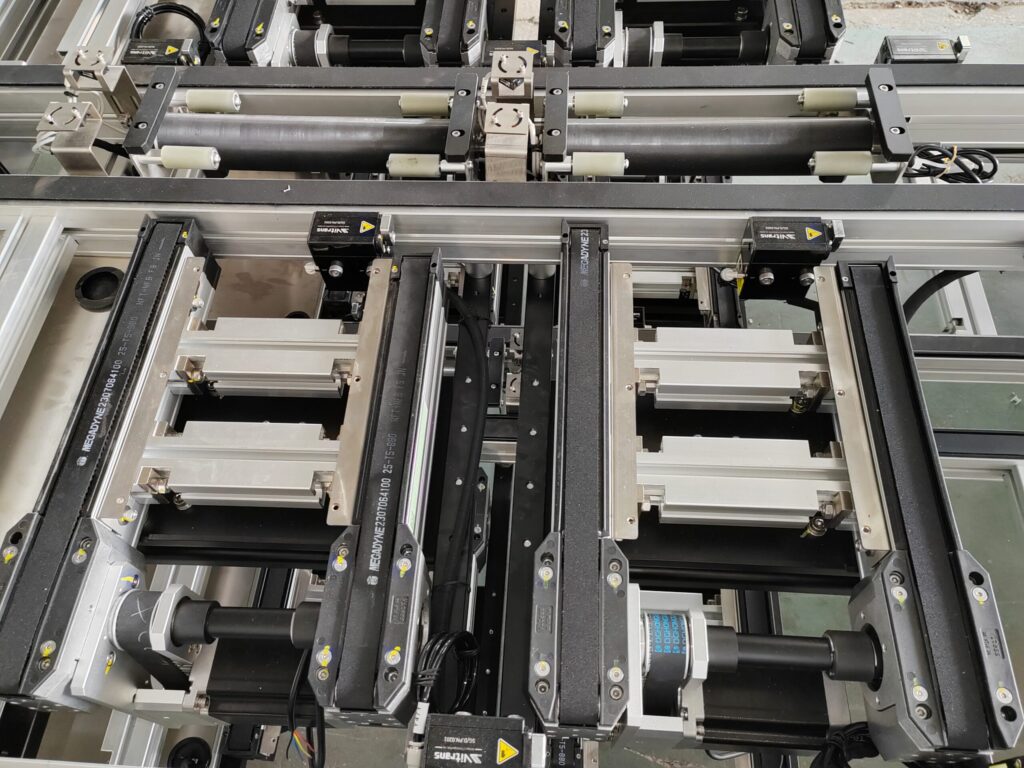

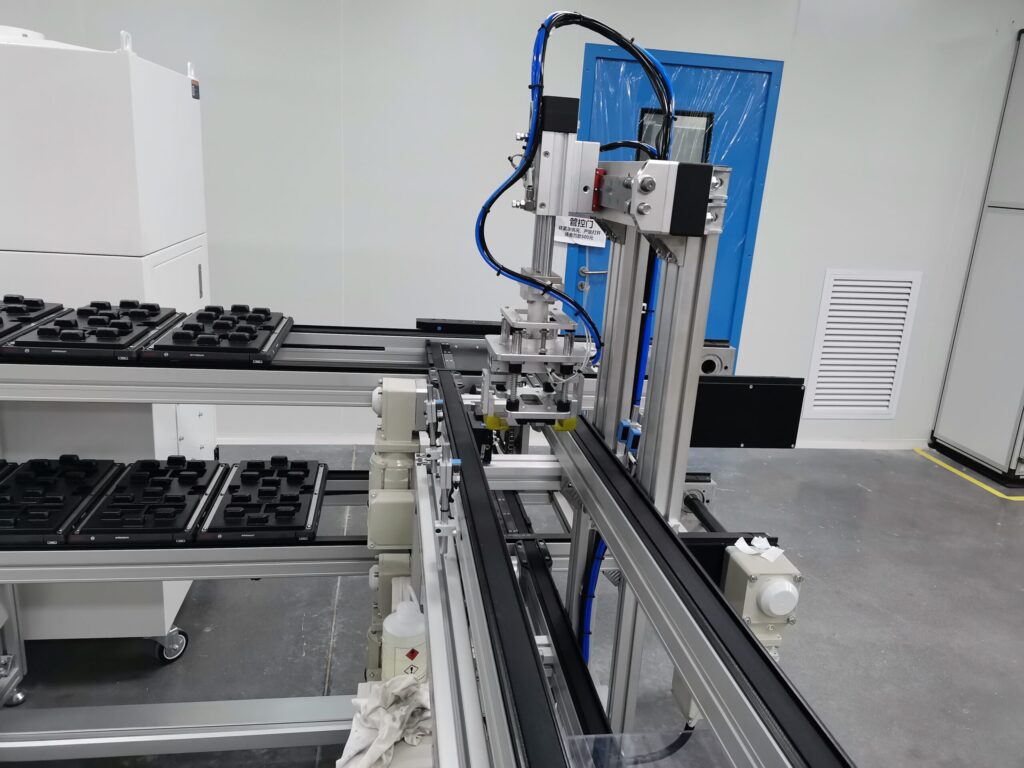

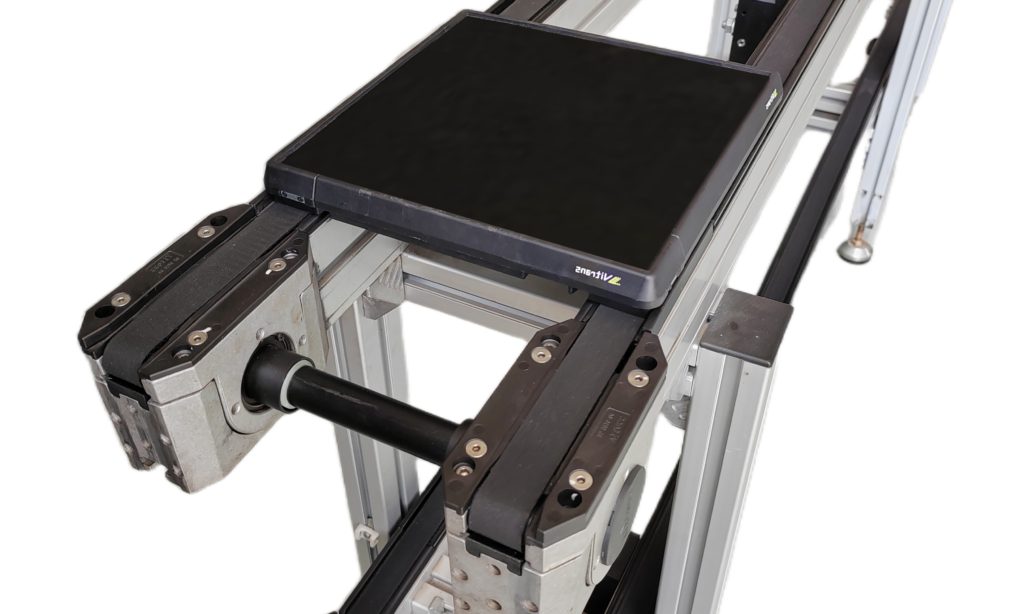

Precision Handling with Timing Belt conveyor for Pallet Conveyor System:
Introducing our advanced Pallet Conveyor System enhanced with a state-of-the-art Timing Belt Conveyor , designed to provide precision handling and optimal synchronization in material transportation. This innovative solution bringsefficiency and accuracy to your palletized material handling processes.
