EG Roller Section
Parameter Specifications
| Conveyor medium | Roller |
|---|---|
| Workpiece pallet width(mm) | 160,240,320,400,480,560,640,800,1040,1200 |
| Workpiece pallet length(mm) | 160,240,320,400,480,560,640,800,1040,1200 |
| Permitted maximum load | 30KG |
| Speed | Adjustable range 3-20m/min(Electrical roller section) |
| Working voltage | 24VDC,48VDC(Electrical roller section) |
| Free roller section length options | 45mm, 90mm, 135mm or other customized length |
| Electrical roller section length | Customized |
Dimension Diagram
Details

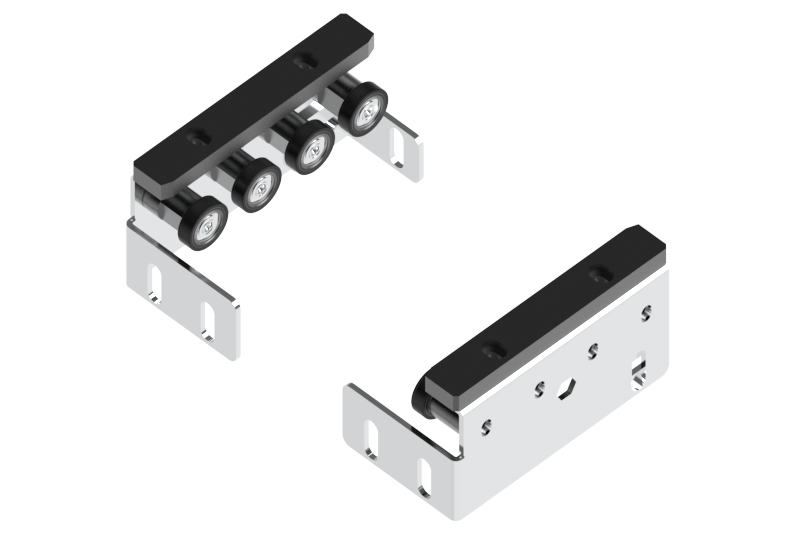

EG Transverse Transition section Specification:
- Model code : EG
- Transition typeFree roller
- Adapt pallet width:160mmu2264Bu2264800mm
- Transition section length:45mm; 90mm; 115mm; 135mm; 145mm
