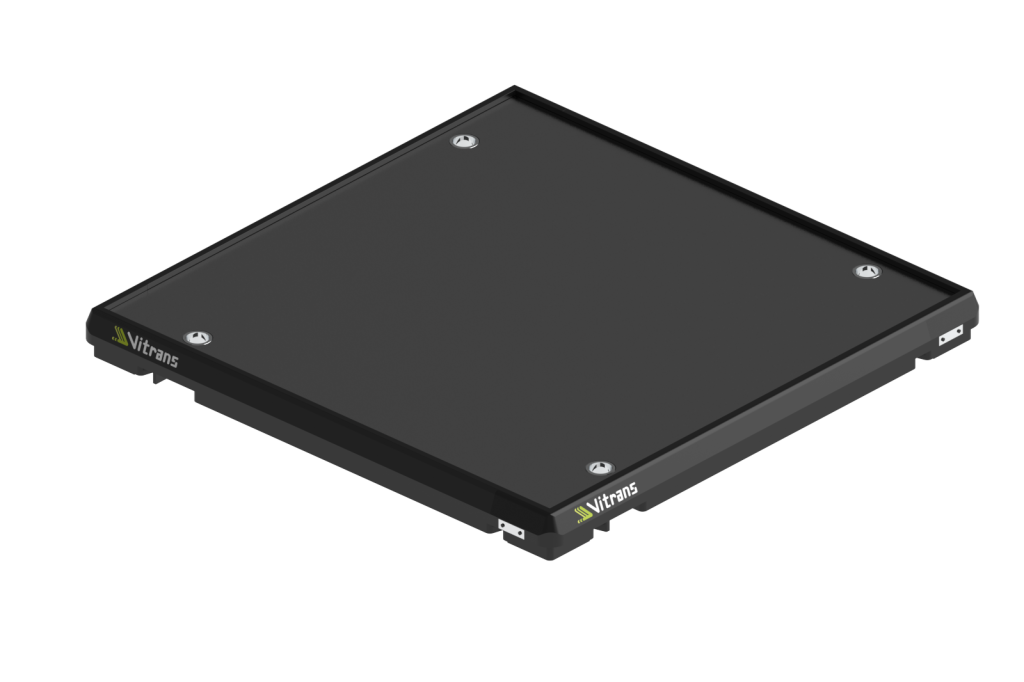

Conveyor Pallet
Parameter Specifications
| WA2 - Suitable conveyor media | Flat belt, timing belt, Flat top chain |
|---|---|
| WA2 - Frame module material | PA |
| WA2 - Carrying plate material | Aluminum or steel |
| WA2 - Carrying plate thickness(mm) | 5 / 8 / 12 |
| WA2 - Standard specifications | 42 |
| WA2 - Maximum load(kg) | 120 |
| WA2 - Positioning bushing precise locating accuracy(mm) | ±0.05 |
| WA2 - Guide groove rough locating accuracy(mm) | ±0.5 |
| WE2 - Suitable conveyor media | Accumulated chain, plastic chain |
| WE2 - Frame module material | PE |
| WE2 - Carrying plate material | Aluminum or steel |
| WE2 - Carrying plate thickness(mm) | 5 / 8 / 12 |
| WE2 - Standard specifications | 42 |
| WE2 - Maximum load(kg) | 240 |
| WE2 - Positioning bushing precise locating accuracy(mm) | ±0.05 |
| WE2 - Guide groove rough locating accuracy(mm) | ±0.5 |
Details
Conveyor pallet specification:
- Pallet width/mm:160, 240, 320, 400, 480, 640, 800, 1040 (160≤Bwt≤1040)
- Pallet length/mm:160, 240, 320, 400, 480, 640, 800, 1040 (160≤Bwt≤1040)
- carry plate thickness:5mm,8mm,12mm
- carry plate material:aluminum or carbon steel
- Fixture or JIG mounting holes customization :allowed
Key benefits:
- PA pallet suits belt conveyor and PE pallet suits chain conveyor

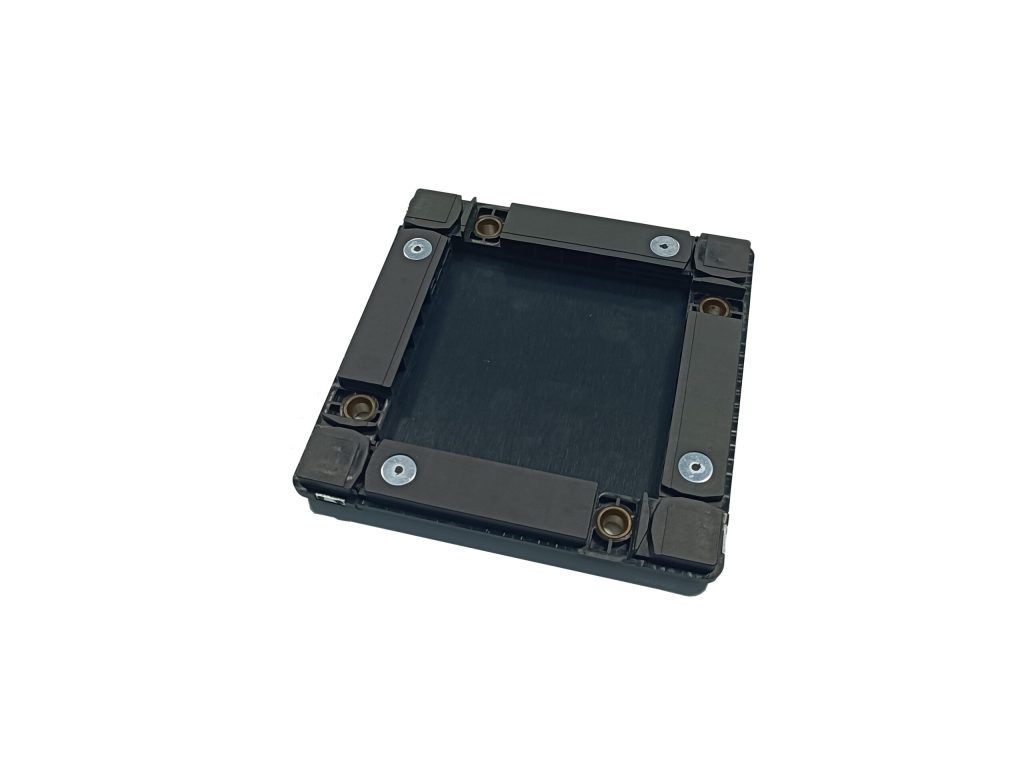

- Pallet frame is made of special wear-resistant material,accumulation is allowed
- Plastic pallet frame can prevent belt or chain wear
- The 4 pallet bushings are used to cooperate with the positioning mechanism
- The groove on frames allowed stopper to stop pallet with inner edge

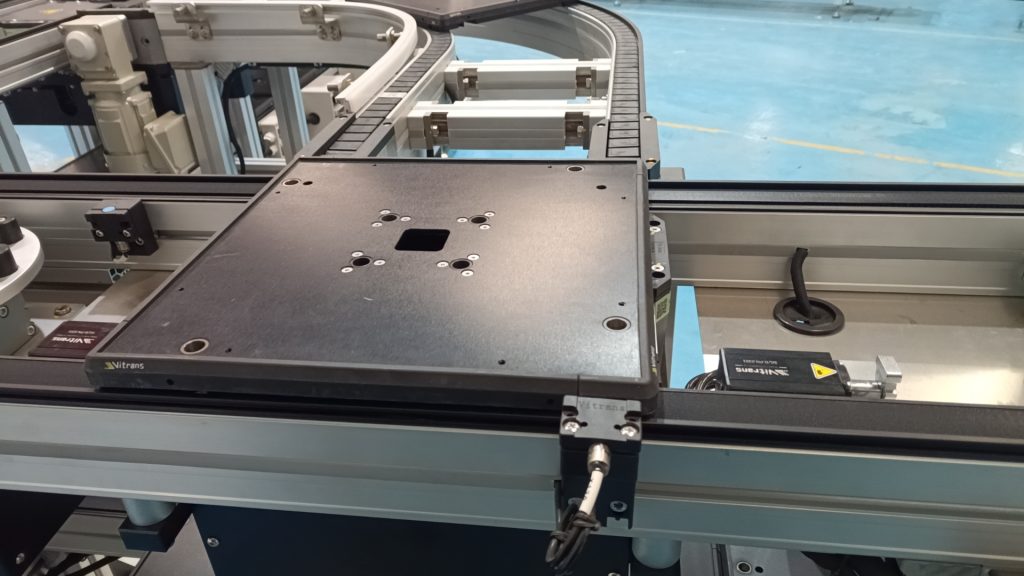

The versatility of pallets shines in their application across industries
Whether it’s pallet conveyors, battery conveyors, or household conveyors, pallets provide a standardized platform for efficient material transfer. Plastic chains and Roller chains, combined with pallet systems, contribute to streamlined handling solutions that meet the unique needs of each sector.
