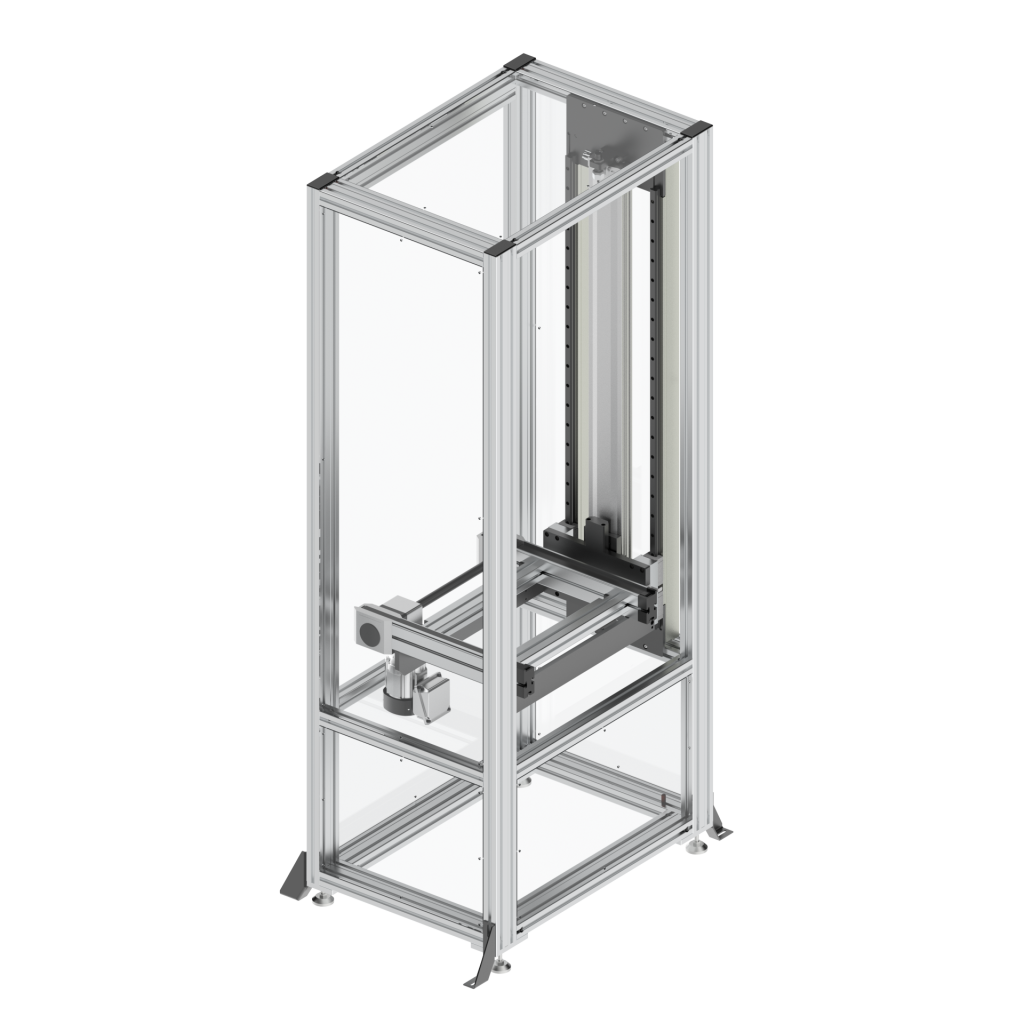

Over head Pallet conveyor Lifter Specification:
- Pallet width in transport direction /mm: 160, 240, 320, 400, 480, 640, 800 (160≤Bwt≤800)
- Pallet length in transport direction /mm: 160, 240, 320, 400, 480, 640, 800 (160≤Bwt≤800)
- Allowed max.Loading /KG:50
- Stroke :1100 to 1600 mm
- Lifting drive :Servo motor
- Lifting speed : 500mm/s
- Transfer drive :3 phase motor
- Nominal speed /(m/min): 6, 9, 12, 15, 18
Key benefits:
- Big stroke: Able to lifting product from 800mm to 2500mm height
- Strong structure for safety
- Clean and Easy maintaining
- Modular design for quick installing
- Allowed reverse operating
- compact size for space saving
Applications:
Over head Conveyor Systems
In a closed production environment, the over head lifter can be used to achieve air transportation of products, save ground space, and can also be used to build safety doors, facilitate the replenishment of raw materials, and timely evacuation of personnel in case of fire.
