描述
Model No.: RC/C
Brand: Vitrans
Applicable Industry: Manufacturing Plant, Other
Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): United States, Viet Nam, India, Mexico, Malaysia
Showroom Location (in Which Countries Are There Sample Rooms Overseas): None
Material: Stainless Steel
Structure: Conveyor System
Power (Watts): 200w, Other
Warranty Period: 1 Year
Mechanical Test Report: Provided
Video Factory Inspection: Provided
Marketing Type: Other
Core Component Warranty Period: 1 Year
Conveyor Width: 120mm to 1000mm
Conveyor Length: 600mm to 6000mm
Conveyor Loading: Customized

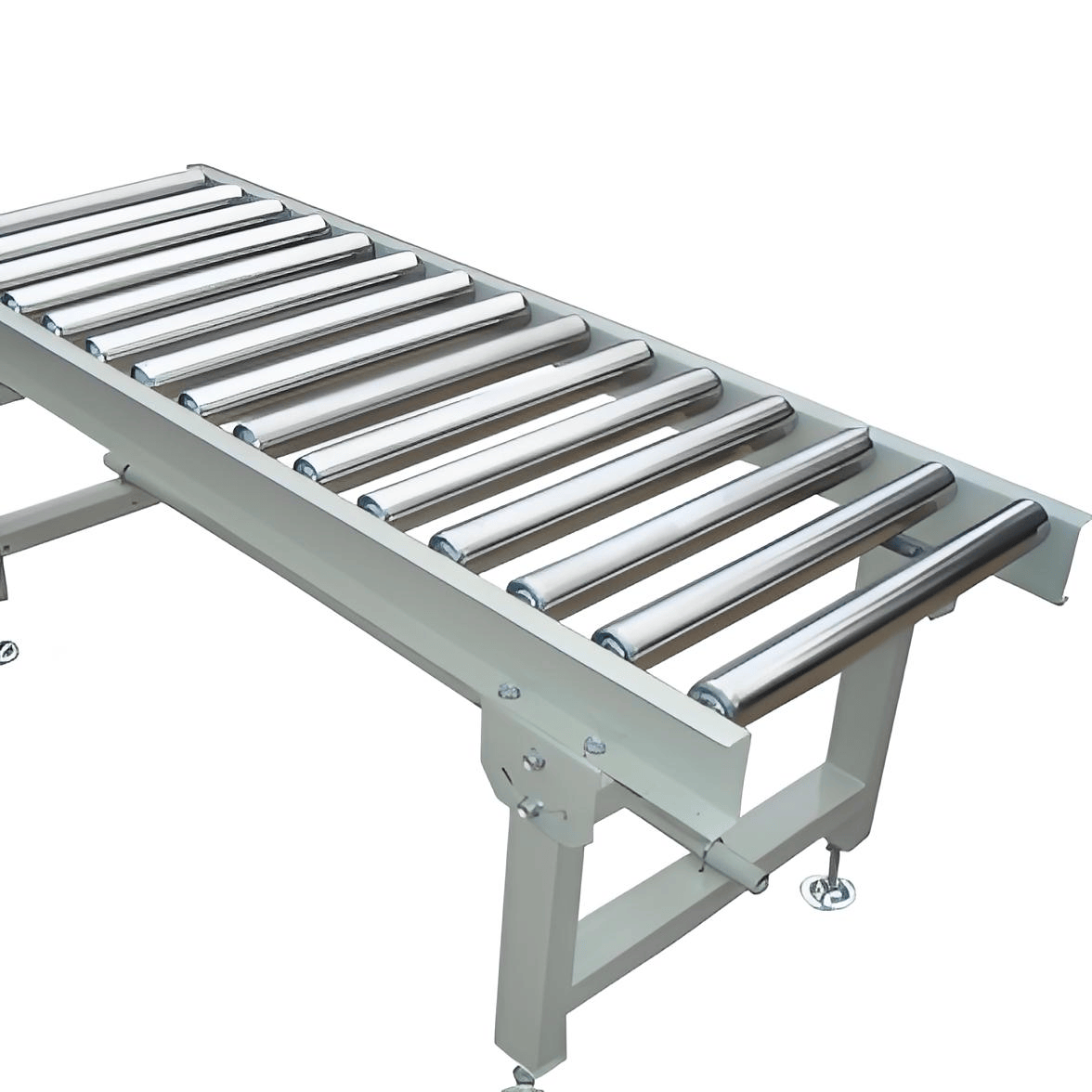

Roller conveyor Specification:
- Conveyor medium : Standard roller/ Accumulation roller
- Roller material: Plastic (PL) / Carbon steel chrome plated (CP) / Stainless steel (SS) / Rubber coated (RU)
- Conveying width /mm : 120 ≤ W ≤ 1000
- Conveyor line length /mm: 600 ≤ L ≤ 5900
- Full load operating speed (m/min): Vmax=20m/min
- Maximum allowable load (kg/m): 300( φC ≥ φ60)
- Maximum allowable load per single roller (kg): 30
- Drive type: Indirect drive
- Voltage /V: 220/380 AC
- Frequency /Hz: 50
- Motor connection: Terminal box
Key benefits:
- Simple structure, high reliability, easy to assemble and disassemble, and easy to maintain
- High load capacity and capable of withstanding significant impact loads
- Capable of accumulation function with adjustable accumulation force
- Capable of forward and reverse rotation
- Supports accumulation operation
- The frame is constructed from high-strength aluminum profiles with standard slots, enabling quick connection to other equipment or installation of additional accessories ( sensors, brackets, etc. )
- Supports non-standard customization
