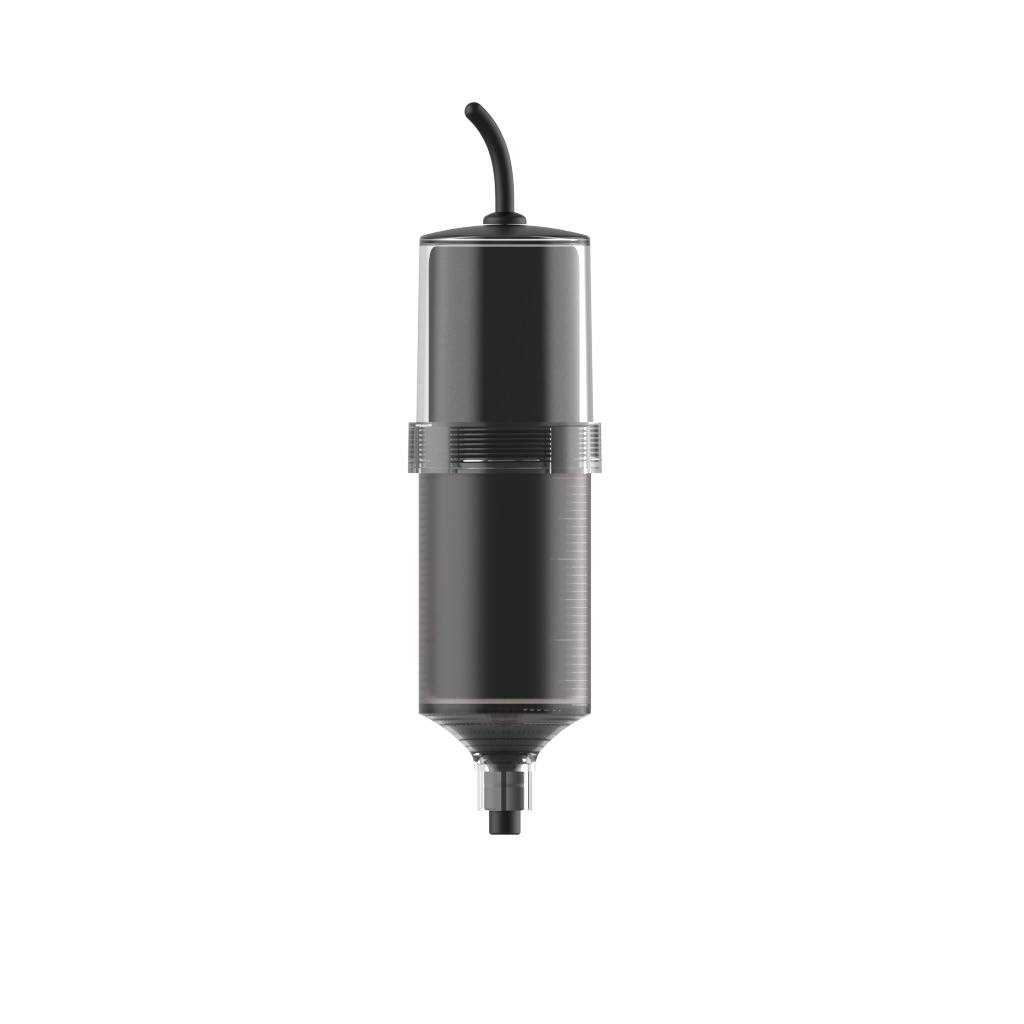

Автоматический смазочный агрегат RH3
Automatically adding lubricating oil to the conveyor medium in a timed and quantitative manner.
Технические характеристики параметров
| Описание товара | Automatic lubricate unit |
|---|---|
| Модель | RH3.01.01 |
| Drive method | DC Motor |
| Minimum operation interval | 10s |
| Work pressure | 0-5bar |
| Work voltage | VSS-GND 12~24V DC |
| Work temperature | -20℃~60℃ |
| Storage temperature | 20℃ |
| Minimum oil output | 0.82ml/per dose |
| Maximum oil output | 10ml/per dose |
| Oil container volume | 300ml |

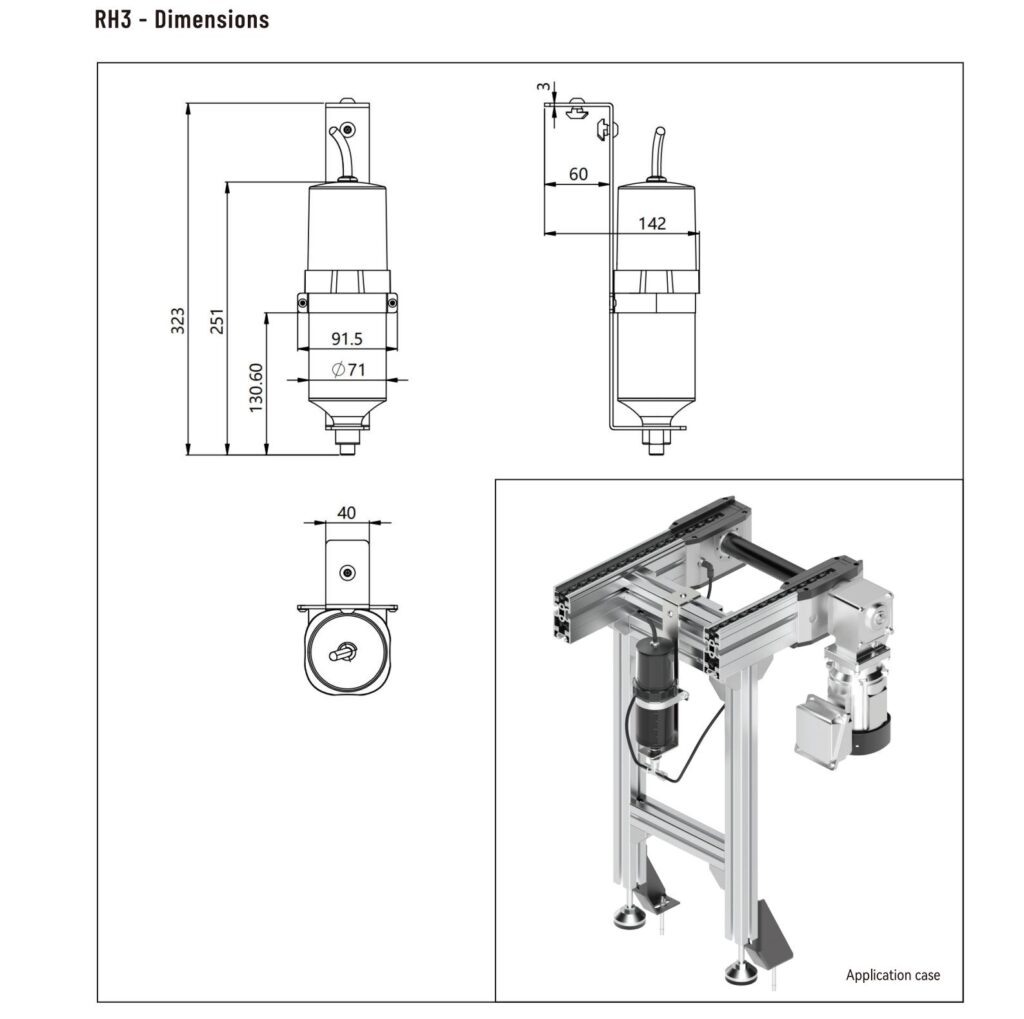

Схема размеров
