SG/D-200 Pneumatic Stopper
The stopper is used to stop workpiece pallets at designated position.
Parameter Specifications
| Product description | Pneumatic dampened stopper |
|---|---|
| Model | SG/D.PN.0403-L(Stop workpiece pallet outer edge) |
| Model | SG/D.PN.0403-R(Stop workpiece pallet inner edge) |
| Permitted load at rated speed | V=6m/min: max pallet weight 200kg |
| Permitted load at rated speed | V=9m/min: max pallet weight 140kg |
| Permitted load at rated speed | V=12m/min: max pallet weight 100kg |
| Permitted load at rated speed | V=15m/min: max pallet weight 100kg |
| Permitted load at rated speed | V=18m/min: max pallet weight 100kg |
| Permitted load at rated speed | V=24m/min: max pallet weight 55kg |

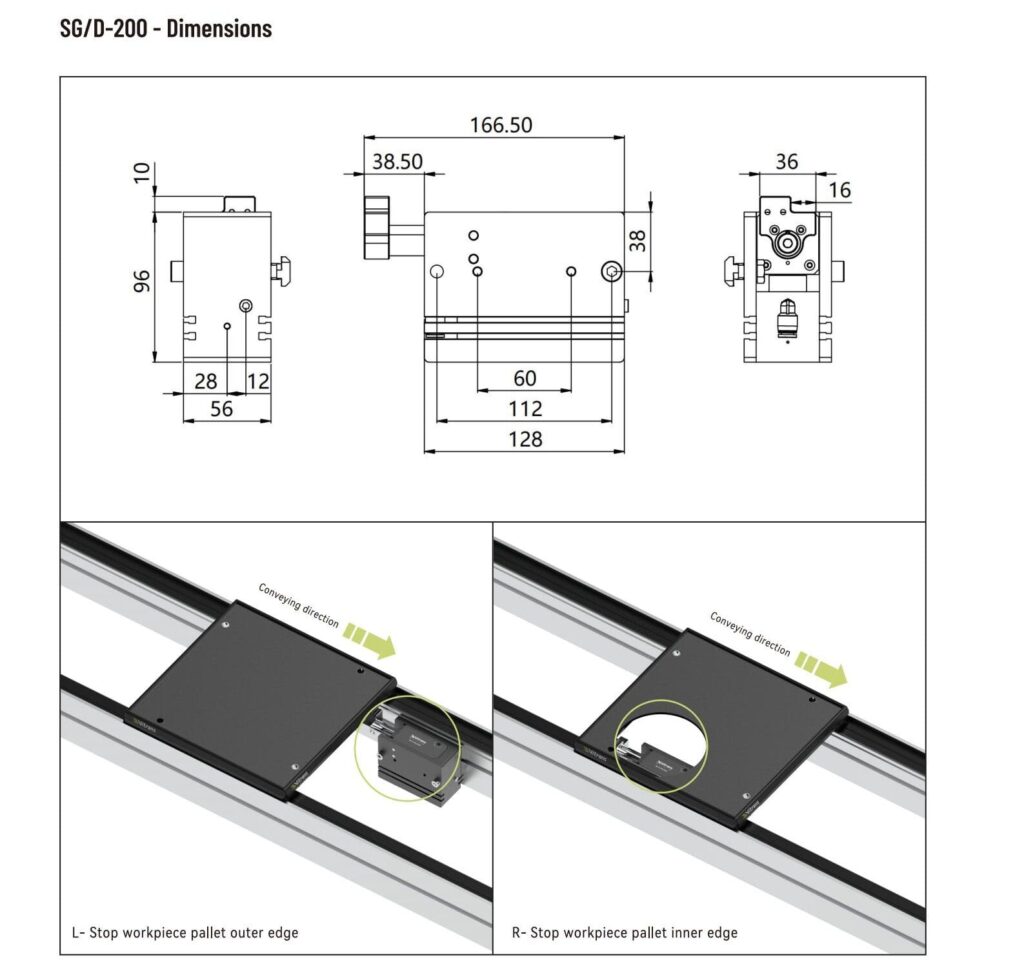

Dimension Diagram
