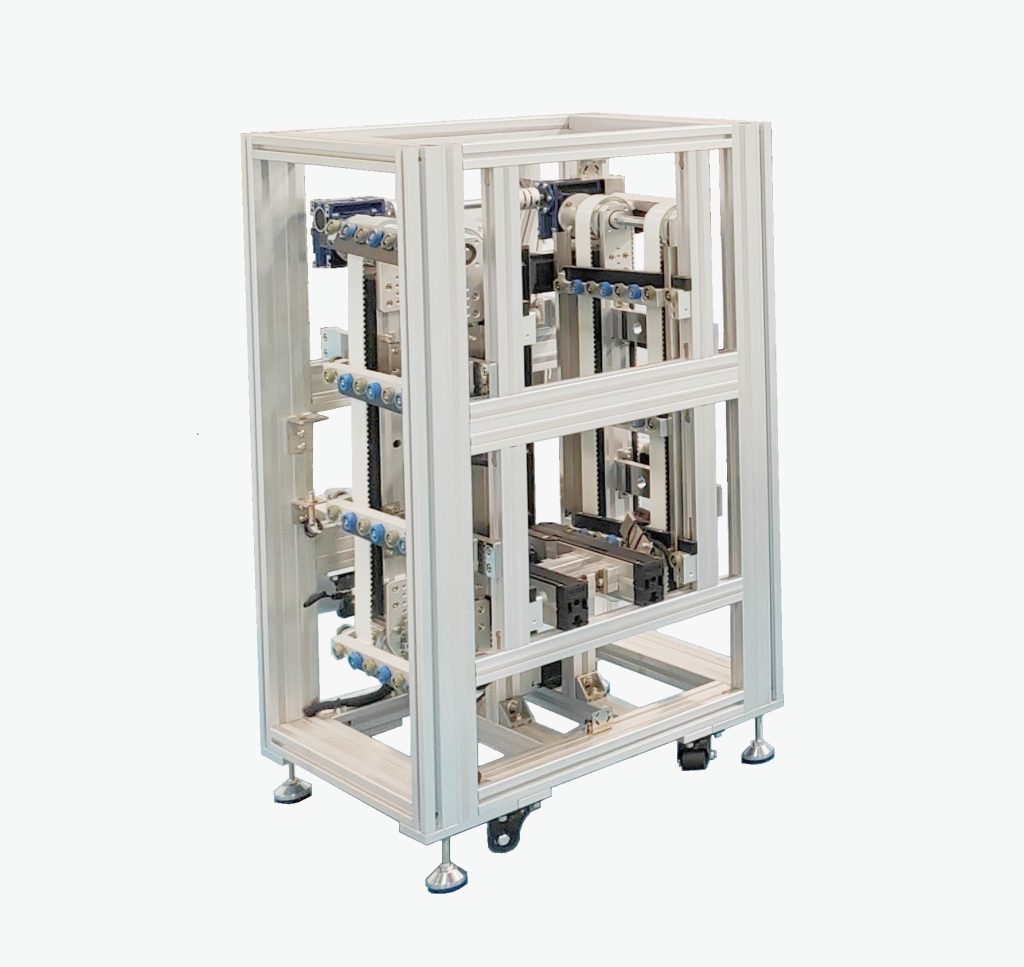

LP/X Stepping Lifter
Parameter Specifications
| Workpiece pallet width(mm) | 160,240,320,400,480,560,640(Support customization) |
|---|---|
| Workpiece pallet length(mm) | 160,240,320,400,480,560,640(Support customization) |
| Conveyor length(mm) | L=Lwt+150 |
| Permitted maximum load(kg) | 30 |
| Permitted maximum of each step(kg) | 10 |
| Step distance | 200,250 |
| Height range | 350 ≤ Height of top and bottom conveyors < 1600 |
| Lift speed(mm/s) | ≤500 |
| Rated speed of conveyor(m/min) | 0,6,9,12,15,18(V=0 means no motor) |
| Lift motor type | Servo motor(Including pulse type servo drive) |
| Conveyor motor type | Stepper motor(Including I/O type stepper drive) |
| Motor mounting location | ML(Middle-left), MR(Middle-right) |
| Working voltage of servo motor | AC: 220V(Single phase) |
| Working voltage of stepper motor | DC: 48V 3.8A(Support customizing other working voltage) |
| Working frequency | 50Hz |
| Feeding mechanism - Execution cylinder bore diameter(mm) | 25 |
| Feeding mechanism - Rotate cylinder bore diameter(mm) | 50 |
| Feeding mechanism - Push force(N) | 120 |
| Feeding mechanism - Working air pressure of cylinder | 0.4～0.8 MPa |
Details

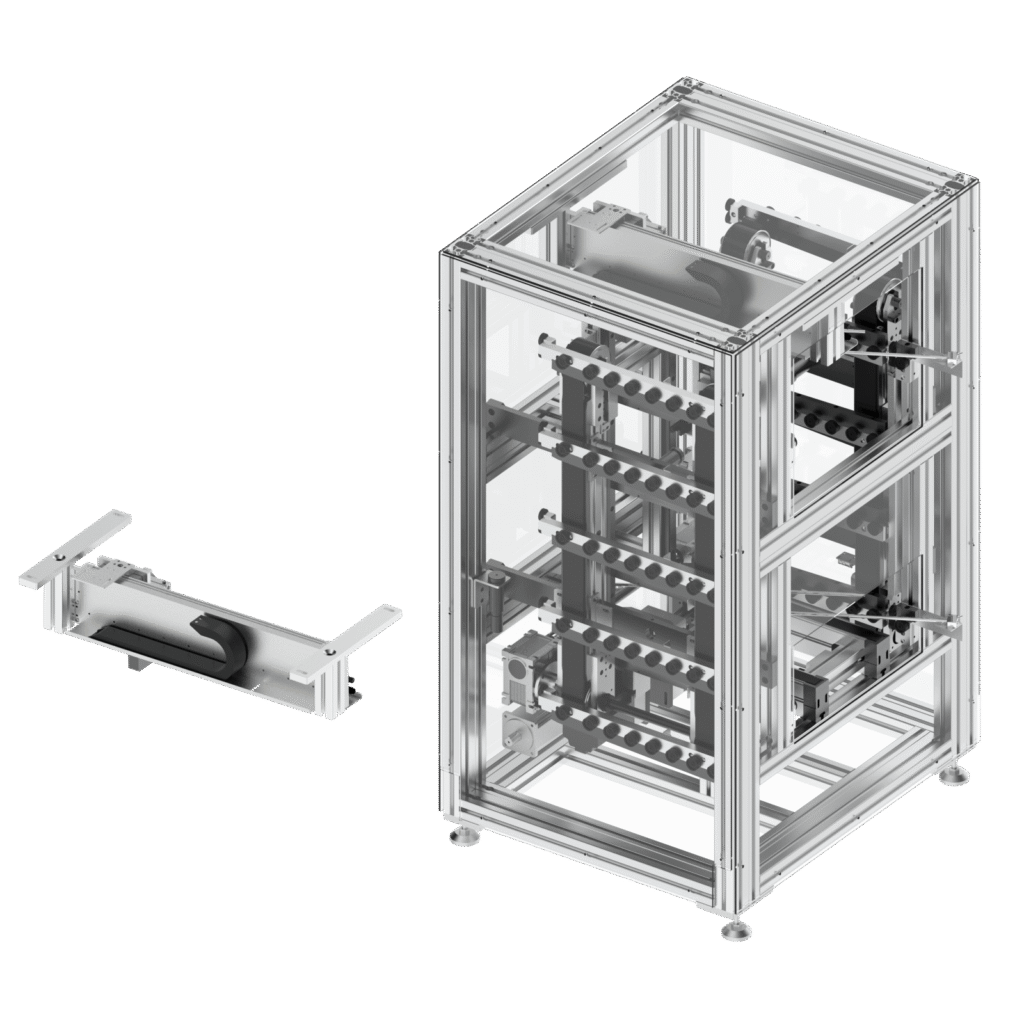

LP/X Pallet conveyor continue lifter
- Note 1: Above specifications are for single workpiece pallet lifter.
- Note 2: The stroke of stepping lifter must be an integer multiple of 200mm or 250mm.
- Note 3: Default workpiece pallet height Hwt is 100mm. When step distance is 200mm, workpiece pallet height Hwt cannot be over 100mm.
- Note 4: To load or unload workpiece on lifter, please specify.
- Note 5: To add a photoelectric safety protection device, please specify

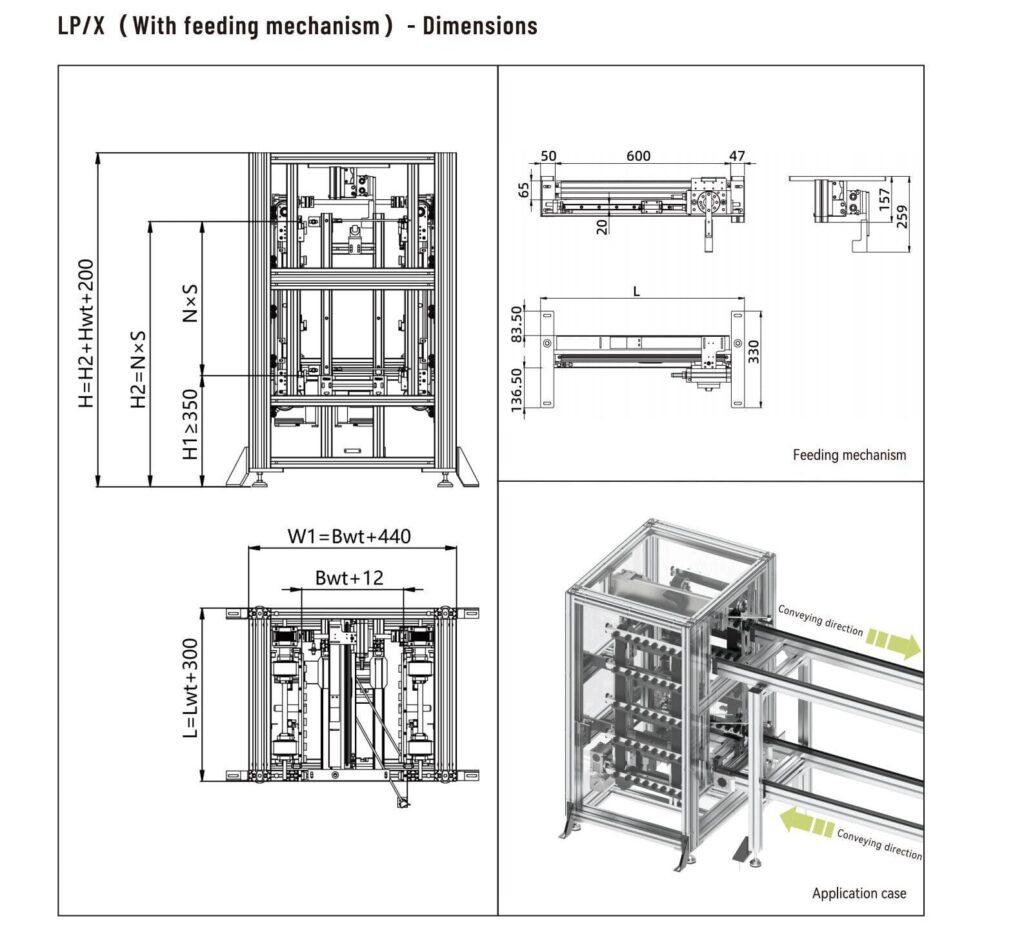

- Note: To use the lifter. The minimum conveyor height is 350mm. And the maximum conveyor height is 1600mm. N stand for the quantity of steps. S stand for step distance. And NxS is the stroke of lifter.
Key benefits:
- Short cycle time: 1.5-2.5 seconds
- Low impact during lifting
- Low noise during operating
- Clean and Easy maintaining
- Modular design for quick installing
- compact size for space saving
Optimizing Cycle Time for High-Speed Pallet Conveyor Systems
The Short Cycle Time Pallet Lifter signifies a paradigm shift in the world of pallet conveyor systems. By ingeniously incorporating multiple roller holders, it not only escapes the limitations of traditional lifters but also elevates operational efficiency to new heights. In a landscape where time is of the essence, this lifter sets a new standard for speed, versatility, and uncompromising performance.
