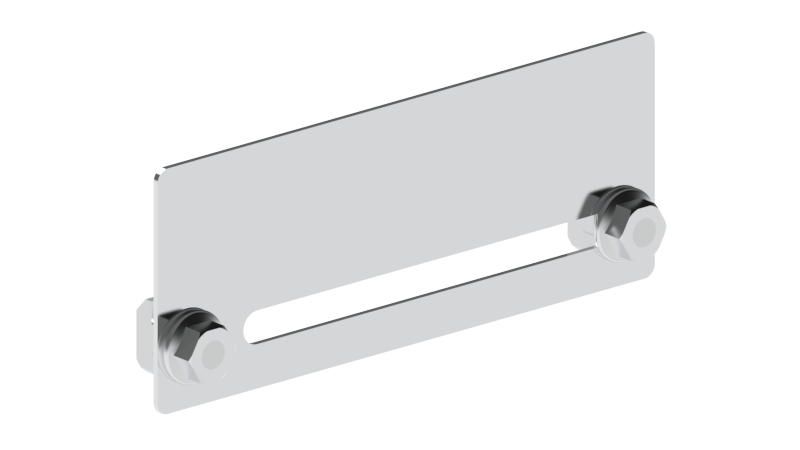

PN Pallet Guide Plate
Suitable for workpiece pallet with low positioning accuracy requirements. The inner guide can be fitted with the groove guide of workpiece pallet to limit the workpiece pallet position.
Parameter Specifications
| Product description | Workpiece pallet inner guide |
|---|---|
| Installation | Installed on the inner side of conveyor section profile |
| Repeat accuracy(mm) | ±0.5 |
| Material | Stainless steel |
| Suitable for | WA2 and WE2 workpiece pallet |
| Length options(mm) | 45 / 150 / 300 / 450 / 600 |
| Length selection guideline | 150mm for Lwt160; 300mm for Lwt320; 450mm for Lwt400; 600mm for Lwt560; one pair of 45mm guide for Lwt>640mm |
