Model No.: SG/D-150
Brand: Vitrans
Applicable Industry: Manufacturing Plant, Other
Out-of-warranty Service: Online Support, Video Technical Support, Spare Parts
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): Malaysia, India
Showroom Location (in Which Countries Are There Sample Rooms Overseas): None
Status: New
Material: Aluminium
Material Characteristics: Heat Resistant
Structure: Conveyor System
Place Of Origin: China
Power (Watts): Other
Warranty Period: 1 Year
Width Or Diameter: Other
Mechanical Test Report: Provided
Video Factory Inspection: Provided
Marketing Type: Other
Core Component Warranty Period: 1 Year
Core Components: Other
Air Supply Requirement: 4-6bar
Work Temperature: Normal
Product Type: Air cylinder
Style1: Pneumatic Stop Gate
Style2: Single acting cylinder
Max. Load: 50kg-150kg depends on coveyor speed
| Selling Units | : | Set/Sets |
| Package Type | : | ply-wood case |
| Picture Example | : |
|

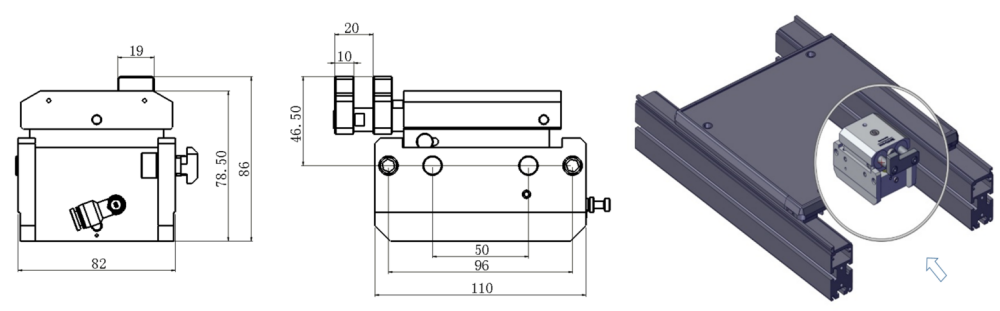

SG/D-150 Pallet Stopper Design:

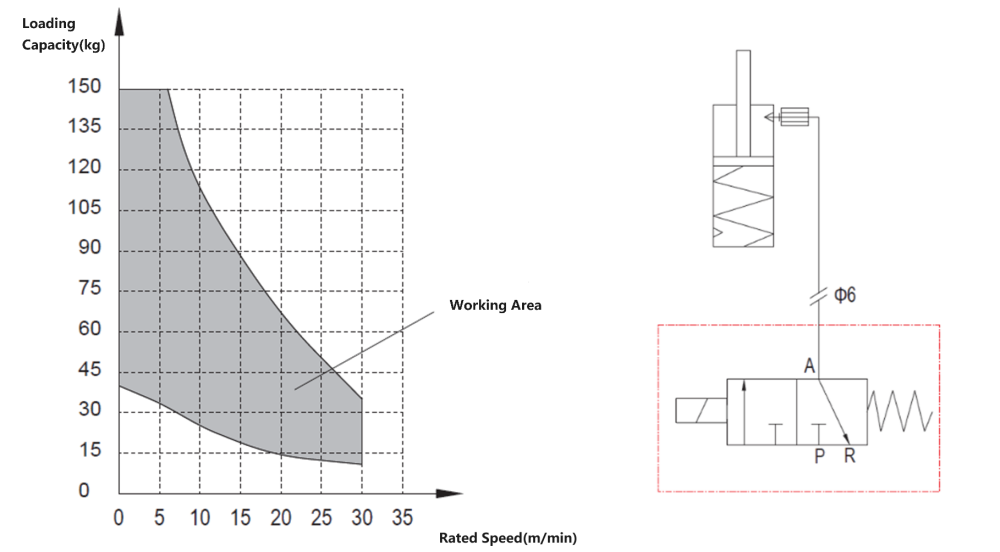

SG/D-150 Pallet Stopper Specification:

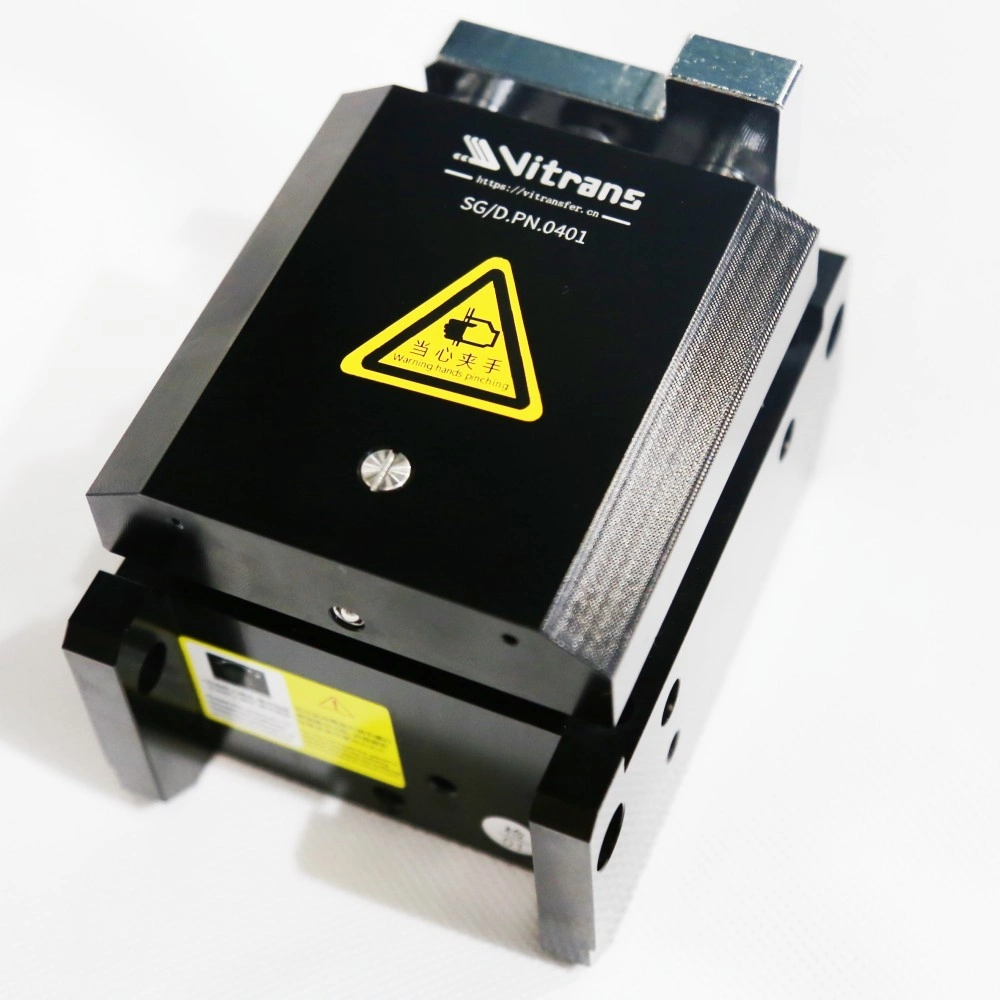

SG/D-150 Pallet Stopper Overview:
Enhancing Precision and Efficiency with Vitrans SG/D-150 Pallet Stopper
In the realm of Pallet Conveyor Systems, the Pallet Stopper plays a pivotal role, enabling precise control to halt pallets at designated positions. Vitrans introduces the SG/D-150, a cutting-edge development in the form of a medium-duty Buffer-equipped stopper, designed to accommodate a maximum load of 150kg.
Key Features:
Medium Load Capacity:
The SG/D-150 is engineered to handle substantial loads, allowing seamless control over pallets with a maximum capacity of 150kg.
Buffered Stoppage:
Eliminating the impact commonly associated with halting pallets, the SG/D-150 incorporates a buffer mechanism, ensuring a smooth and shock-free stoppage.
Space Optimization:
Whether it's securing pallets on the inner side to conserve space or halting them on the outer side to prevent interference with other mechanisms, the SG/D-150 offers versatile positioning options.
Enhanced Performance:
In comparison to its predecessor, the SG/D-60, the SG/D-150 delivers superior load-bearing capabilities, providing enhanced performance for diverse industrial applications.
Vitrans continues to lead the way in Conveyor System innovations, ensuring that each component, such as the SG/D-150 Pallet Stopper, contributes to the seamless and efficient operation of automated production lines. Elevate your precision and efficiency with Vitrans – where cutting-edge technology meets industrial excellence.
