| Payment Type: | L/C,T/T |
| Incoterm: | FOB,CIF |
| Min. Order: | 1 Set/Sets |
| Transportation: | Ocean |
| Port: | Shenzhen |
Model No.: PR2
Brand: Vitrans
Applicable Industry: Manufacturing Plant, Other
Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None
Showroom Location (in Which Countries Are There Sample Rooms Overseas): None
Status: New
Material: Aluminium
Material Characteristics: Heat Resistant
Structure: Conveyor System
Place Of Origin: China
Warranty Period: 1 Year
Mechanical Test Report: Provided
Video Factory Inspection: Provided
Marketing Type: Other
Core Component Warranty Period: 1 Year
Core Components: Bearing
Rotary Unit Length: 160mm-640mm
Rotary Unit Width: 160mm-640mm
Rotary Unit Height: Customized
Rotate Angle: 90 degree/180 degree
Drive: Air cylinder
Cylinder: SMC
Certification: CE Certificate
| Selling Units | : | Set/Sets |
| Package Type | : | Wooden cases |
| Picture Example | : |
|

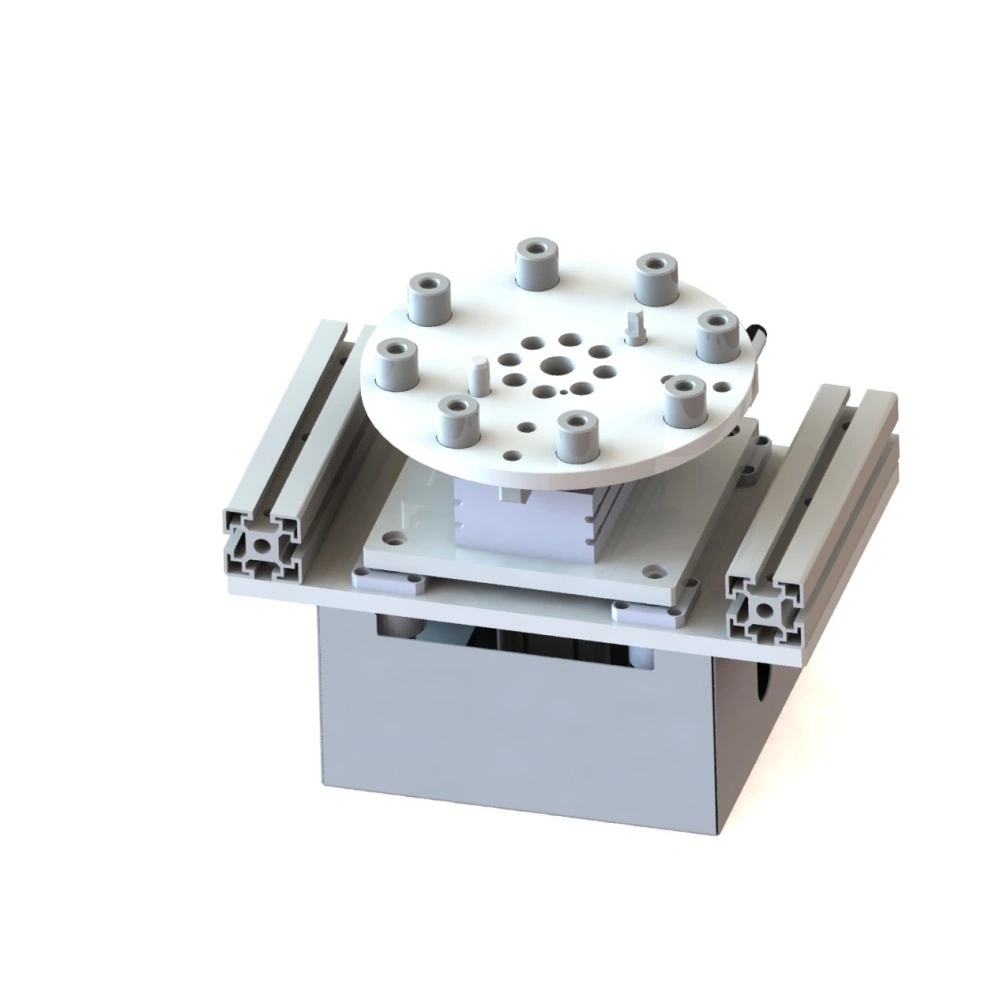

Conveyor Rotary Unit Design:
conveyor Rotary Unit Specification:
| Pallet width in transport direction /mm | Bwt | 240,320,400,480,640 (240≤Bwt≤640) |
| Pallet length in transport direction /mm | Lwt | 240,320,400,480,640 (240≤Bwt≤640) |
| Standard pallet size /mm | Bwt x Lwt | 240 x 240, 320, 400 |
| 320 x 240, 320, 400, 480 | ||
| 400 x 240, 320, 400, 480 | ||
| 480 x 320, 400, 480, 640 | ||
| 640 x 640 | ||
| Max.Load /kg | | 30 |
| Cylinder type | | φ 50 |
| Adapt conveyor type | | Belt conveyor, Chain Conveyor |
| Pallet rotation angle | | 90°, 180° |
Conveyor Rotary Unit Overview:
Unlocking Efficiency: Vitrans Pallet Rotary Unit in Action
In the dynamic landscape of Automated conveyor systems, Vitrans takes a leap forward with its innovative Pallet Rotary Unit. This cutting-edge technology finds its application in Pallet Conveyor Systems, specifically designed to revolutionize Pallet Handling and product orientation. The Pallet Rotary Unit serves as the key to seamless transitions and enhanced operational flexibility, catering to the diverse needs of both operators and automated machinery.
Two Drives, Countless Possibilities:
Vitrans offers not one, but two types of Pallet Rotary Units, providing a versatile solution for pallet rotation. The first is the Cylinder-Driven Unit, harnessing the power of air cylinders for precision and efficiency. The second is the Servo Motor-Driven Unit, designed for unparalleled accuracy and control. Both variants offer the flexibility of 90-degree or 180-degree rotations, adapting to the unique demands of your production environment.
Effortless Integration with Automated Conveyor Systems:
Ideal for assembly line conveyors, modular conveyors, and Industrial Conveyor setups, Vitrans' Pallet Rotary Unit seamlessly integrates into existing systems. Enhance the adaptability of your production line, allowing products to switch angles effortlessly for streamlined operations.
Key Features and Applications:
Rotation on Demand: Achieve precision in product positioning by enabling 90-degree or 180-degree rotations, facilitating easy access for operators and automated machinery.
Optimized Workflow:
Enhance the efficiency of assembly line conveyors and production systems with the ability to change product orientation seamlessly.
Tailored Solutions:
Vitrans' Pallet Rotary Unit caters to a variety of applications, offering customized solutions for different conveyor types, including timing belt conveyors, chain conveyors, and more.
Vitrans vs. Competitors: Bosch, Dorner, Flexlink
When it comes to pricing and quality, Vitrans stands out among competitors like Bosch, Dorner, and Flexlink. Our Pallet Rotary Unit combines affordability with top-notch quality, providing a competitive edge in the market.
Elevate Your Conveyor Systems with Vitrans:
Cost-Effective Solutions:
Vitrans prioritizes cost-effectiveness without compromising on quality, making our Pallet Rotary Unit a wise investment for your conveyor systems.
Trusted Manufacturer:
With a reputation for reliability, Vitrans leads the way in Conveyor System innovation, ensuring optimal performance and longevity.
Transform your conveyor systems with Vitrans' Pallet Rotary Unit – where precision meets efficiency, and innovation meets affordability. Contact us today to explore how Vitrans can elevate your automation solutions and leave competitors behind.
