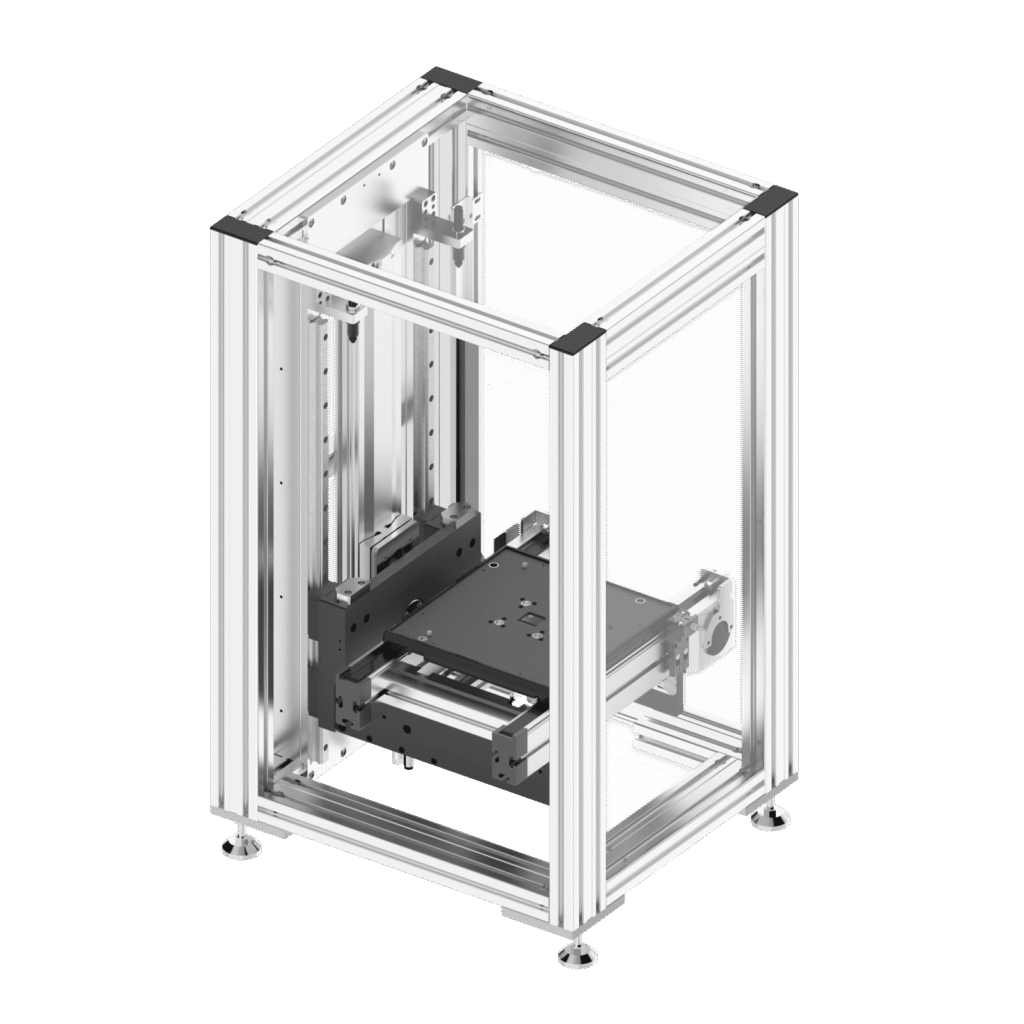

LP/P 공압식 팔레트 리프터
상세 정보
LP/P Pallet conveyor pneumatic lifter Specification:
- 운송 방향 기준 팔레트 폭 /mm:t160, 240, 320, 400, 480, 640, 800 (160u2264Bwtu2264800)
- Pallet length in transport direction /mm:t160, 240, 320, 400, 480, 640, 800 (160u2264Bwtu2264800)
- Allowed max.Loading /KG:30
- Stroke :Customized
- Lifting drive :cylinder
- magnatic switches:including
- Lifting speed : 300mm/s
- Transfer drive :Stepper motor
- Nominal speed /(m/min):t6, 9, 12, 15, 18
- Input Voltage:t48VDC/3.8A
주요 장점:
- high performance-price ratio
- Stable and Easy to control
- Clean and Easy maintaining
- 빠른 설치를 위한 모듈식 설계
- Allowed reverse operating
- compact size for space saving
적용 분야:
