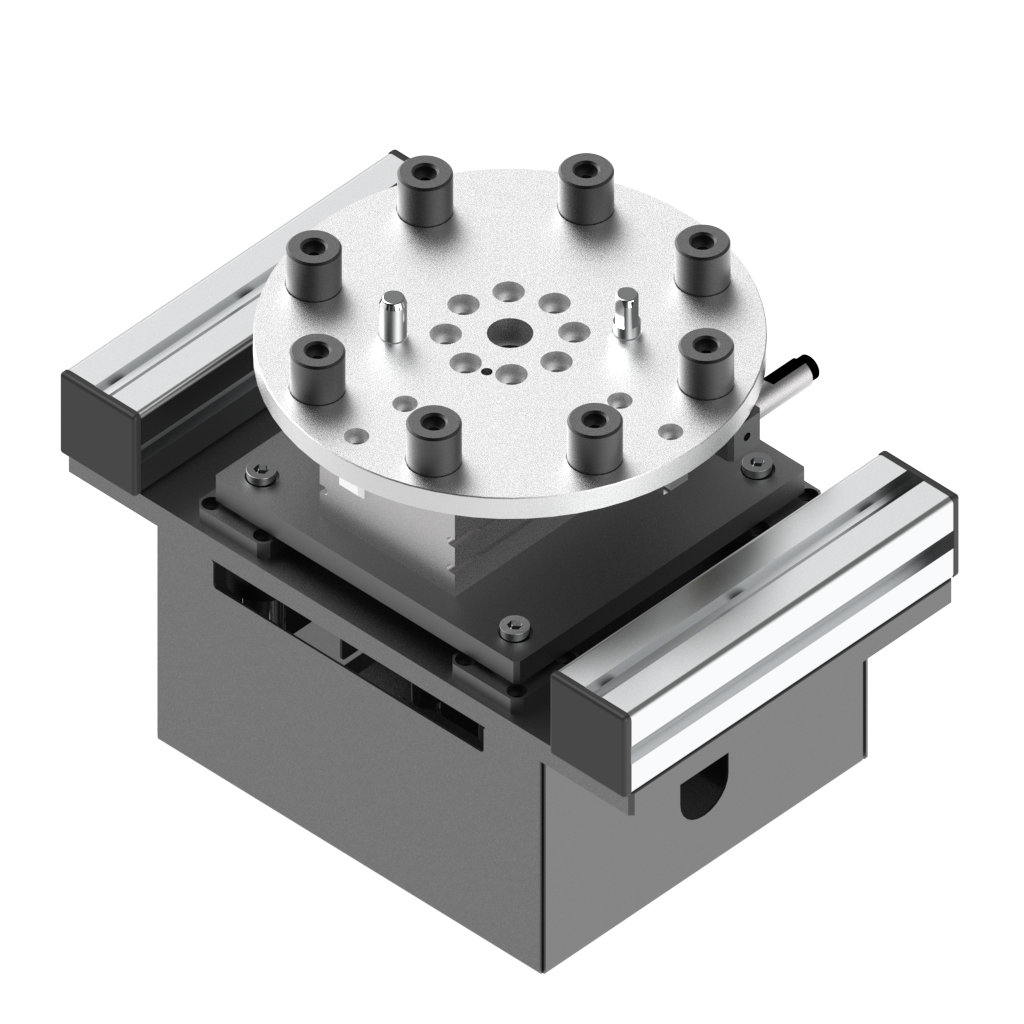

PR Lift and Rotate Unit/Pallet Rotary unit
Parameter Specifications
| Workpiece pallet width(mm) | 160,240,320,400,480,640 |
|---|---|
| Workpiece pallet length(mm) | 160,240,320,400,480,640 |
| Combination options(mm) | 160 x 160、240、320 |
| Combination options(mm) | 240 x 160、240、320、400、480 |
| Combination options(mm) | 320 x 160、240、320、400、480、560 |
| Combination options(mm) | 400 x 240、320、400、480、560、640 |
| Combination options(mm) | 480 x 320、400、480、560、640 |
| Combination options(mm) | 560 x 320、400、480、560、640 |
| Combination options(mm) | 640 x 320、400、480、560、640 |
| Permitted maximum load(kg) | 30 |
| Lift cylinder bore diameter(mm) | 40 / 50 (50mm while Lwt>240mm) |
| Rotate cylinder bore diameter(mm) | 50 |
| Adapted conveyor type | BC2/AC2/PC2 |
| Rotate angle | 90°、180° |

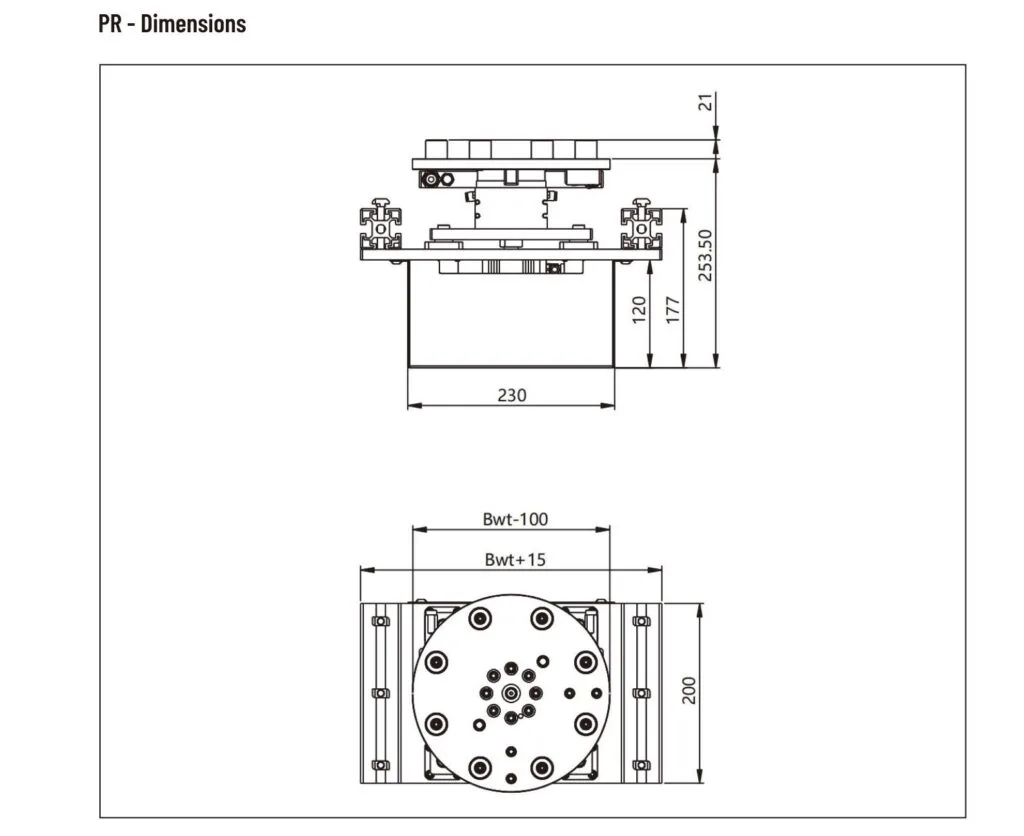

Details

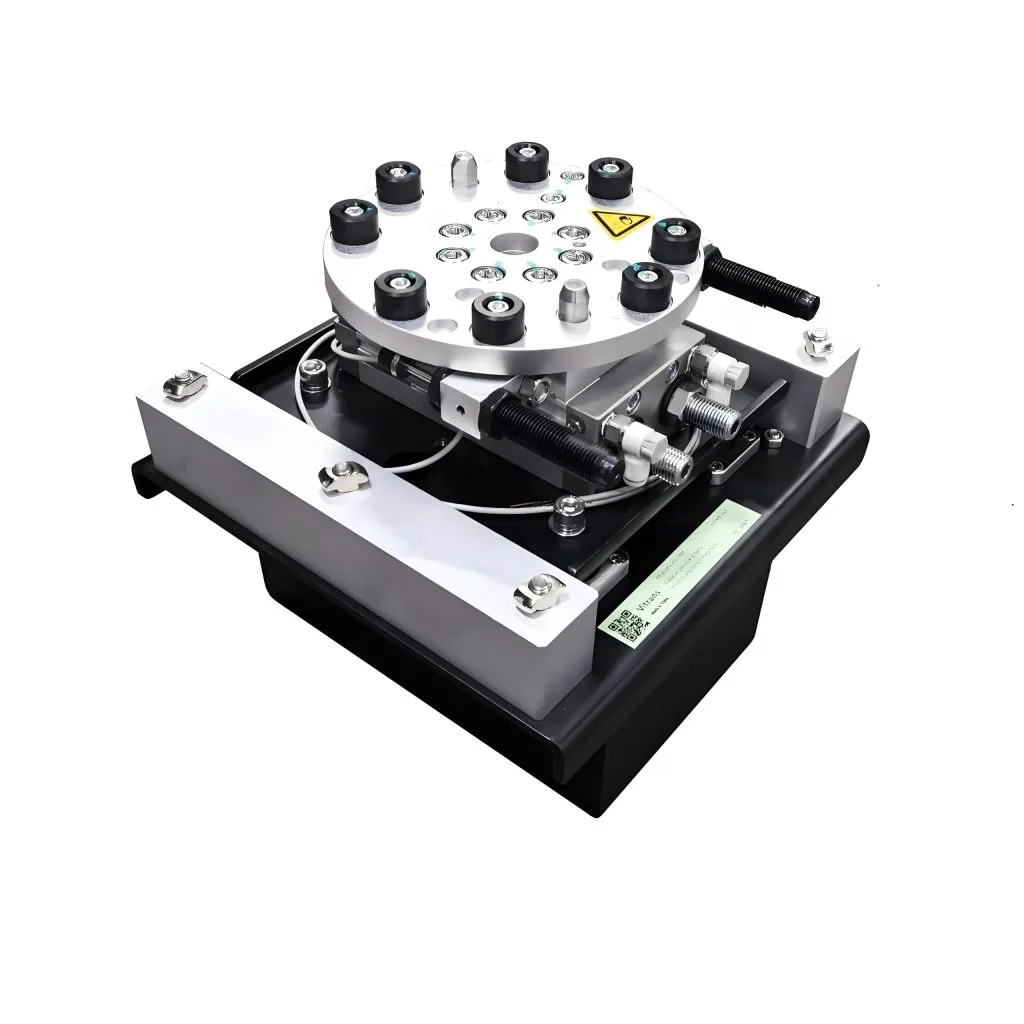

PR2 Lift and Rotate Unit Specification:
- Pallet width in transport direction /mm:t160, 240, 320, 400, 480, 640 (160u2264Bwtu2264640)
- Pallet length in transport direction /mm:t160, 240, 320, 400, 480, 640 (160u2264Bwtu2264640)
- Pallet rotate angle:t90u00b0 or 180u00b0
- Lifting drive :Cylinder
- Rotate drive :Cylinder
- magnatic switches:tincluding
- Max. Load /kg:t30 or customized
- solenoid valve:excluding
Key benefits:
- Pallet can be rotated 90u00b0 or 180u00b0
- Easy maintaining
- Modular design for quick installing
- Allowed reverse operating
- compact size for space saving
Applications:
