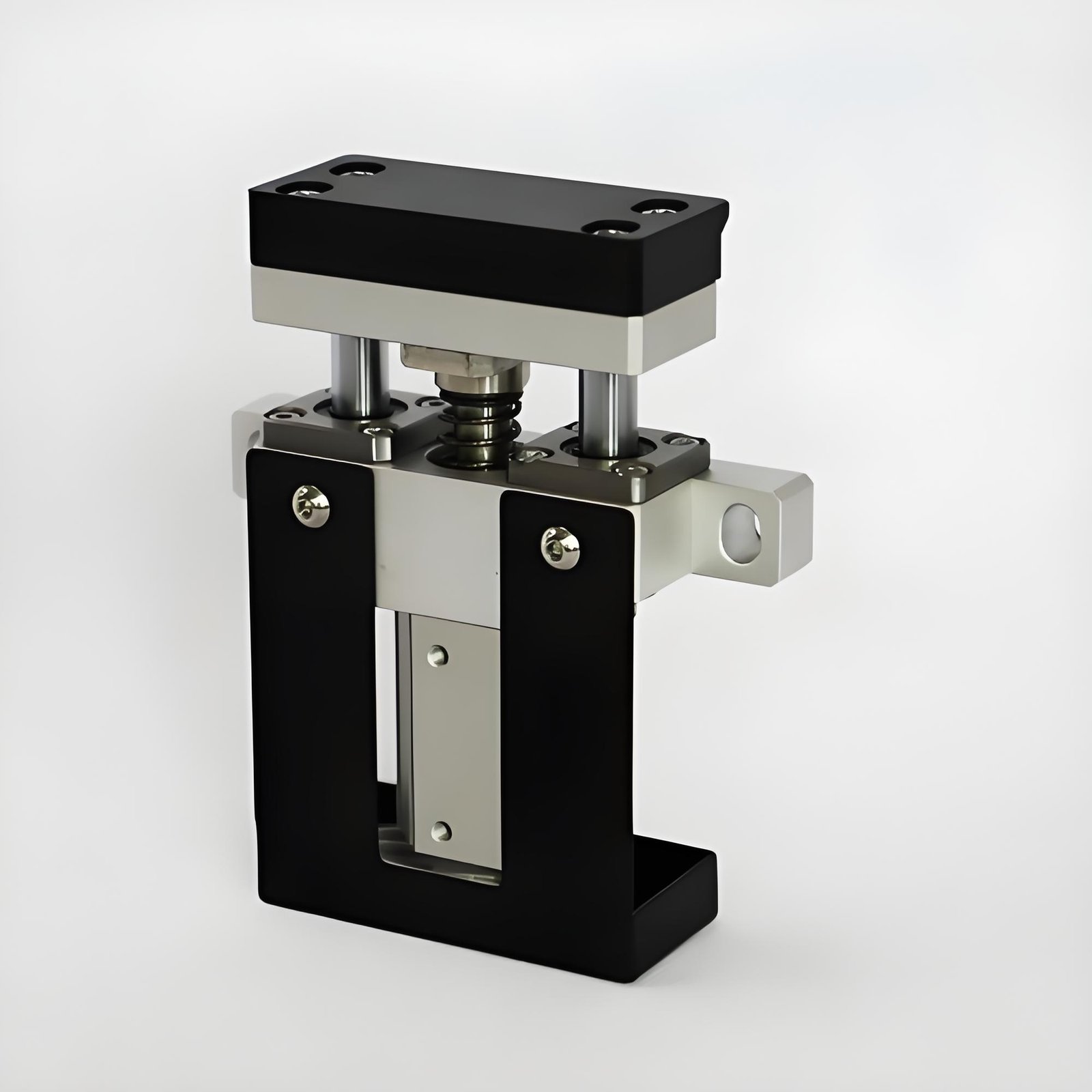

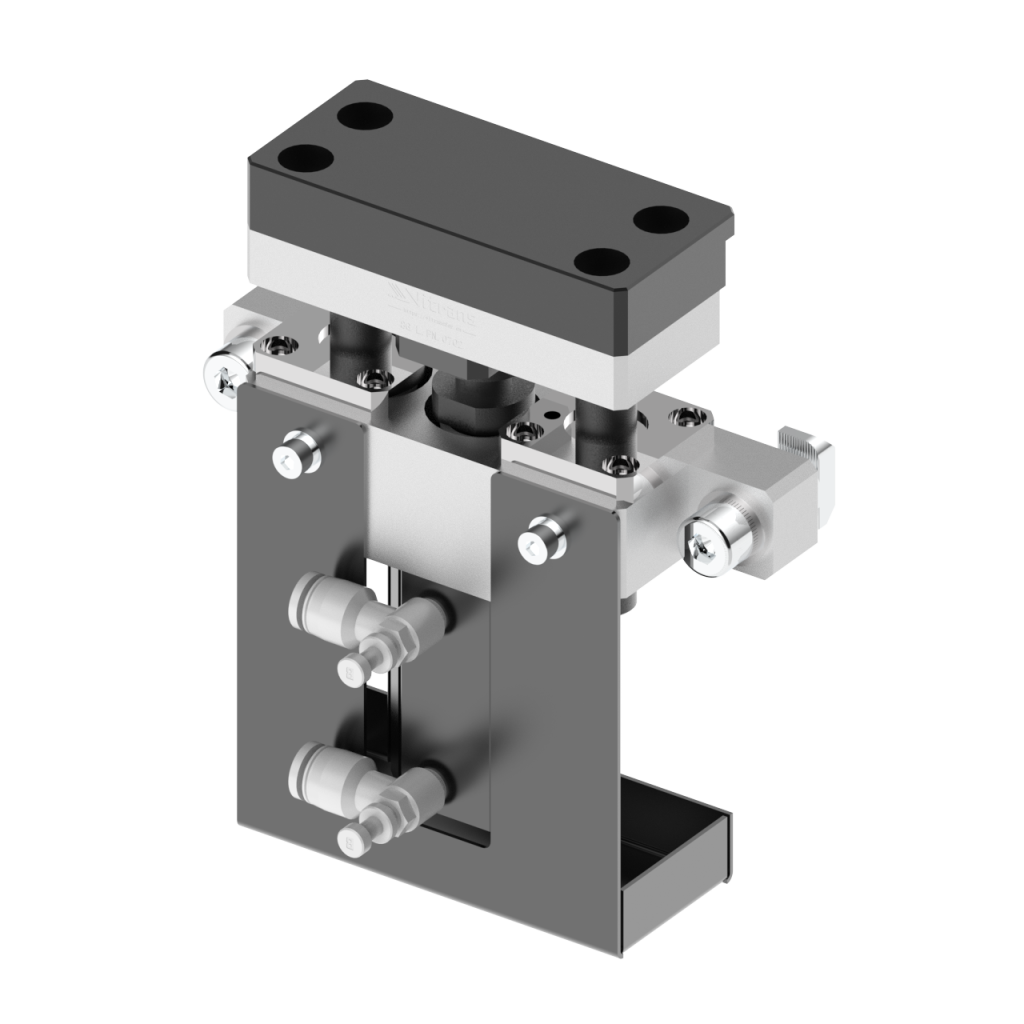

SG/L Slide stopper/ Cross Stopper
The slide stopper is used with lift and transfer unit to divert workpiece pallet to different longitudinal conveyors.
Parameter Specifications
| Product description | Slide stopper |
|---|---|
| Model | SG/L.PN.0702 |
| Permitted load at rated speed | V=6m/min: max pallet weight 50kg |
| Permitted load at rated speed | V=9m/min: max pallet weight 50kg |
| Permitted load at rated speed | V=12m/min: max pallet weight 35kg |
| Permitted load at rated speed | V=15m/min: max pallet weight 25kg |
| Permitted load at rated speed | V=18m/min: max pallet weight 20kg |
Details
SG/L pneumatic Stopper Specification:
- Model code : SG/L.PN.0702
- Allowed max.Loading:50kg (under pallet speed 6m/min)
- Stopper type:pneumatic
- Acting type:double acting
- Air connector diameter: 6mm
- installing accessory:including
- solenoid valve:excluding
- Sensor:excluding
Key benefits:
- Stopper loading capability is relative with conveyor speed
- Stopper rated loading 50kg is base on conveyor speed 6m/min
- For commom conveyor speed 18m/min, the stopper allowed loading is 20kg
Double acting stopper:

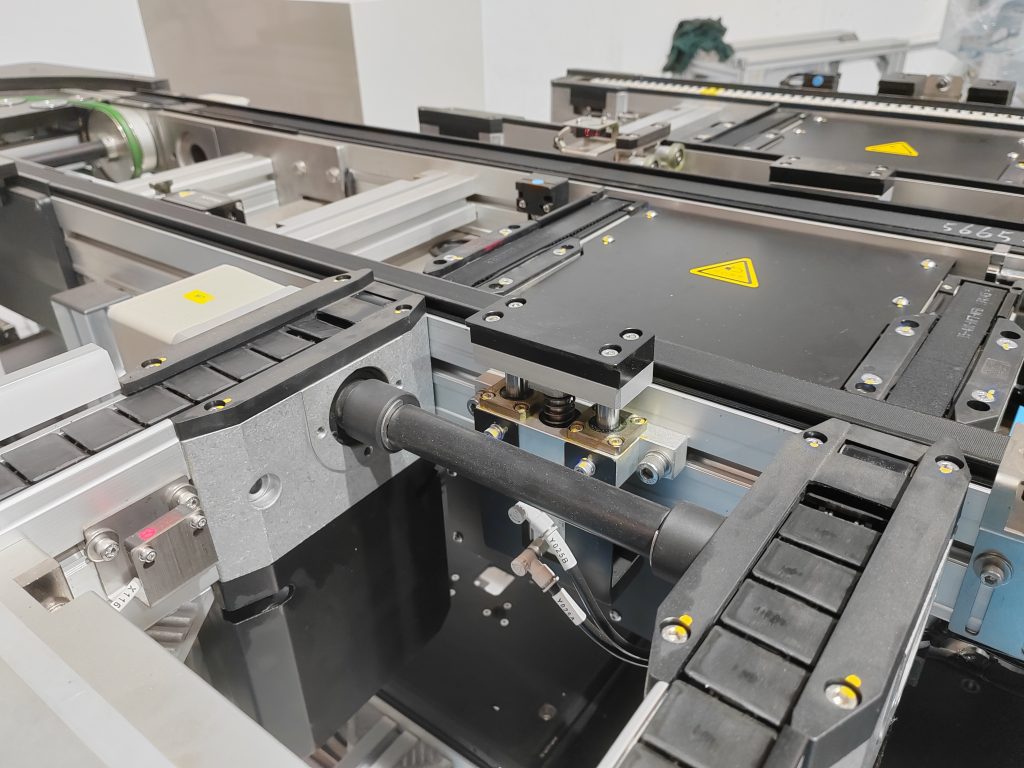

Double acting stopper can be controlled to stop pallet or let pallet pass without stopping. It is specially used at cross area to divert pallets into two different direction .
