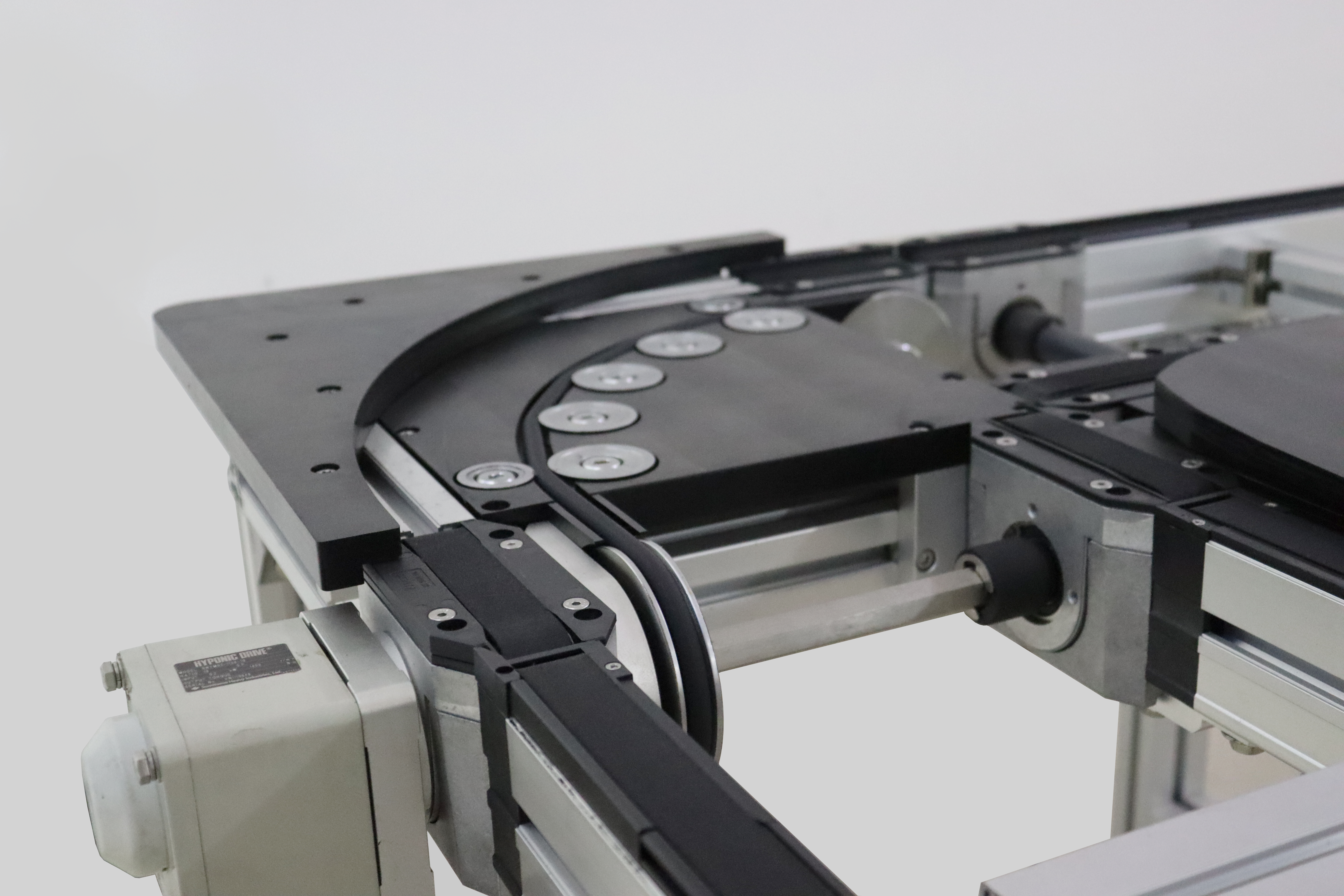

KV/180 Degree Belt Conveyor Curve
Parameter Specifications
| Workpiece pallet width(mm) | 160,240,320,400 |
|---|---|
| Workpiece pallet length(mm) | 160,240,320,400 |
| Combination options(mm) | 160 x 160、240 |
| Combination options(mm) | 240 x 160、240、320 |
| Combination options(mm) | 320 x 240、320、400 |
| Combination options(mm) | 400 x 320、400 |
| Permitted maximum load(kg) | 20 |
| Permitted maximum surface load(kg/cm) | 1 |
| Rated speed(m/min) | 0,6,9,12,15,18 |

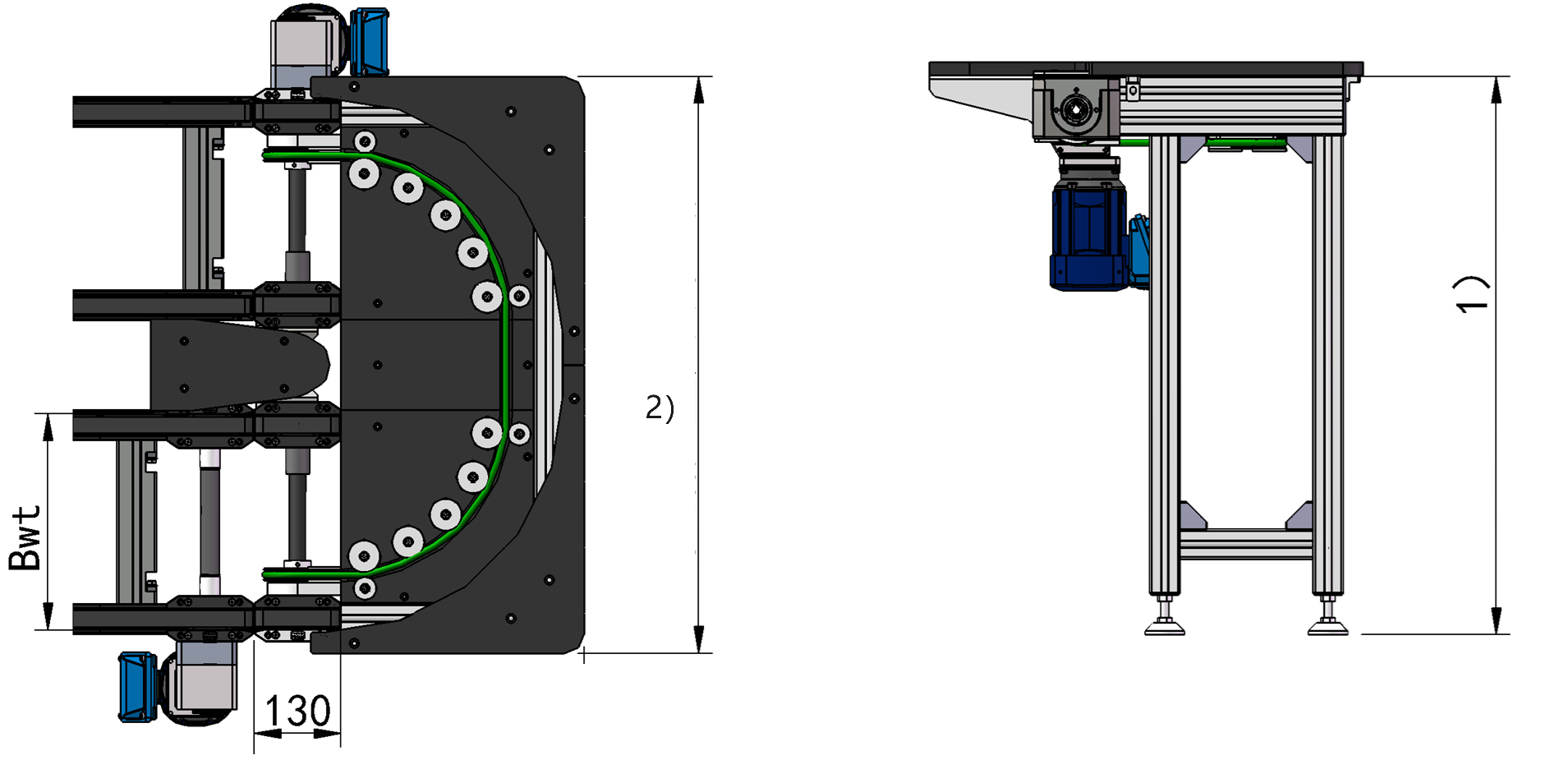

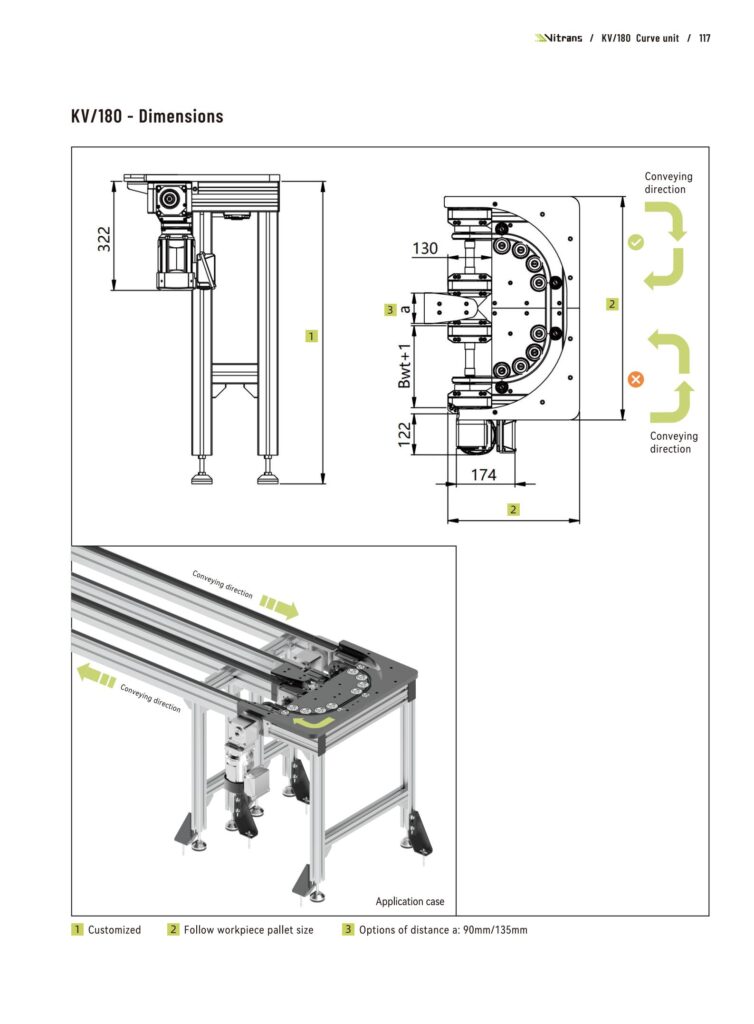

| Distance of conveyors | 90,135 |
| Motor type | Three phase motor |
| Conveying direction | C0(Clockwise) / CL(Anti-clockwise) |
| Working voltage | 220/380AC |
| Working frequency | 50Hz |
| Motor connection | Terminal box |
Details

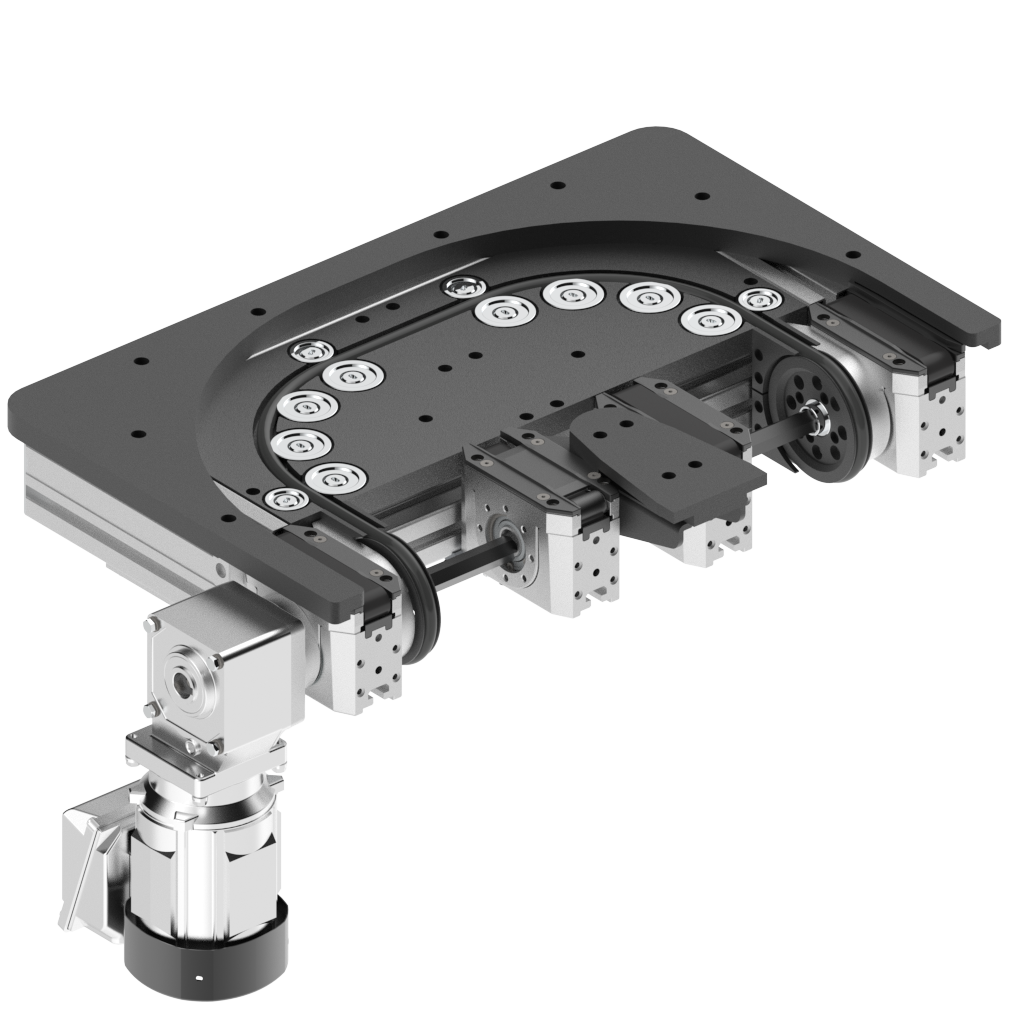

KV2/180 Round belt conveyor curve Specification:
- Conveyor medium : Round belt
- Pallet width in transport direction /mm: 160, 240, 320, 400 (160≤Bwt≤400)
- Pallet length in transport direction /mm: 160, 240, 320, 400 (160≤Bwt≤400)
- Nominal speed /(m/min): 6, 9, 12, 15, 18
- Max. Load /kg: 20
- Drive method: 3 phase motor
- Motor mounting method: L, R, M
- Motor mounting direction: 0°, 90°, 180°, 270°
- Voltage /V: 220/380 AC
- Frequency /Hz: 50
- Motor connection: Terminal box
Key benefits:
- Accumulated is not allowed
- Compact design for Space optimization.
- Easy maintaining，low dust
- Modular design for quick installing
- Low noise during operating
suitable for small pallet and product with weight ＜20kg

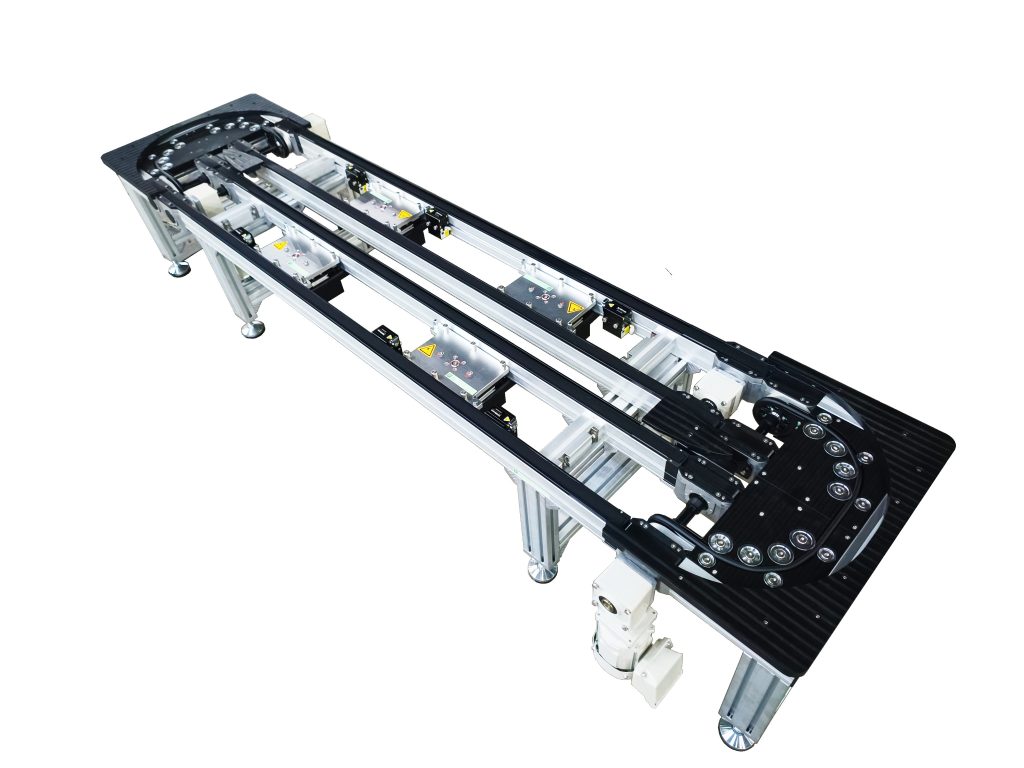

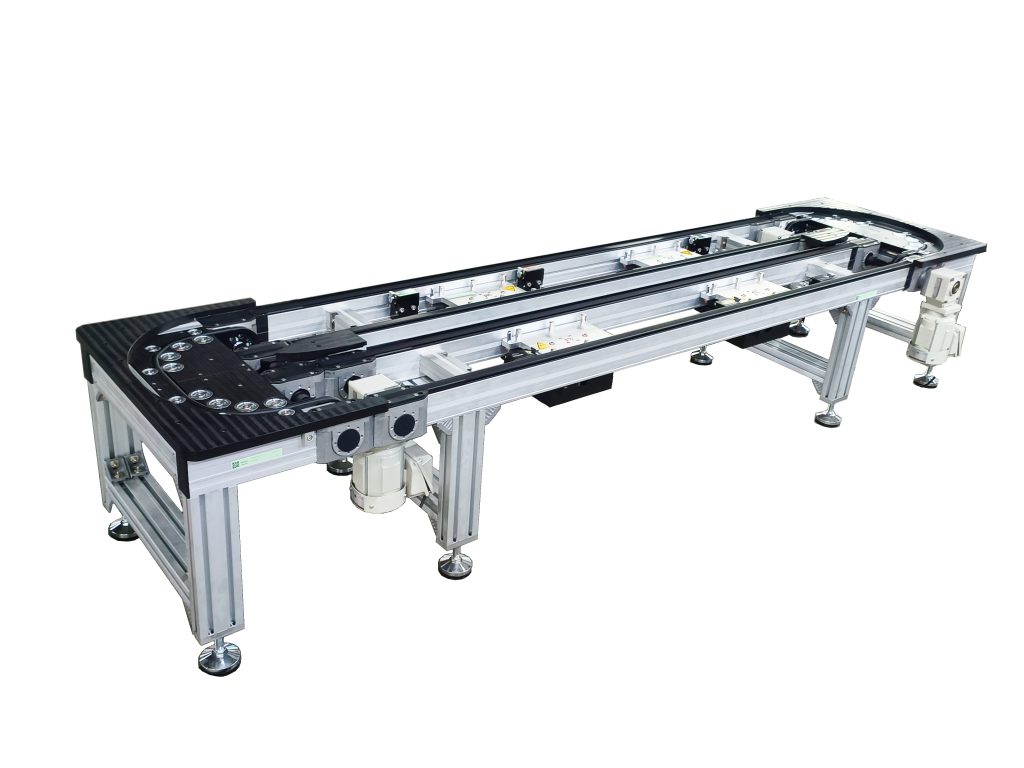

The Round Belt Conveyor Curve Advantages
In the intricate ballet of Pallet Conveyor Systems, the Round Belt conveyor Curve emerges as a game-changer, introducing a paradigm shift in the way materials navigate through production lines. Let’s explore the unique advantages that make this conveyor curve an indispensable component in modern automated material handling.
