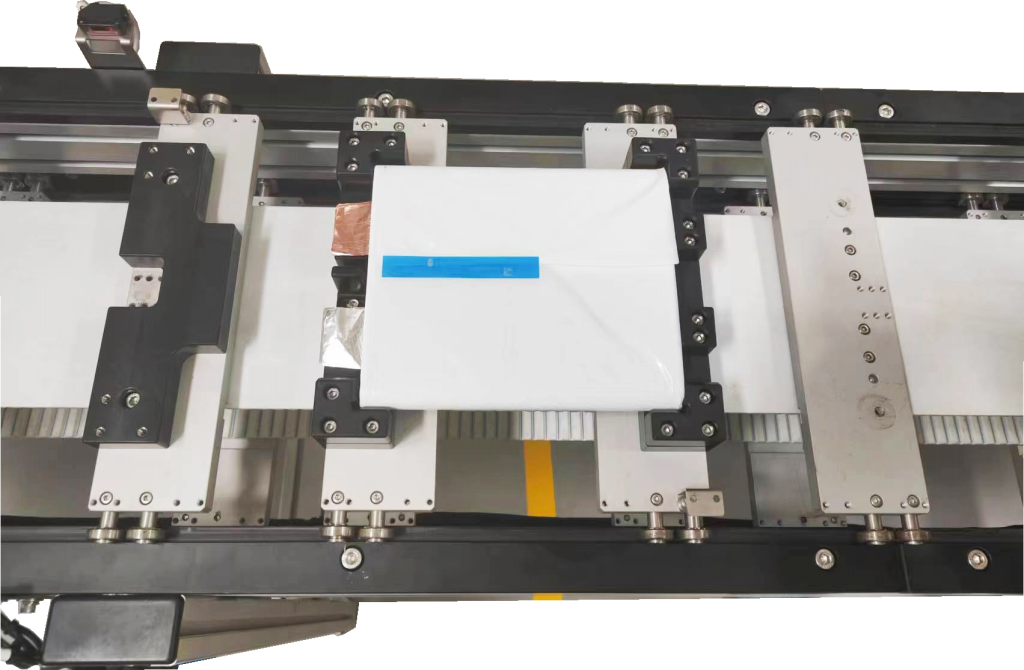

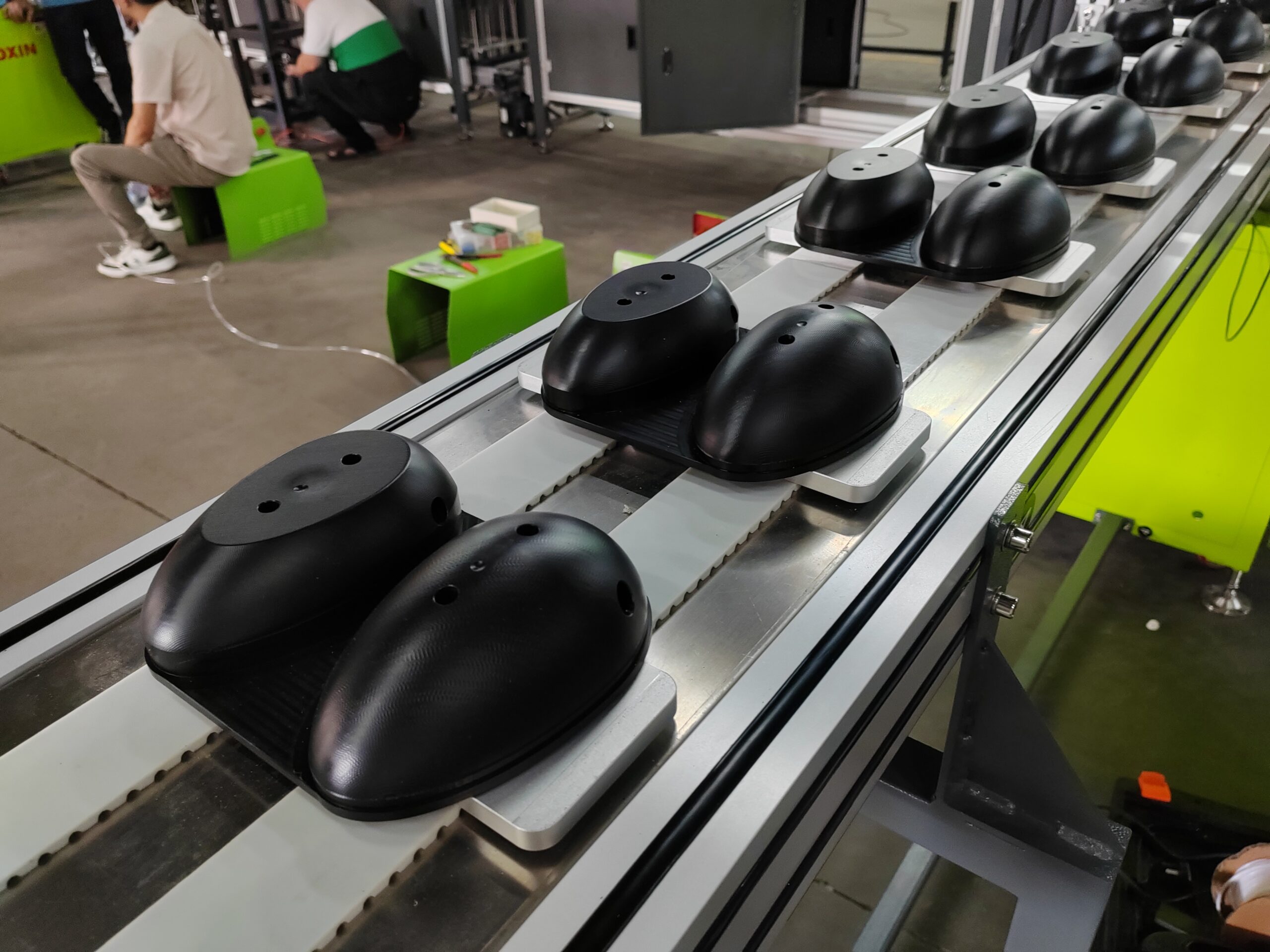

Zaman Kayışı Takma Konveyörü
Ayrıntılar
Attachment conveyoru00a0Specification:
- Konveyör malzemesi: Zincir kayışı
- Pallet/Attachment/fixture:tCustomize according to product outline
- Konveyör uzunluğu /mm :2000u2264Lu22646000
- Nominal speed /(m/min):t6, 9, 12, 15, 18
- Maks. Yük /kg:t150
- Sürüş yöntemi:Servo motor with reducer
- Stop method:Motor control
- Stop precisionu00b12mm
Başlıca avantajlar:
- self circling:pallet can circle without lifter or other modules
- No need stoppers:pallet stop by controlling servo motor
- Accurate locate:Pallet stop precisionu00b12mm.When using additional positioning unit,locate precision can be u00b10.5mm;
- Low particle and noisy:No relative motion between pallet and transfer medium
