| Payment Type: | T/T |
| Incoterm: | FOB,CIF,EXW,DDP |
| Min. Order: | 1 Set/Sets |
| Transportation: | Ocean |
| Port: | Shenzhen |
Model No.: RPC
Brand: Vitrans
Applicable Industry: Manufacturing Plant, Other
Out-of-warranty Service: Online Support, Video Technical Support, Spare Parts
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): United States, Viet Nam, Philippines, India, Mexico, Malaysia, None
Showroom Location (in Which Countries Are There Sample Rooms Overseas): None
Status: New
Material: Stainless Steel
Structure: Conveyor System
Place Of Origin: China
Power (Watts): Other, 750w
Warranty Period: 1 Year
Mechanical Test Report: Provided
Video Factory Inspection: Provided
Core Component Warranty Period: 1 Year
Core Components: Other, Motor, Bearing, Gear
Conveyor Drive Method: Servo Motor with Reducer
Conveyor Length: Customized
| Selling Units | : | Set/Sets |
| Package Type | : | Wooden cases |
| Picture Example | : |
|

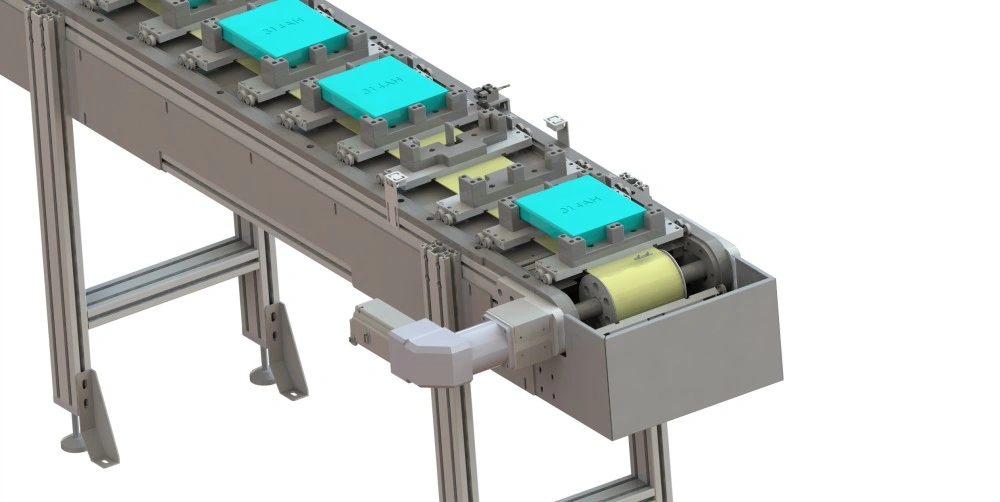

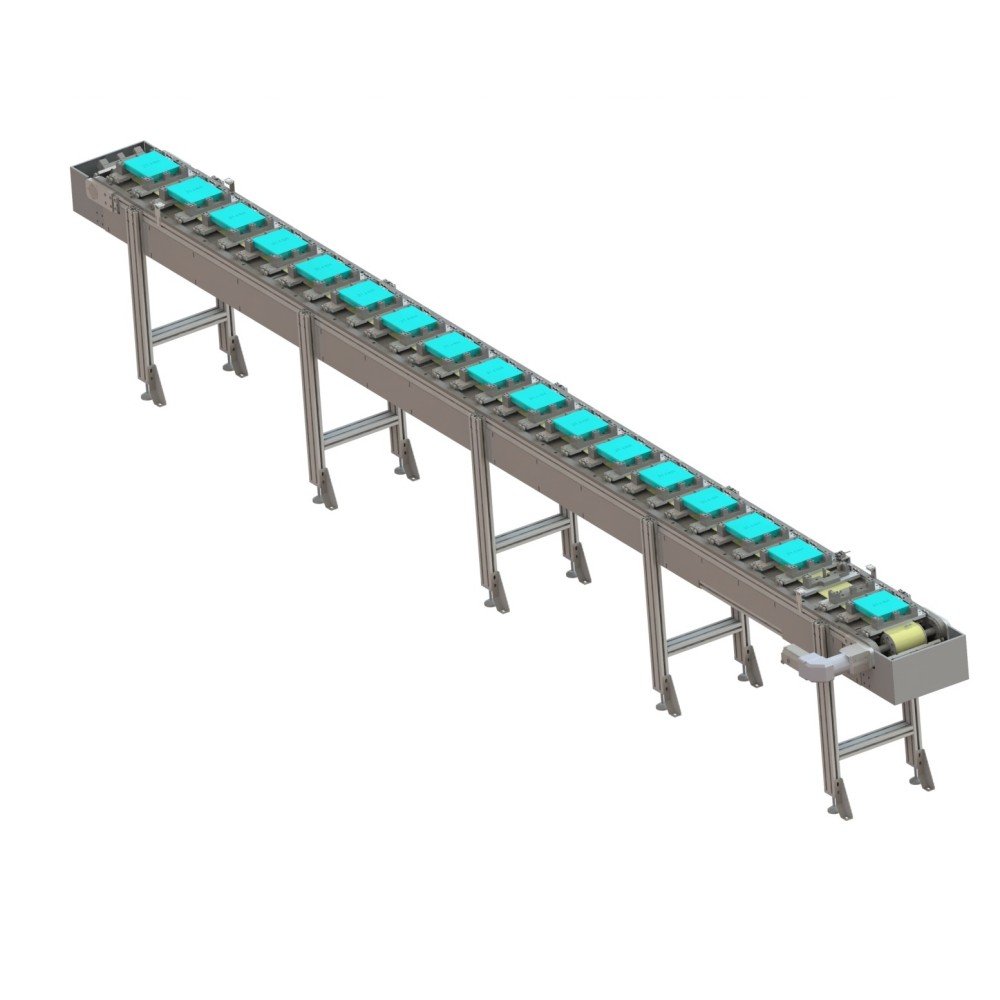

Recirculating Pallet(Attachment) Conveyor Design:
Recirculating Pallet(Attachment) conveyor Specification:
Conveyor Drive Method Servo Motor with Reducer Product Positioning Accuracy ±0.1mm Pallet/Fixture/Attachment Customized basis on product outline dimensions Conveyor Speed /(m/min) 6 to 18
Recirculating Pallet(Attachment) Conveyor Application:
What is Recirculating Pallet Conveyor?
Recirculating pallet conveyor is a type of directly arranging and fixing pallets or product fixtures on a timing belt in an equidistant manner. The running speed and step of the pallets are controlled by servo motor. The size and structure of the pallets on the Recirculating Pallet Conveyor are designed according to product outline dimensions, and the total length of the conveyor depends on how many workstations and pallets need to be arranged.
What are the advantages of Recirculating Pallet Conveyor?
Recirculating Pallet Conveyor: Due to the pallets are arranged equidistant and fixed on the timing belt, they can be circulated separately without the need for recycle conveyor or double layer conveyor and lifters. Therefore, the mechanical and control costs of the entire system are relatively lower.
Recirculating Pallet Conveyor is driven by servo motor, so it can accurately control the stopping position of Pallet without the need for lift and locate units.
