Home> Products> Belt Conveyor System> Vitrans Flat Belt Conveyor | Pallet Conveyor

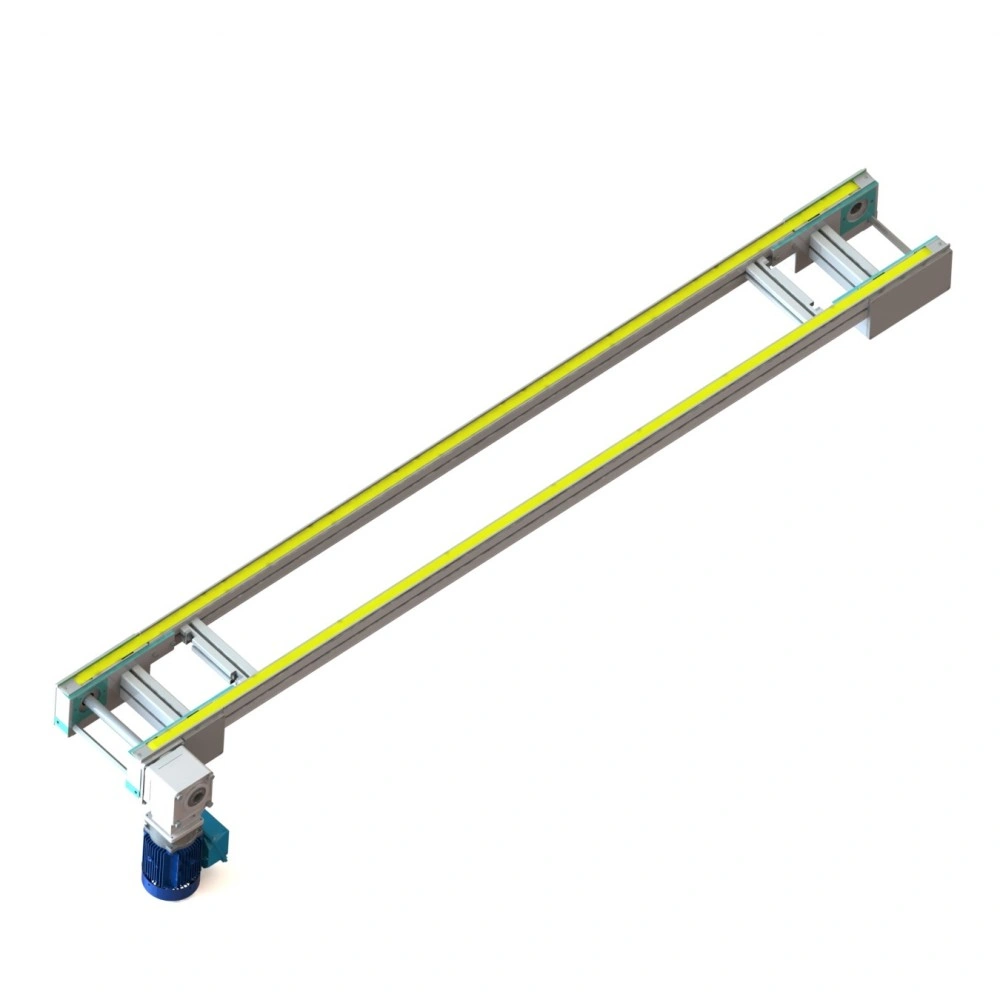

Vitrans Flat Belt Conveyor | Pallet Conveyor
Vitrans Flat Belt Conveyor | Pallet Conveyor
Vitrans Flat Belt Conveyor | Pallet Conveyor
Vitrans Flat Belt Conveyor | Pallet Conveyor
Vitrans Flat Belt Conveyor | Pallet Conveyor

Vitrans Flat Belt Conveyor | Pallet Conveyor

Get Latest Price
Payment Type:L/C,T/T
Incoterm:FOB,CIF,EXW,DDP
Min. Order:1 Set/Sets
Transportation:Ocean,Air
Port:Shenzhen
Product Attributes

Model No.FC2

BrandVitrans

Applicable IndustryManufacturing Plant, Other

Out-of-warranty ServiceOnline Support, Video Technical Support, Spare Parts

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets)Malaysia, Thailand, Indonesia, India, Philippines

Showroom Location (in Which Countries Are There Sample Rooms Overseas)None

StatusNew

MaterialAluminium

StructureBelt Conveyor

Place Of OriginChina

Power (Watts)750w

Warranty Period1 Year

Width Or DiameterOther

Mechanical Test ReportProvided

Video Factory InspectionProvided

Marketing TypeOther

Core Component Warranty Period1 Year

Core ComponentsBearing, Motor

Load Capacity1kg/cm

Max.Conveyor Speed20m/min

Conveyor Length3000mm-18000mm

Conveyor Width160mm-1200mm

Conveyor HeightCustomized

Transfer MediumFlat Belt

StucturePallet Conveyor

MotorThree Phase-750W

CertificationCE Certificate

Packaging & Delivery
Selling Units : Set/Sets
Package Type : ply-wood case
Picture Example :
Flat Belt Conveyor for Pallet Handling System
Product Description


Flat Belt Conveyor Design:

Flat Belt Conveyor Design


Flat Belt conveyor Specification:

Flat Belt Conveyor Specification



What are the differences between Flat Belt Conveyor and Timing belt conveyor?

Specification Comparison Flat belt conveyor Timing Belt Conveyor
Transfer Medium Flat Belt Timing Belt
Pallet Width in Transfer Direction /mm 160 to 800 160 to 800
Reverse Moving NO YES
conveyor Length /mm 300 to 6000 3000 to 18000
Conveyor Loading Capacity 1kg/cm 1kg/cm
Conveyor Total Loading  /kg 60 250
Conveyor Motor 0.2 to 0.37 kw 0.75 kw


The Intelligent Choice for Premium Pallet Handling

Flat Belt Conveyor stands out as a primary conveyor type in pallet handling systems, designed specifically for efficient pallet transportation. Comprising a drive unit, return unit, and conveyor section, Vitrans employs special materials in crafting the flat belt and wear-resistant strips, ensuring wear resistance, long lifespan, minimal dust generation, and outstanding performance.
Flat Belt Conveyor For Pallet Handling

Key Features:

1)Exceptional Load Capacity and Durability:

  • Load Capacity: Renowned for its outstanding load capacity of 1 kg/cm, with the maximum load per pallet depending on its size.
  • Durability: The flat belt and wear-resistant strips, manufactured with special materials by Vitrans, exhibit exceptional durability, ensuring reliable operation over extended periods.
2)Efficient Motor and Total Load Capacity:

  • Motor Capacity: Driven by a single 0.75 kW motor, with a total load capacity of up to 250 kg.


3)Considerable Length and Stability:

  • Maximum Length: Individual flat belt conveyors can reach a maximum length of 18 meters, driven by a single motor, ensuring that the belt stays on course without deviation.
Belt Conveyors



Applications:

  • Industrial Production Lines: Flat Belt Conveyors serve as a primary conveyor in industrial production lines, efficiently meeting the demands of pallet transportation.
  • Automation Systems: As a core component of automation systems, Flat Belt Conveyors can be integrated into various automated production environments, enhancing overall efficiency.
  • Assembly Line Conveyance: Suitable for assembly line conveyance, ensuring smooth transfer of products from one workstation to the next, facilitating efficient manufacturing processes.
  • Pallet Handling Solutions: Flat Belt Conveyors provide a reliable conveyance solution for various types of pallets, offering intelligent solutions for pallet handling and management.

Belt Conveyor and Pallet Conveyor

Vitrans' Flat Belt Conveyor, with its outstanding performance and reliability, has become an indispensable part of modern production environments. Crafted with special materials, it ensures a long lifespan and excellent wear resistance, providing efficient and sustainable pallet handling solutions for a variety of industrial applications.
Flat Belt Conveyor
