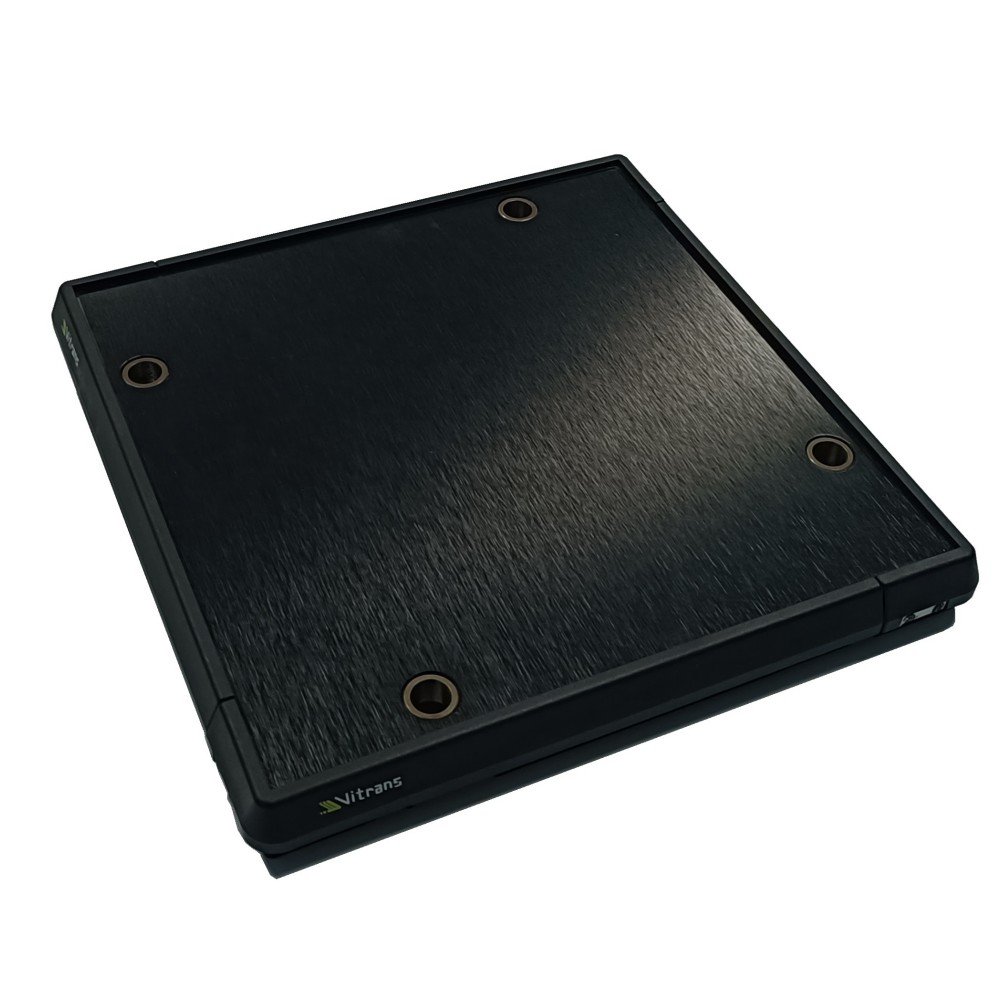

Vitrans Conveyor Pallet Design:

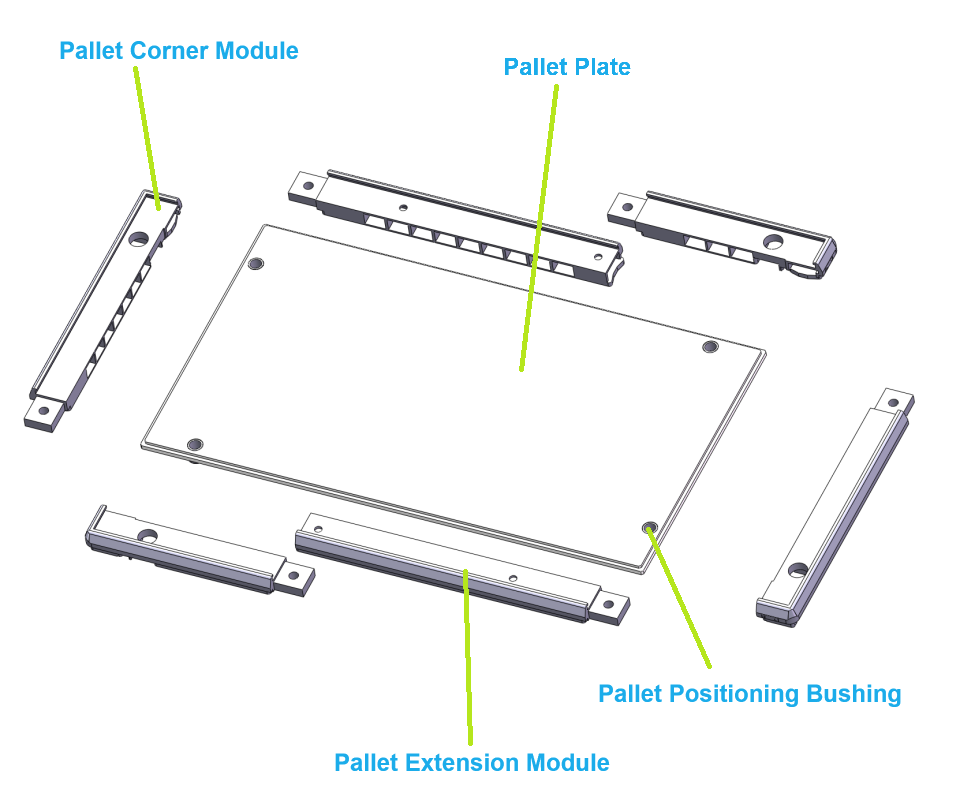

Conveyor Pallet is assembled of what components?
Vitrans conveyor Pallet is composed of corner modules, extension modules, positioning bushings, and pallet plates, facilitating easy installation, disassembly, and maintenance replacement.

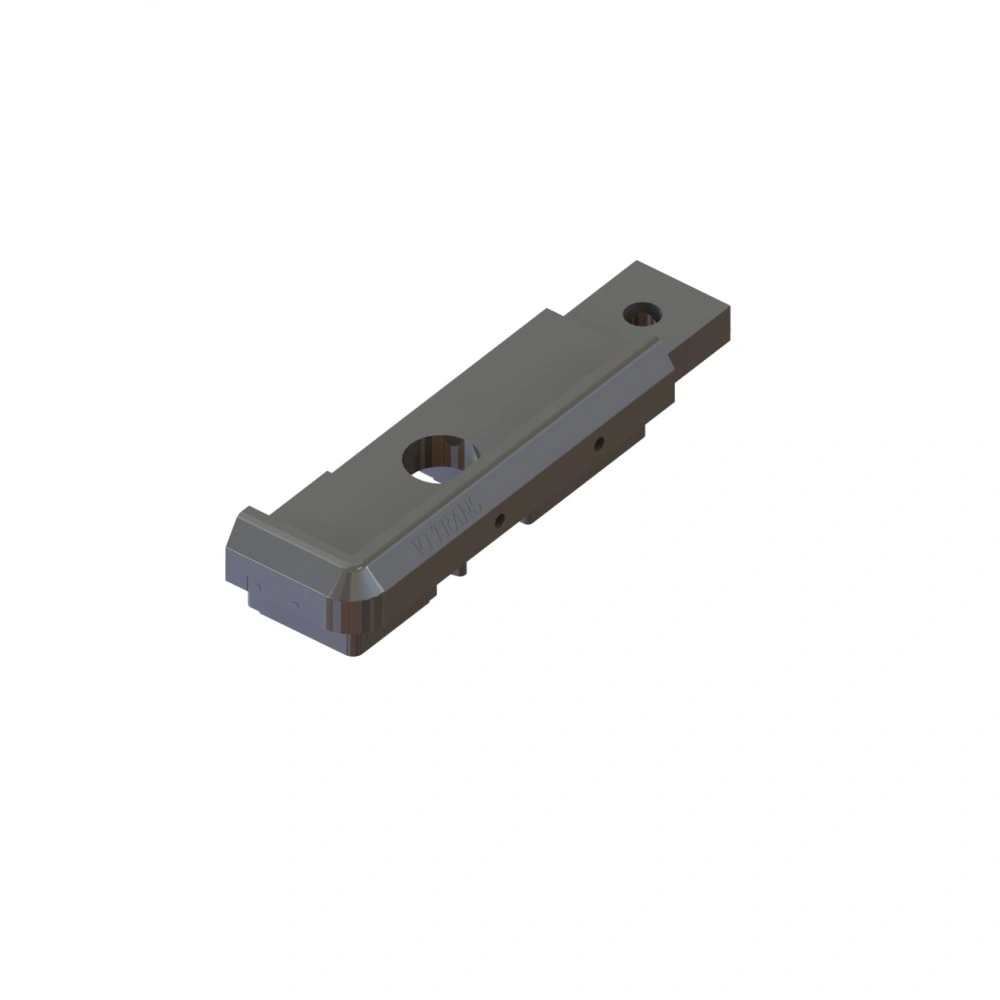

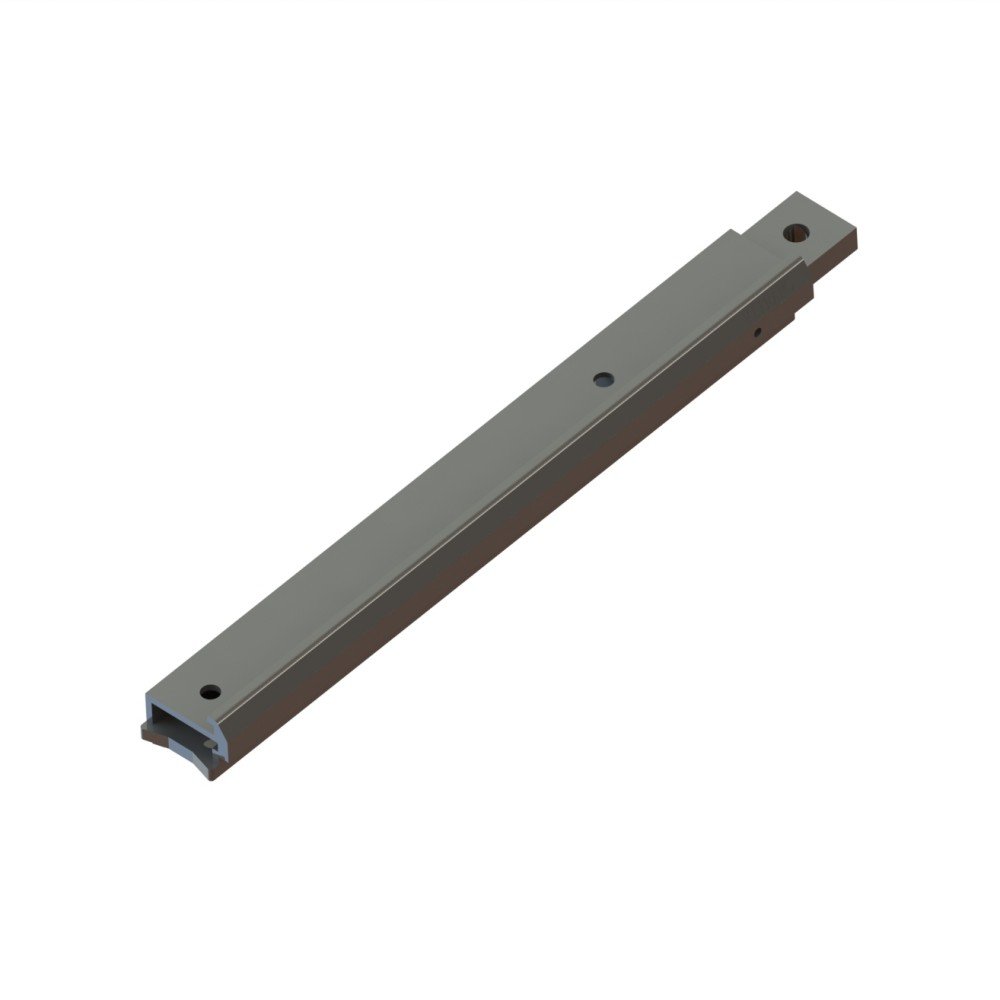

The Corner module and extension module need to come into contact with the conveying medium. Since the Pallet Conveyor allows accumulation, these modules experience continuous relative motion with the conveying medium. To meet the requirements of reducing dust generation and ensuring the longevity of pallets, Vitrans' Corner module and extension module are made of highly wear-resistant PA material.
Vitrans Corner Module and extension module option sizes:
| Module Specification | Part Code: (For Belt Transfer Medium) | Part Code: (For Chain Transfer Medium) |
| Pallet Corner Module 160mm | W-P-C-PA160 | W-P-C-PE160 |
| Pallet Corner Module 240mm | W-P-C-PA240 | W-P-C-PE240 |
| Pallet Corner Module 320mm | W-P-C-PA320 | W-P-C-PE320 |
| Pallet Corner Module 400mm | W-P-C-PA400 | W-P-C-PE400 |
| Pallet Extension Module 60mm | W-P-E-PA60 | W-P-E-PE60 |
| Pallet Extension Module 320mm | W-P-E-PA320 | W-P-E-PE320 |

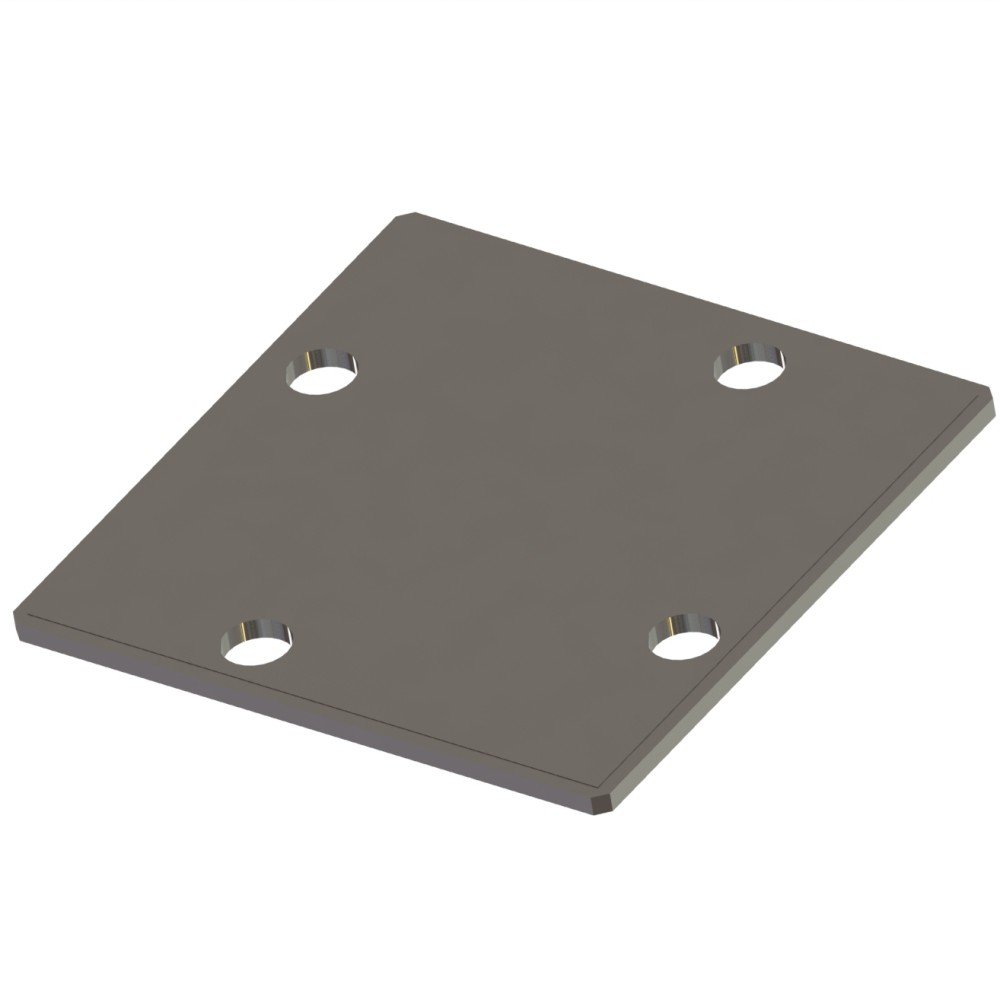

Pallet plate is primarily used for carrying products or fixtures. Vitrans' Pallet plate is made of aluminum alloy with different sizes and thicknesses, offering the advantages of high strength and lightweight. We also accept customizations for installing holes according to customer needs. Upon receiving the pallet plate, customers can directly fix their products or fixtures onto it without the need for secondary processing.
Vitrans Pallet Plate option sizes:
| Pallet Plate Specification | Range |
| Plate Material | Alloy with Black anodizing treatment |
| Plate Thickness /mm | 5mm/ 8mm/ 12mm |
| Plate Width /mm | 160 to 1080 |
| Plate Length /mm | 160 to 1080 |

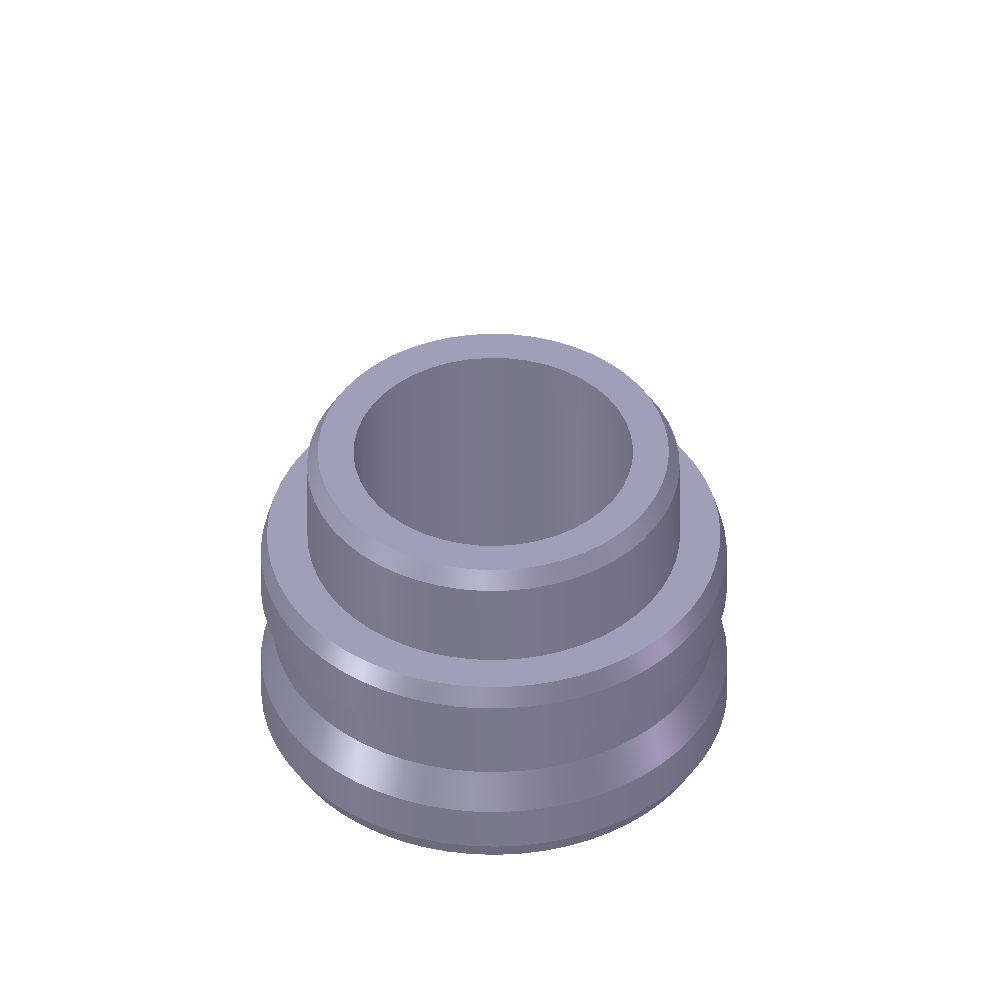

Pallet bushing is not only used to secure the Corner module and plate together, but it is primarily utilized in conjunction with the positioning unit's locating pin to accurately position the pallet.
Vitrans Pallet Bushing option sizes:
| Pallet Bushing Specification | Bushing Part Code |
| Bushing step height 5mm (for 5mm plate) | W-P-B5 |
| Bushing step height 8mm (for 8mm plate) | W-P-B8 |
| Bushing step height 12mm (for 12mm plate) | W-P-B12 |
