Home> Products> System Unit> Conveyor Rotate Unit> Vitrans Transverse Rotary Unit for Pallet Conveyor System

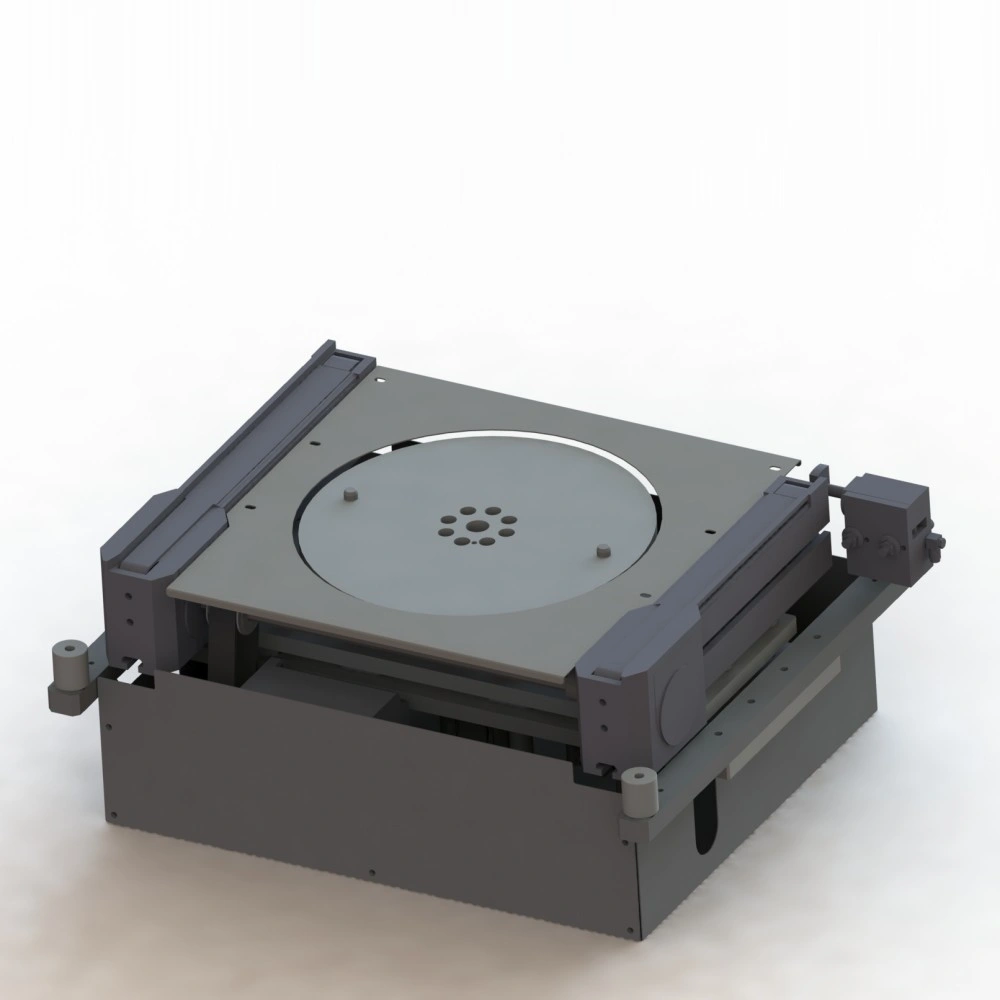

Vitrans Transverse Rotary Unit for Pallet Conveyor System
Vitrans Transverse Rotary Unit for Pallet Conveyor System
Vitrans Transverse Rotary Unit for Pallet Conveyor System
Vitrans Transverse Rotary Unit for Pallet Conveyor System

Vitrans Transverse Rotary Unit for Pallet Conveyor System

Get Latest Price
Payment Type:T/T
Incoterm:FOB,DDP,CIF,EXW
Min. Order:1 Set/Sets
Transportation:Ocean,Air
Port:Shenzhen
Product Attributes

Model No.ET-PR

BrandVitrans

Applicable IndustryManufacturing Plant, Other

Out-of-warranty ServiceVideo Technical Support, Online Support, Spare Parts

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets)Indonesia, Malaysia, India

Showroom Location (in Which Countries Are There Sample Rooms Overseas)None

StatusNew

MaterialAluminium

StructureConveyor System

Place Of OriginChina

Power (Watts)Other

Warranty Period1 Year

Mechanical Test ReportProvided

Video Factory InspectionProvided

Core Component Warranty Period1 Year

Core ComponentsMotor, Gear, Bearing

Transfer MediumTiming Belt

Load Capacity30KG

Conveyor DriveStepping Motor

Lift DriveCylinder

Rotary DriveCylinder

Packaging & Delivery
Selling Units : Set/Sets
Package Type : Wooden cases
Picture Example :
Product Description

Pallet Transverse Rotary Unit Design:

Pallet Transverse Rotary Unit Design

Pallet Transverse Rotary Unit Specification:

Pallet Width in transfer direction /mm 160mm to 640mm
Pallet Length in transfer direction /mm 160mm to 640mm
Pallet Transfer medium Timing Belt
Pallet Transfer drive method Stepping motor
Pallet Lift drive method Cylinder
Pallet Rotary drive method Cylinder
Pallet Rotate angle  90degree or 180 degree

Pallet Transverse Rotary Unit: Enhancing Precision and Flexibility in Conveyor Systems

In the ever-evolving landscape of conveyor systems, the Pallet Transverse Rotary Unit emerges as a groundbreaking mechanism, seamlessly combining the functionalities of transverse and rotary units into a single, versatile device.


Addressing Forward Movement Challenges:

One of the primary challenges in conveyor systems is the alteration in the forward movement of pallets after passing through a transverse unit. The Pallet Transverse Rotary Unit ingeniously resolves this issue by incorporating a rotary unit that dynamically adjusts the direction of the pallets, ensuring a smooth and uninterrupted flow.



Similar to Curve Units, But More:

Functionally akin to curve units, the Pallet Transverse Rotary Unit goes a step further by integrating transverse and rotary capabilities. This dual-functionality not only enhances the adaptability of conveyor systems but also opens up new possibilities for efficient material handling in various manufacturing scenarios.


Transmission Medium and Actuation:

The Pallet Transverse Rotary Unit utilizes a timing belt as its transmission medium, driven by a stepper motor. The precision of the timing belt ensures accurate and synchronized movement. The unit's lifting and rotating actions are orchestrated by lift cylinders and rotation cylinders, respectively, adding an extra layer of control and customization to the conveyor process.



Common and Crucial:

Widely adopted in Pallet Conveyor Systems, the Pallet Transverse Rotary Unit has become a common yet crucial component. It not only addresses the limitations of transverse units but also provides a space-efficient solution to the spatial challenges posed by curve units.


Chain Conveyor And Pallet Rotary Transverse Conveyor Unit

Benefits at a Glance:


Seamless integration of transverse and rotary functionalities.

Mitigation of forward movement challenges in pallets.

Efficient use of space compared to traditional curve units.

Utilization of timing belts for precise and synchronized transmission.

Actuation through stepper motors, lift cylinders, and rotation cylinders.

Pallet Transverse Rotary Unit For Conveyor System


As manufacturing processes continue to demand precision, adaptability, and space efficiency, the Pallet Transverse Rotary Unit stands out as a reliable and innovative solution. Its seamless integration of transverse and rotary features marks a significant advancement in the quest for more efficient and versatile conveyor systems.
