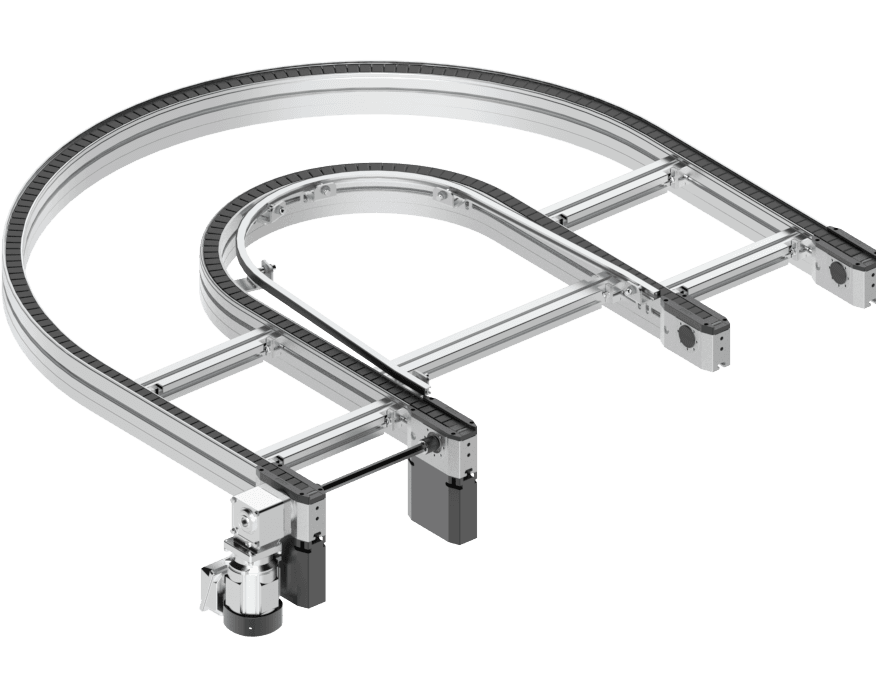

CV/180도 플랫 탑 체인 컨베이어 커브
매개변수 사양
| 공작물 팔레트 폭(mm) | 160,240,320,400,480,560,640,720,800,1040,1200 |
|---|---|
| 공작물 팔레트 길이(mm) | 160,240,320,400,480,560,640,720,800,1040,1200 |
| 조합 옵션(mm) | 160 x 160、240、320 |
| 조합 옵션(mm) | 240 x 160、240、320、400、480 |
| 조합 옵션(mm) | 320 x 160、240、320、400、480 |
| 조합 옵션(mm) | 400 x 240、320、400、480、560、640、720 |
| 조합 옵션(mm) | 480 x 320、400、480、560、640、720、800 |
| 조합 옵션(mm) | 560 x 320、400、480、560、640、720、800 |
| 조합 옵션(mm) | 640 x 320、400、480、560、640、720、800、1040 |
| 조합 옵션(mm) | 720 x 400、480、560、640、720、800、1040 |
| 조합 옵션(mm) | 800 x 480、560、640、720、800、1040 |
| 허용 최대 하중(kg) | 60 |
| 허용 최대 표면 하중(kg/cm) | 1 |
| 정격 속도(m/min) | 0,6,9,12,15,18 |
| 모터 유형 | 3상 모터 |
| 모터 장착 위치 | L(왼쪽), R(오른쪽) |
| 방향 전달 | C0(시계 방향) / CL(반시계 방향) |
| 작동 전압 | 220/380AC |
| 작동 주파수 | 50Hz |
| 모터 연결 | 단자함 |
상세 정보
CV2/180 Flat top chain conveyor curve
- Note: For workpiece pallet length is between 560mm and 1040mm, the dimensions of the curve unit is shown in above drawing. For workpiece pallet length Lwt is less than 800mm, curve unit inner diameter R1 is 320mm. For other lengths, the inner diameter R1 is 400mm.
주요 장점:
- Wear resistant flat top chain, long service life
적재 용량 1kg/cm
suitable for pallet size bigger than 400mm
Allowed accumulating, No affect to cycle time - 관리가 간편하고, 먼지가 적음
- 빠른 설치를 위한 모듈식 설계
- 작동 시 소음이 적음
Revolutionizing Pallet Conveyance: Vitrans’ Flat Top Chain conveyor Curve
Synchronized Automation:
The Flat Top Chain Conveyor Curve seamlessly integrates into 자동 컨베이어 systems, ensuring a synchronized and efficient flow of materials on the assembly line.
Precision Turns, Zero Jams:
Engineered for precision turns, it minimizes the risk of jams, guaranteeing a smooth and uninterrupted material handling process.
Adaptive Modularity:
Its modular design offers unparalleled adaptability, effortlessly fitting into existing conveyor systems or accommodating new configurations for optimized material flow.
Space-Efficient Design:
Featuring a compact turning radius, it excels in space utilization, a critical factor for facilities where every square meter counts.
Heavy weight Champion:
With an exceptional load-carrying capacity, it accommodates a wide range of materials, enhancing the versatility of the entire 컨베이어 시스템.
Pallet Stacking Capability:
Setting itself apart, this conveyor curve allows for pallet stacking operations, adding a layer of flexibility to material handling processes.
