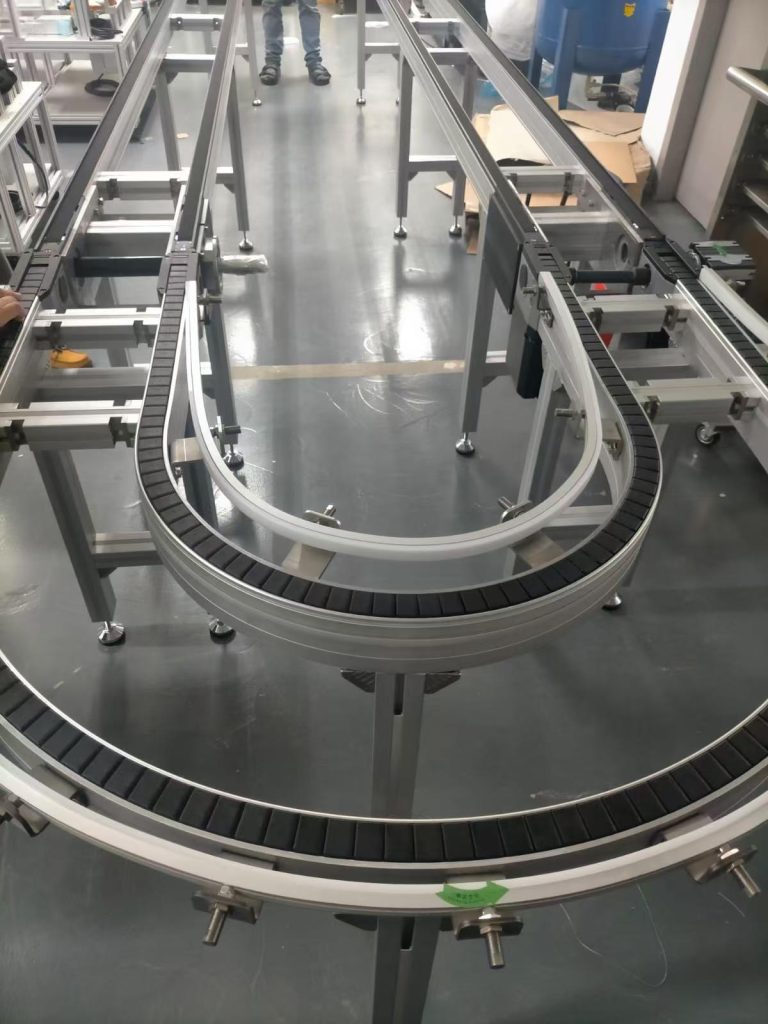

CV/180 Degree Flat Top Chain Conveyor Curve
Parameter Specifications
| Workpiece pallet width(mm) | 160,240,320,400,480,560,640,720,800,1040,1200 |
|---|---|
| Workpiece pallet length(mm) | 160,240,320,400,480,560,640,720,800,1040,1200 |
| Combination options(mm) | 160 x 160、240、320 |
| Combination options(mm) | 240 x 160、240、320、400、480 |
| Combination options(mm) | 320 x 160、240、320、400、480 |
| Combination options(mm) | 400 x 240、320、400、480、560、640、720 |
| Combination options(mm) | 480 x 320、400、480、560、640、720、800 |
| Combination options(mm) | 560 x 320、400、480、560、640、720、800 |
| Combination options(mm) | 640 x 320、400、480、560、640、720、800、1040 |
| Combination options(mm) | 720 x 400、480、560、640、720、800、1040 |
| Combination options(mm) | 800 x 480、560、640、720、800、1040 |
| Permitted maximum load(kg) | 60 |
| Permitted maximum surface load(kg/cm) | 1 |
| Rated speed(m/min) | 0,6,9,12,15,18 |
| Motor type | Three phase motor |
| Motor mounting location | L(left), R(Right) |
| Conveying direction | C0(Clockwise) / CL(Anti-clockwise) |
| Working voltage | 220/380AC |
| Working frequency | 50Hz |
| Motor connection | Terminal box |
Details

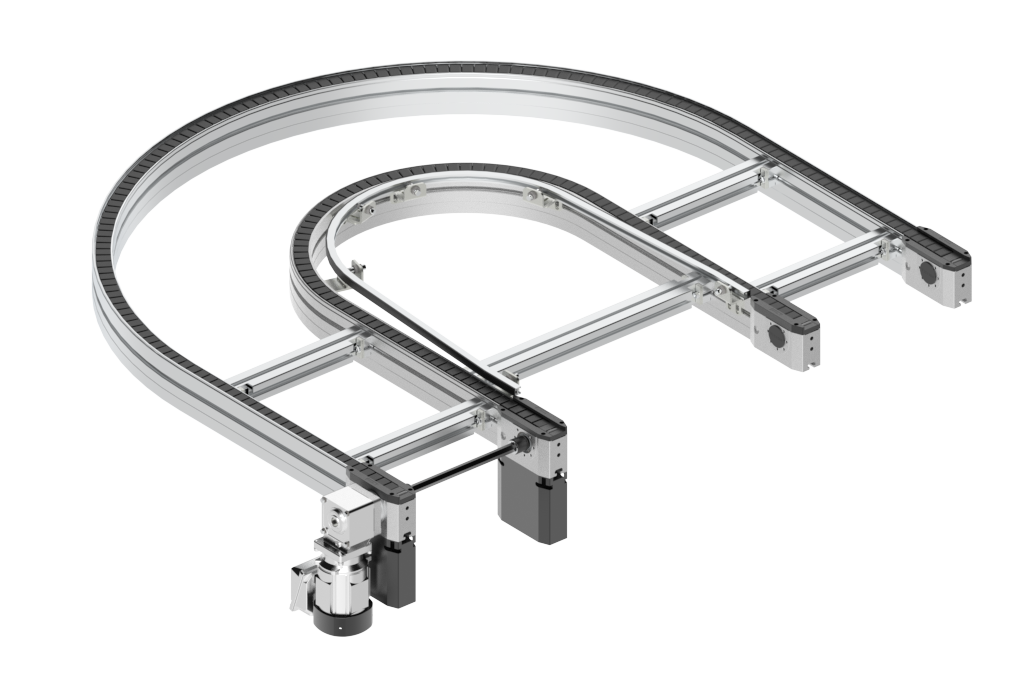

CV2/180 Flat top chain conveyor curve

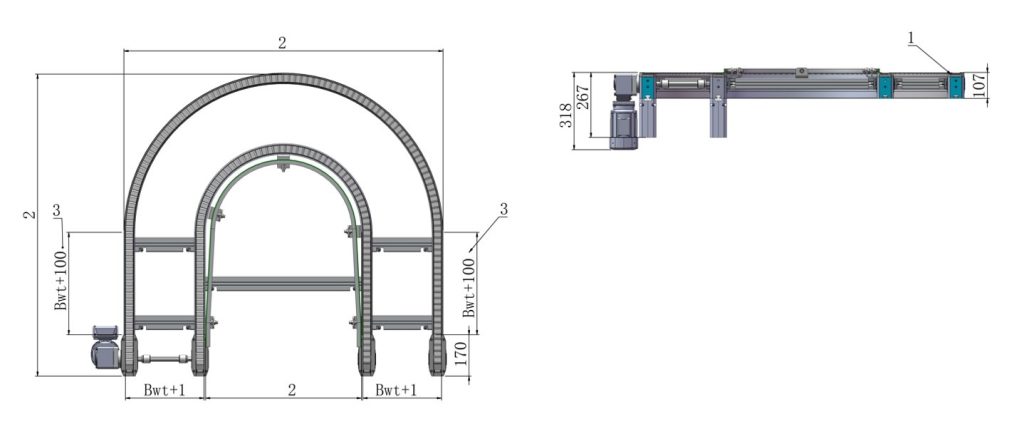

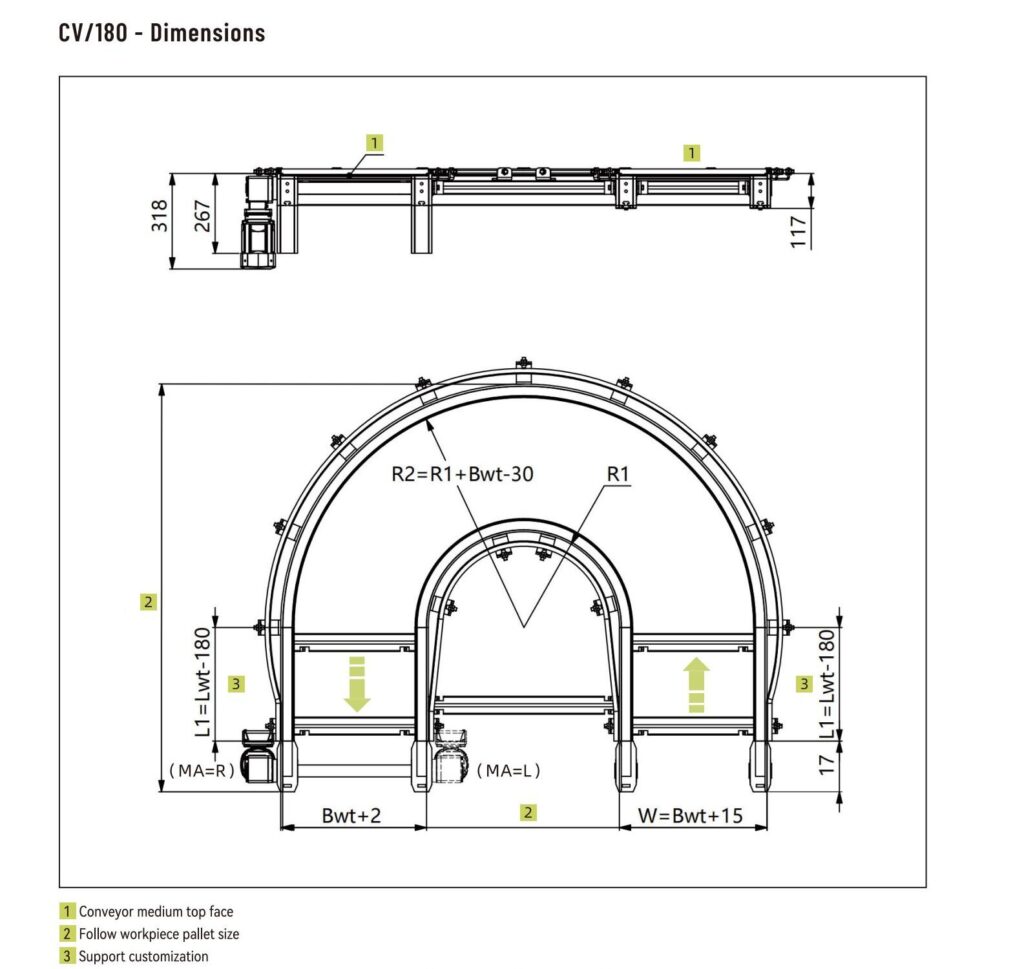

- Note: For workpiece pallet length is between 560mm and 1040mm, the dimensions of the curve unit is shown in above drawing. For workpiece pallet length Lwt is less than 800mm, curve unit inner diameter R1 is 320mm. For other lengths, the inner diameter R1 is 400mm.
Key benefits:
- Wear resistant flat top chain, long service life
loading capacity 1KG/CM
suitable for pallet size bigger than 400mm
Allowed accumulating, No affect to cycle time - Easy maintaining，low dust
- Modular design for quick installing
- Low noise during operating

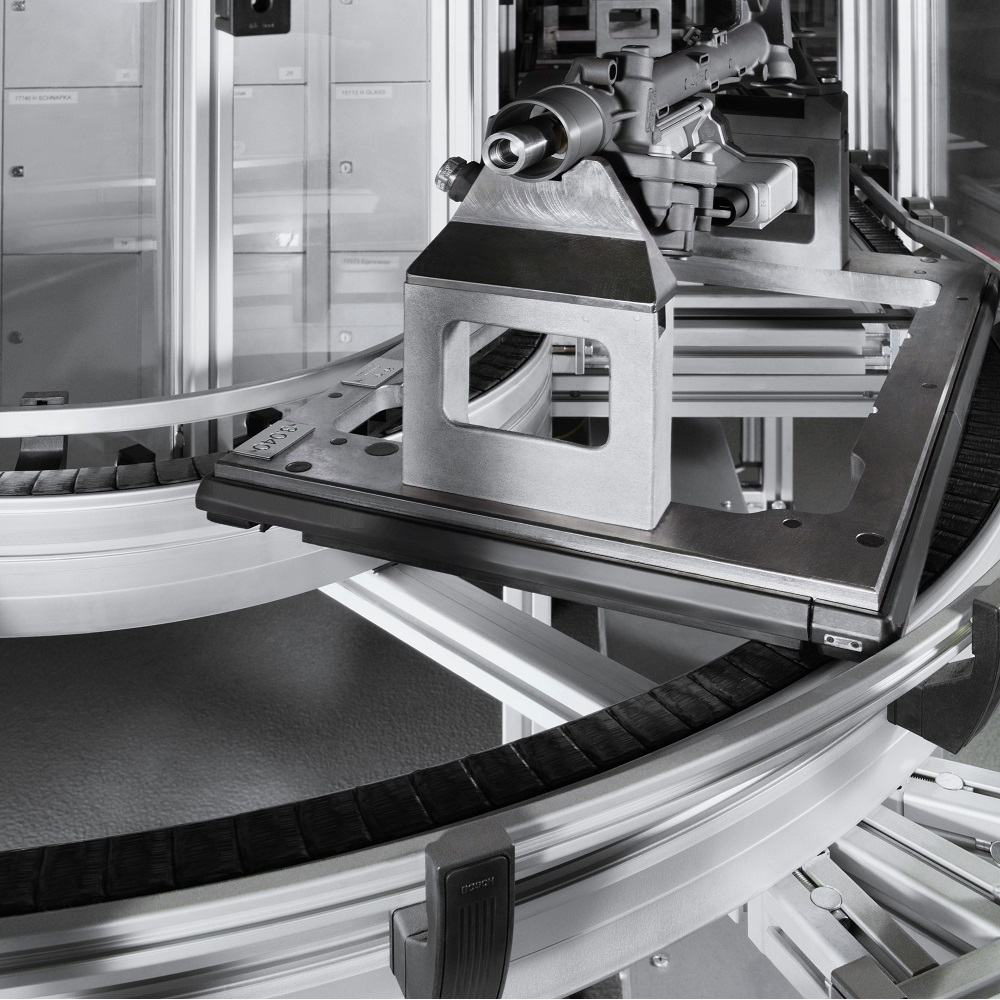

Revolutionizing Pallet Conveyance: Vitrans’ Flat Top Chain conveyor Curve

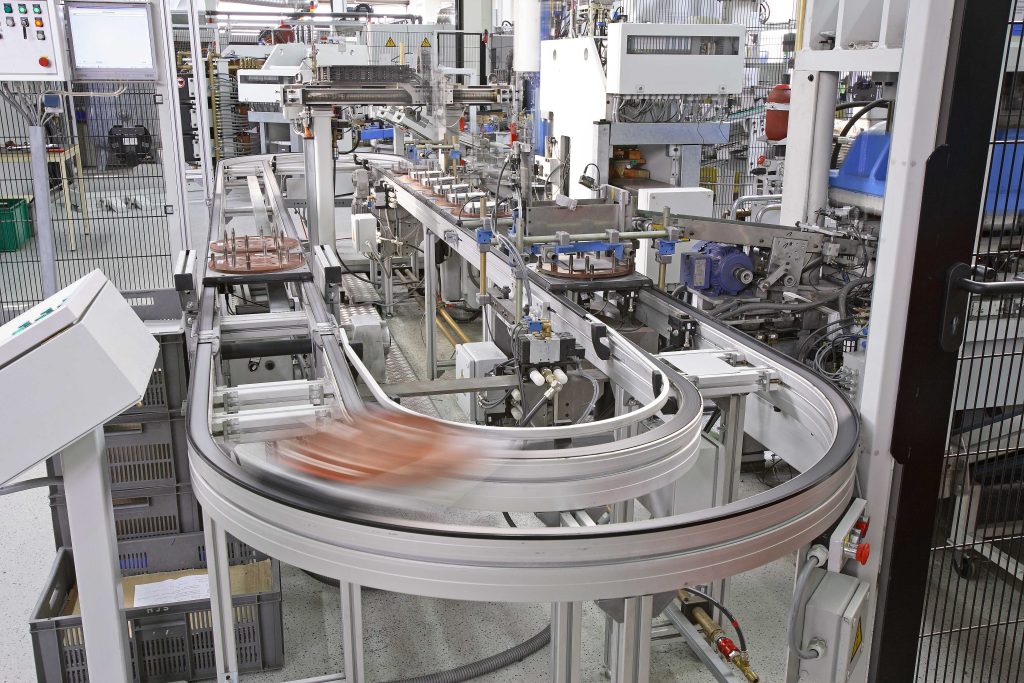

Synchronized Automation:
The Flat Top Chain Conveyor Curve seamlessly integrates into Automated conveyor systems, ensuring a synchronized and efficient flow of materials on the assembly line.
Precision Turns, Zero Jams:
Engineered for precision turns, it minimizes the risk of jams, guaranteeing a smooth and uninterrupted material handling process.
Adaptive Modularity:
Its modular design offers unparalleled adaptability, effortlessly fitting into existing conveyor systems or accommodating new configurations for optimized material flow.
Space-Efficient Design:
Featuring a compact turning radius, it excels in space utilization, a critical factor for facilities where every square meter counts.
Heavy weight Champion:
With an exceptional load-carrying capacity, it accommodates a wide range of materials, enhancing the versatility of the entire Conveyor System.
Pallet Stacking Capability:
Setting itself apart, this conveyor curve allows for pallet stacking operations, adding a layer of flexibility to material handling processes.
