SG/D-60 Pneumatic stopper/Pneumatic Dampeded Pallet Stopper
Parameter Specifications
| Product description | Pneumatic stopper |
|---|---|
| Model | SG/D.PN.0201 |
| Permitted load at rated speed | V=6m/min: max pallet weight 60kg |
| Permitted load at rated speed | V=9m/min: max pallet weight 40kg |
| Permitted load at rated speed | V=12m/min: max pallet weight 35kg |
| Permitted load at rated speed | V=15m/min: max pallet weight 30kg |
| Permitted load at rated speed | V=18m/min: max pallet weight 30kg |
| Permitted load at rated speed | V=24m/min: max pallet weight 24kg |
| Note | Workpiece pallet mass must not be less than 2.5kg at conveying speed 6m/min |
Details

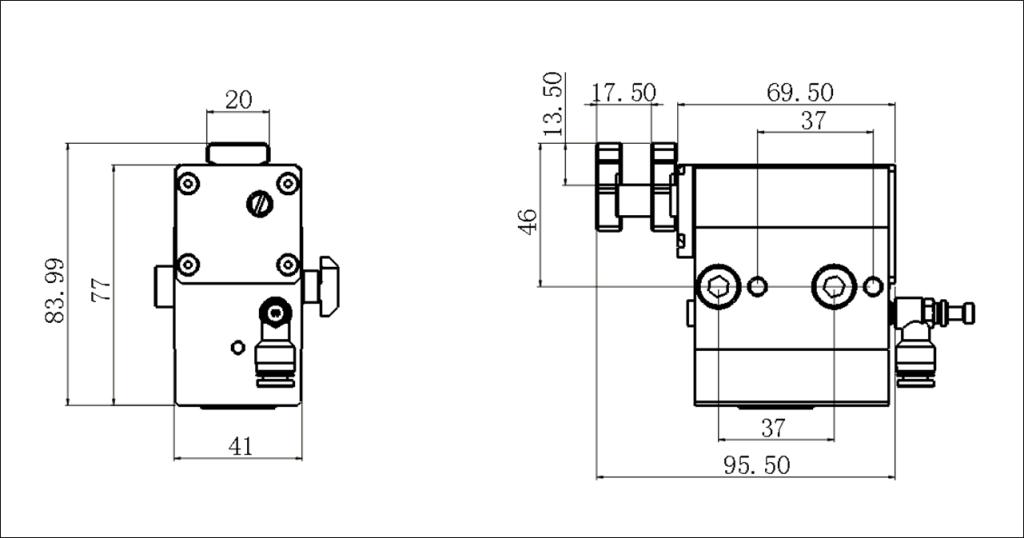

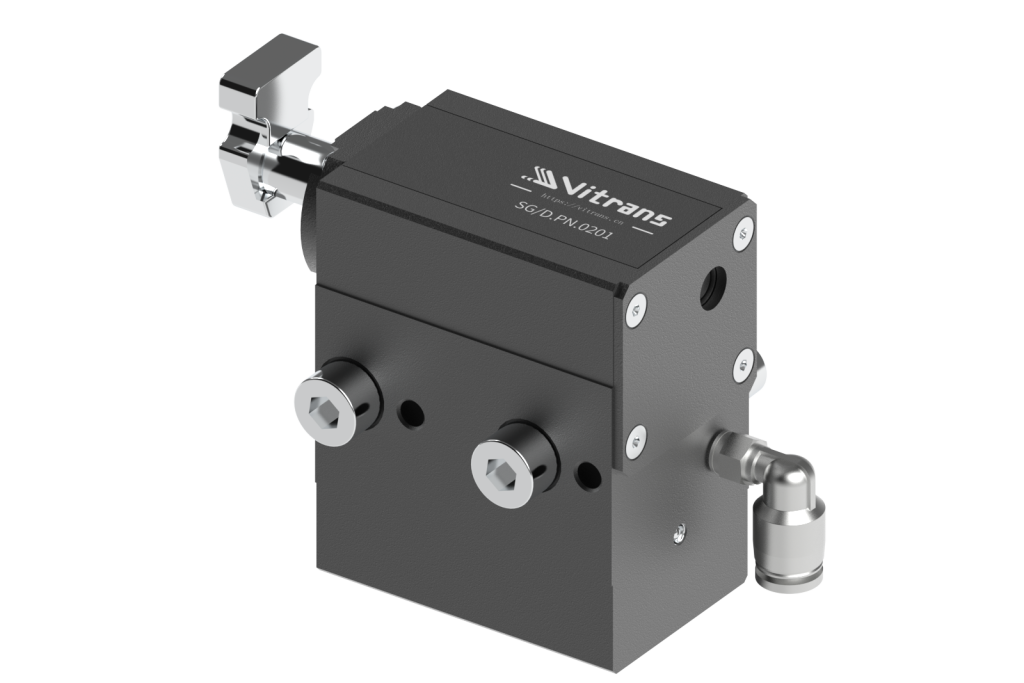

SG/D-60 pneumatic dampened Stopper Specification:
- Model code : SG/D.PN.0201
- Allowed max.Loading:60kg (under pallet speed 6m/min)
- Stopper type:pneumatic
- Acting type:single acting
- Air connector diameter: 6mm
- installing accessory:including
- solenoid valve:excluding
- Sensor:excluding
Key benefits:

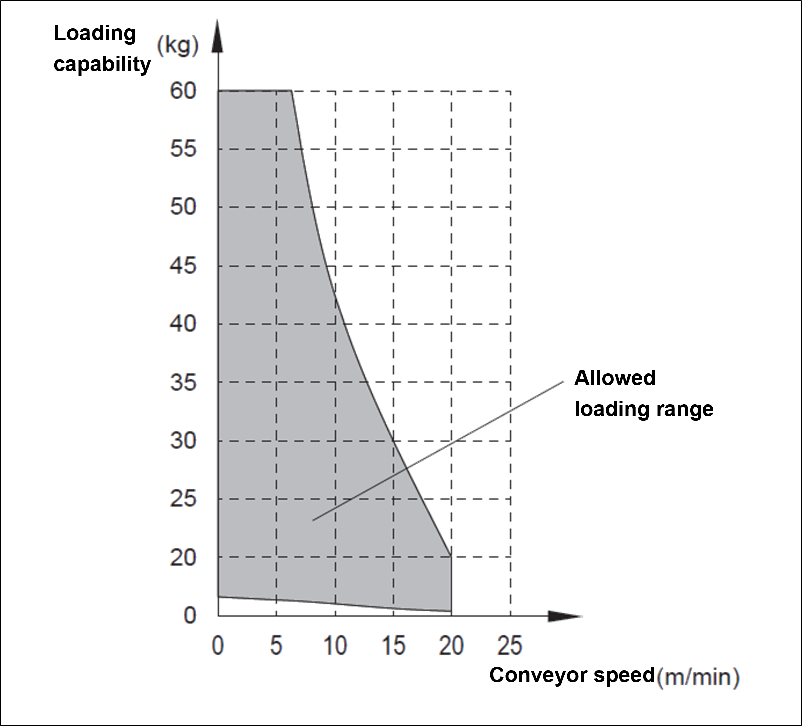

- Stopper loading capability is relative with conveyor speed
- Stopper rated loading 60kg is base on conveyor speed 6m/min
- For commom conveyor speed 18m/min, the stopper allowed loading is 25kg
Accumulated
The stopper allows pallet accumulated. But the total weight of pallets including fixtures and product should not exceed stopper allowed total loading.
Installation:

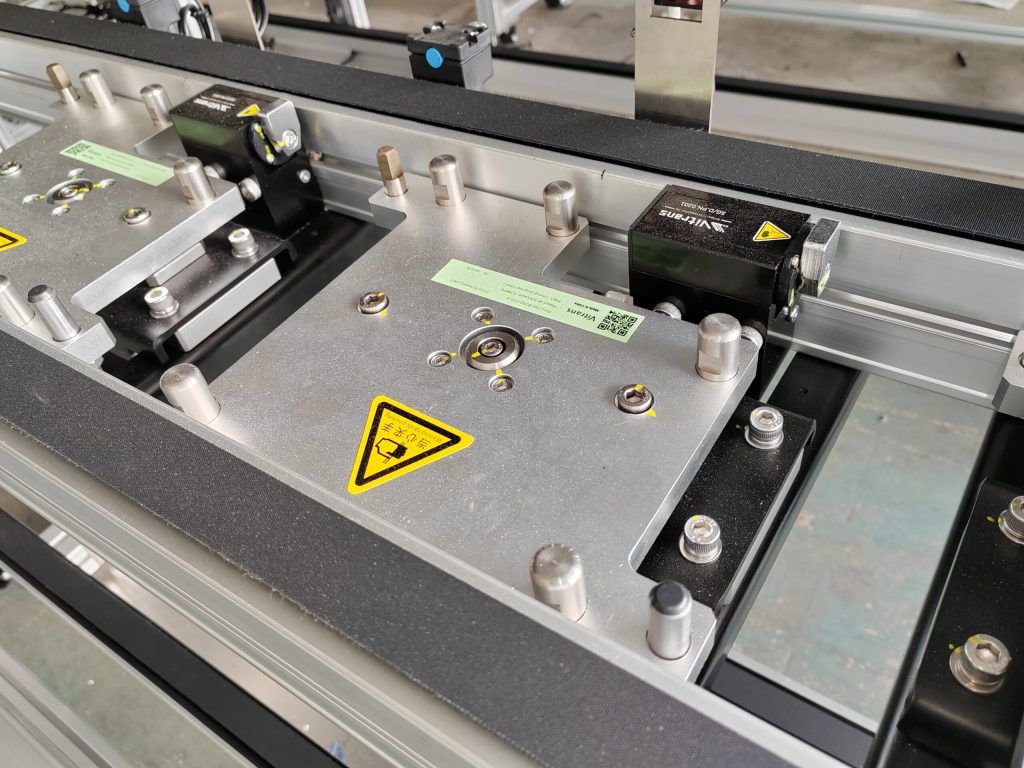

Install stopper at conveyor left side: When stopper is used with other modules like lift and transfer unit, stopper has to be installed at conveyor left side to stop pallet outer edge.
Install stopper at conveyor right side：When stopper is install at conveyor right side, it can stop pallet inner edge. This installing method can save space and release accumulated pallet one by one.
