Vitrans Overhead Conveyor Lifter | Elevator

Vitrans Overhead Conveyor Lifter | Elevator

Get Latest Price

Payment Type:	T/T
Incoterm:	FOB,CIF,EXW,DDP
Min. Order:	1 Set/Sets
Transportation:	Ocean
Port:	Shenzhen

load capacity:

60kg

Model:

LP/H

Types:

OverHead Conveyor Lifter
Servo Conveyor Lifter
OverHead Conveyor Elevator
Servo Conveyor Elevator
Long Distance Conveyor Lifter

Contact Now

Product Description

Product Attributes

Model No.: LP/H

Brand: Vitrans

Applicable Industry: Manufacturing Plant, Other

Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): United States, Viet Nam, Philippines, Mexico, India, Thailand, Malaysia

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Status: New

Material: Aluminium

Structure: Conveyor System

Place Of Origin: China

Power (Watts): Other

Warranty Period: 1 Year

Mechanical Test Report: Provided

Video Factory Inspection: Provided

Core Component Warranty Period: 1 Year

Core Components: Motor, Gear, Bearing, Gearbox

Lifting Drive Method: Servo Motor with Reducer

Lifting Distance: 900mm to 3000mm

Adapt Conveyor Type: Pallt Conveyor/Roller Conveyor

Packaging & Delivery

Selling Units	:	Set/Sets
Package Type	:	Wooden cases
Picture Example	:

Product Description

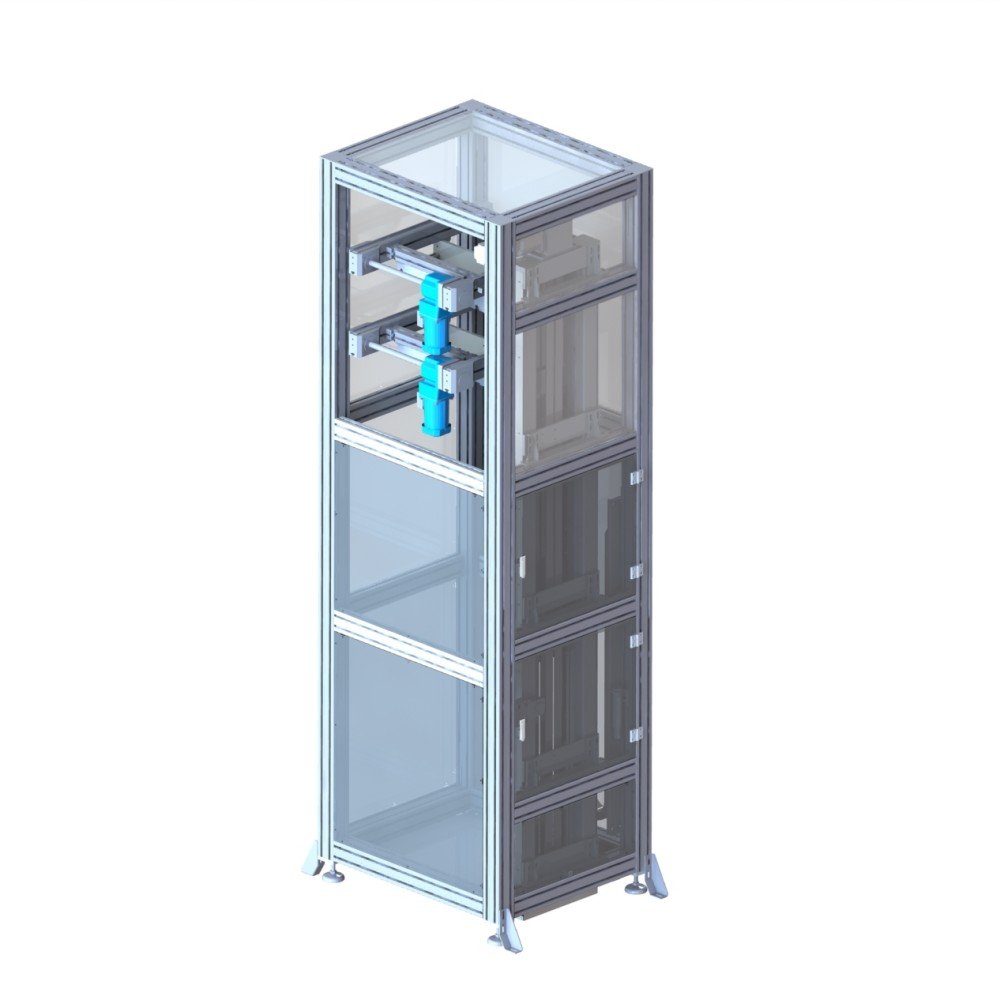

Overhead(Long Distance) Conveyor Lifter/Elevator Design:

Over Head Conveyor Lifter

Overhead(Long Distance) Conveyor Lifter/Elevator Specification:

conveyor Type can be used in the lifter		Belt conveyor, Chain Conveyor, Roller Conveyor
Product or Pallet Width /mm	Bwt	160 to 800
Product or Pallet Length /mm	Lwt	160 to 800
Max. Lifting Distance /mm		3000
Max. Lifting Speed /(mm/s)	Vh	800
Max. Lifting Load /kg		60
Lifting Drive Method		Servo Motor with Reducer
Frame Material		Aluminum Profile or Carbon Steel

Overhead(Long Distance) Conveyor Lifter/Elevator Application:

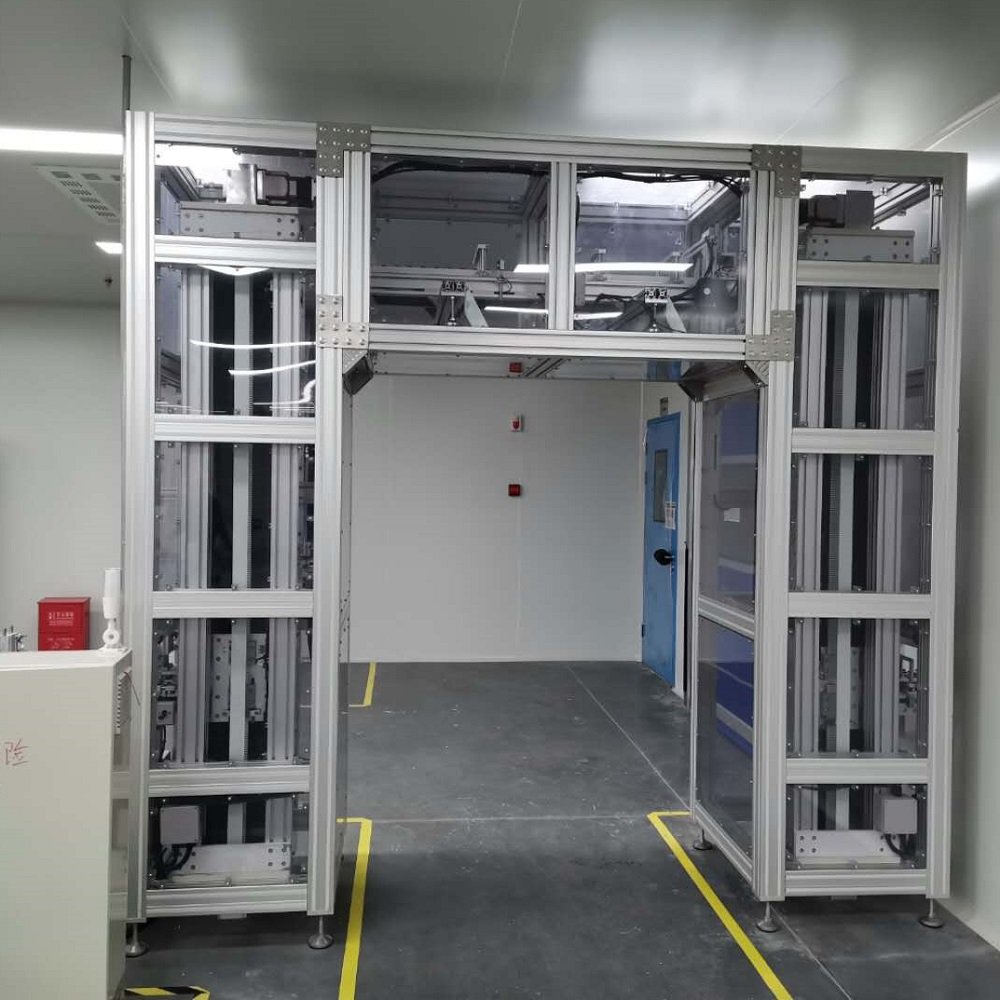

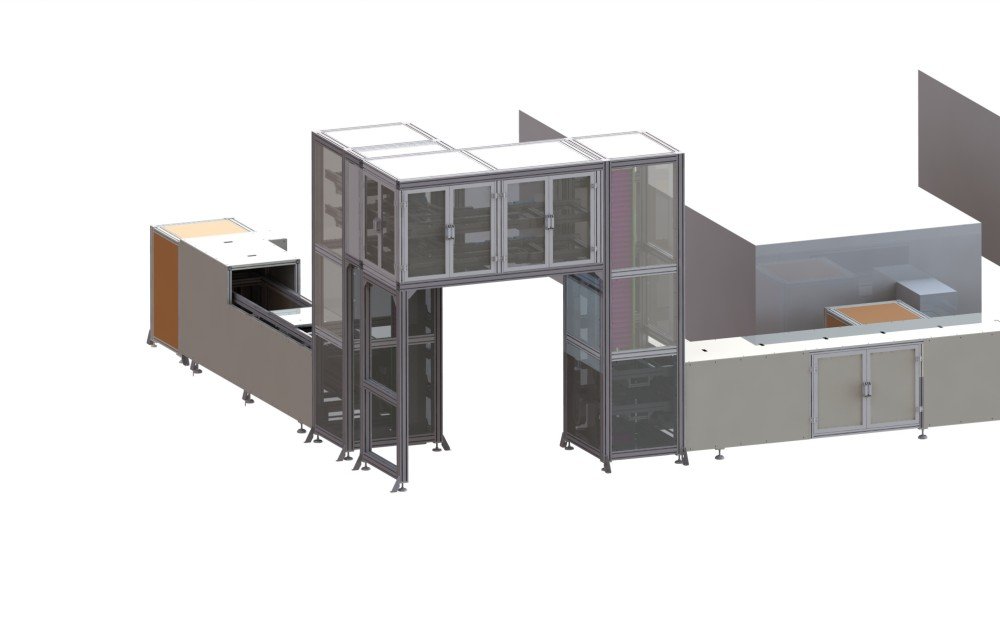

Exit Gate With Over Head Conveyor Lifter Over Head Conveyor Lifter Application

Pallet Conveyor Lifter

What are the main characteristics of an Over Head Conveyor Lift?

In order to facilitate the entry and exit of personnel and production materials, sometimes we have to lift pallets or products to a height higher than that of personnel for transportation.Two Over Head Conveyor Lifts can be used to build an over head Conveyor System.

The structure of the Over Head Conveyor Lift is similar to regular servo lift(short travel distance), which is driven by servo motor and timing belt to move the conveyor back and forth. However, its up and down travel is larger, which can lift pallet or product from a height of about 800mm to a height of about 3000mm. Unlike regular servo lift, the Over Head Conveyor Lift has added a counterweight mechanism to ensure it does not tip over during working.

Pallet Conveyor System Solutions For Automated Production
