Model No.: LP/C
Brand: Vitrans
Applicable Industry: Manufacturing Plant, Other
Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): Malaysia, India, Indonesia
Showroom Location (in Which Countries Are There Sample Rooms Overseas): None
Status: New
Material: Aluminium
Structure: Conveyor System
Place Of Origin: China
Power (Watts): Other
Warranty Period: 1 Year
Mechanical Test Report: Provided
Video Factory Inspection: Provided
Marketing Type: Other
Core Component Warranty Period: 1 Year
Core Components: Motor, Bearing
Conveyor Drive: Stepping motor
Lifting Drive: Servo Motor with Reducer
Cycle Time: 3 seconds
| Selling Units | : | Set/Sets |
| Package Type | : | Wooden cases |
| Picture Example | : |
|

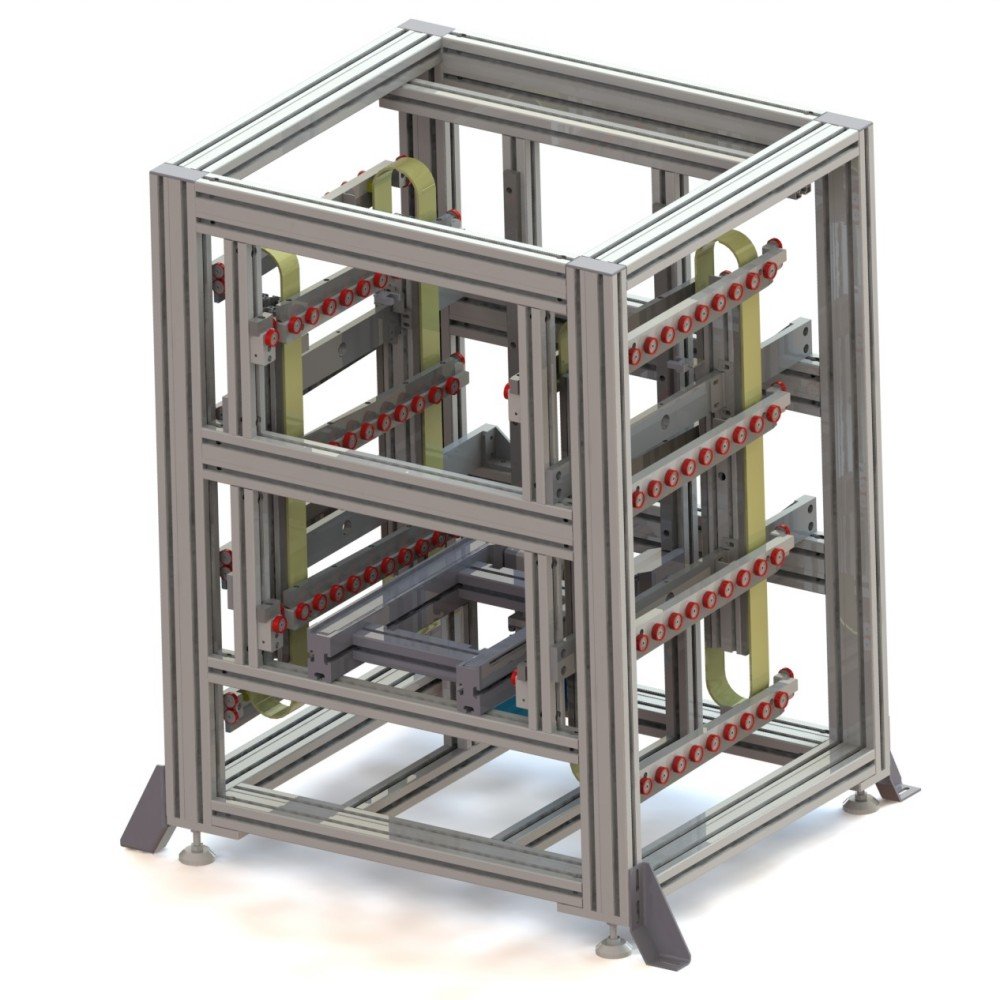

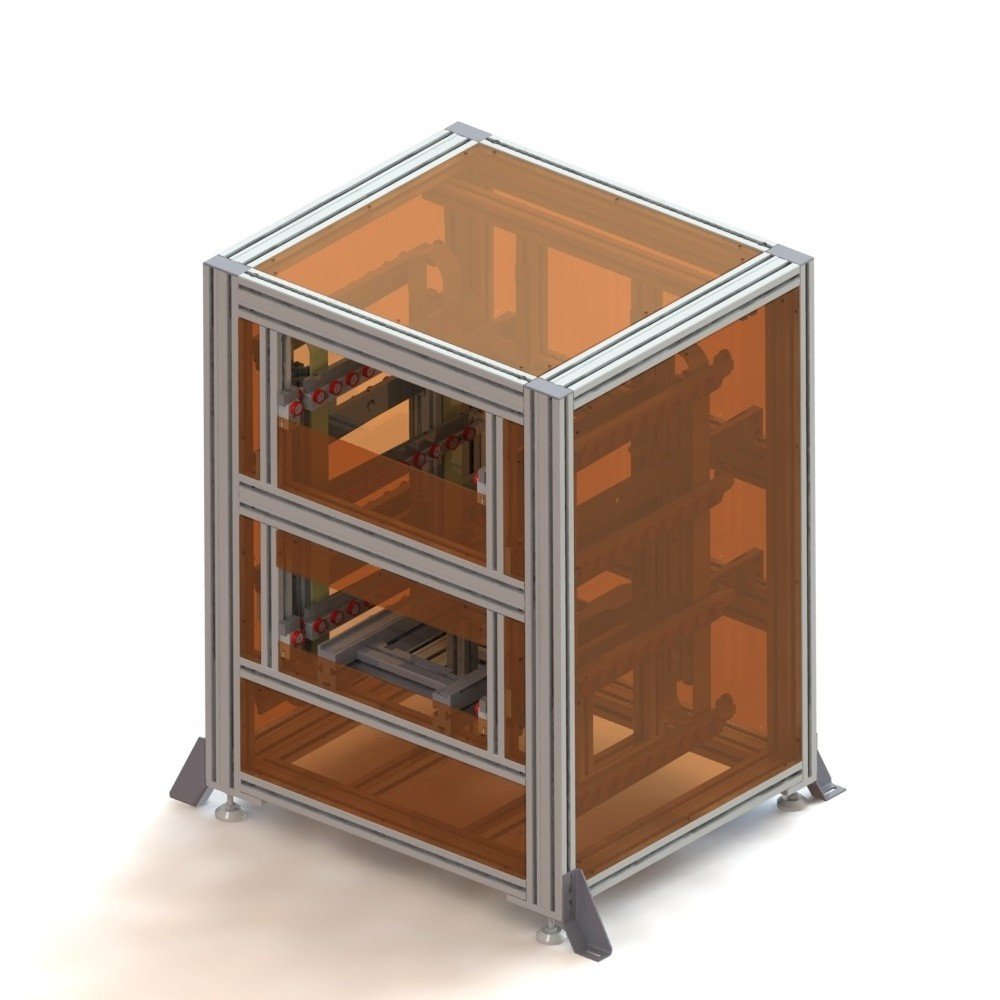

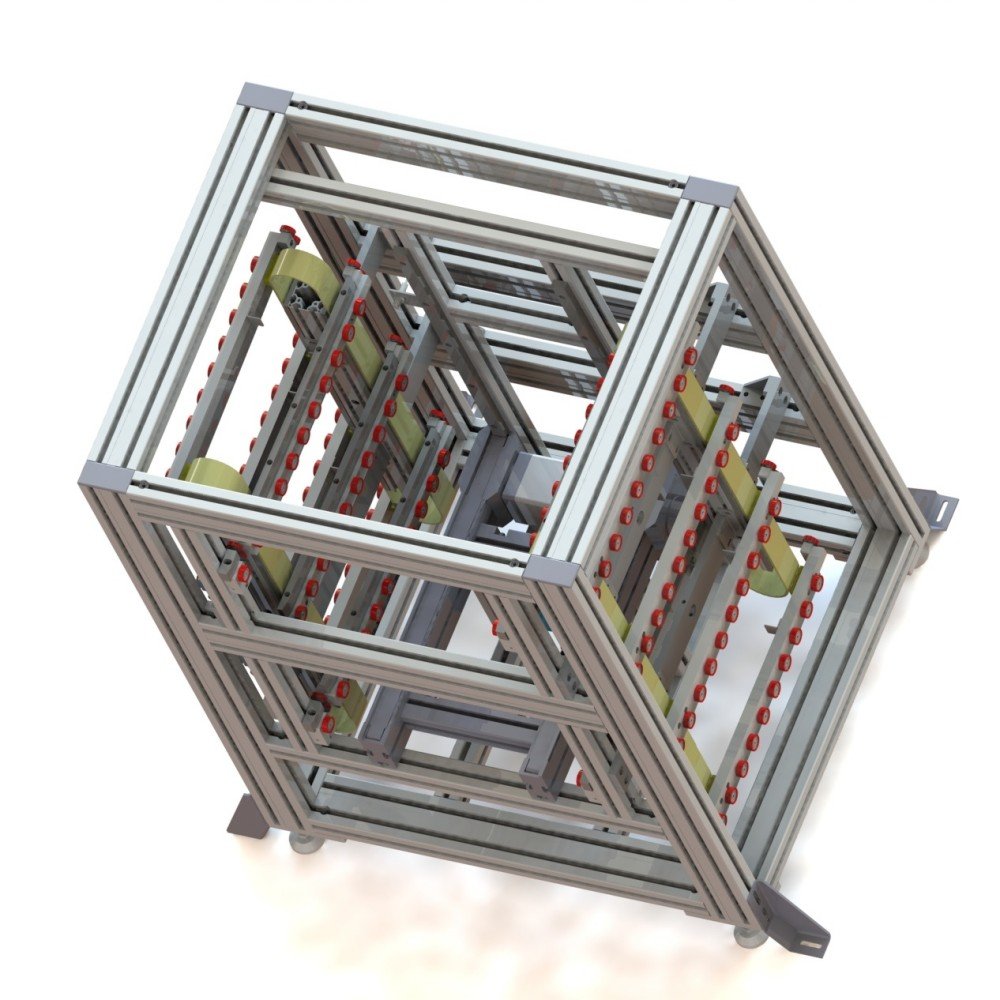

Short Cycle Time Pallet Lifter Design:
Short Cycle Time Pallet Lifter Specification:
| Pallet Width in Transfer Direction /mm | 160mm to 640mm |
| Pallet Length in Transfer Direction /mm | 160mm to 640mm |
| Max.Load /kg | 50kg |
| Conveyor Drive | Stepping Motor |
| Lifting Drive | Servo Motor with Reducer |
| Lifting Speed /(m/min) | 18 |
| Lifting step length /mm | 200mm or customized |
Enhancing Efficiency: The Short Cycle Time Pallet Lifter Revolution
Optimizing Cycle Time for High-Speed Pallet Conveyor Systems
In the dynamic realm of high-speed Pallet Conveyor systems, the Short Cycle Time Pallet Lifter emerges as a beacon of innovation, specifically tailored to meet the demanding requirements of swift cycle times. Unlike conventional pallet lifters that rely on a single conveyor within, the Short Cycle Time Pallet Lifter redefines efficiency by introducing a revolutionary design.
Overcoming Traditional Constraints:
Traditional pallet lifters, with a single internal conveyor, face inherent limitations. They are tasked with transporting pallets from the upper level to the lower level and resetting them to the upper level for the next cycle. The cycle time is intricately tied to the distance between upper and lower levels, as well as the length of the pallet. Longer distances and larger pallets translate to extended cycle times, impacting operational speed.
Innovative Design for Unprecedented Efficiency:
The Short Cycle Time Pallet Lifter breaks free from these constraints. Internally equipped with not just one, but multiple conveyors, each segment of the upper and lower levels is complemented by a non-powered Roller holder. This ingenious design divides the distance between levels into equal segments, ensuring that the cycle time is no longer dictated by the vertical distance between upper and lower levels. Regardless of the length of pallets or the distance covered, the roller holders collectively contribute to reducing the cycle time significantly.
Unleashing the Power of Roller Holders:
Each unit distance between upper and lower levels features a dedicated roller holder. These non-powered components efficiently manage the movement of pallets without the need for a motorized conveyor. The result is an independent and synchronized system that operates seamlessly, unburdened by the traditional constraints of cycle time.
Adaptable and Agile:
The Short Cycle Time Pallet Lifter stands out for its adaptability. Whether dealing with varying distances between levels or handling pallets of different dimensions, this lifter ensures consistent and optimized cycle times. Its agility in navigating diverse scenarios makes it a valuable asset in high-paced industrial environments.
The Short Cycle Time Pallet Lifter signifies a paradigm shift in the world of pallet conveyor systems. By ingeniously incorporating multiple roller holders, it not only escapes the limitations of traditional lifters but also elevates operational efficiency to new heights. In a landscape where time is of the essence, this lifter sets a new standard for speed, versatility, and uncompromising performance.
