PU2 Pallet Positioning Unit | Lift and Locate
Model No.: PU2/PH2
Brand: Vitrans
Applicable Industry: Manufacturing Plant, Other
Out-of-warranty Service: Online Support, Video Technical Support, Spare Parts
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None
Showroom Location (in Which Countries Are There Sample Rooms Overseas): None
Status: New
Material: Aluminium
Structure: Conveyor System
Place Of Origin: China
Power (Watts): Other
Warranty Period: 1 Year
Width Or Diameter: Other
Mechanical Test Report: Provided
Video Factory Inspection: Provided
Marketing Type: Other
Core Component Warranty Period: 1 Year
Core Components: Bearing
Positioning Unit Length: 160mm-640mm
Positioning Unit Width: 160mm-640mm
Positioning Unit Height: Customized
Lift Height: 0mm-250mm
Drive: Air cylinder
Cylinder: SMC
Certification: CE Certificate
SG/D-60 Pneumatic Dampeded Pallet Stopper
Applicable Industry: Manufacturing Plant, Other
Out-of-warranty Service: Online Support, Video Technical Support, Spare Parts
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): Malaysia, India
Showroom Location (in Which Countries Are There Sample Rooms Overseas): None
Status: New
Material: Aluminium
Material Characteristics: Heat Resistant
Structure: Conveyor System
Place Of Origin: China
Power (Watts): Other
Warranty Period: 1 Year
Width Or Diameter: Other
Mechanical Test Report: Provided
Video Factory Inspection: Provided
Marketing Type: Other
Core Component Warranty Period: 1 Year
Core Components: Other
Air Supply Requirement: 4-6bar
Max. Load: 20kg-60kg depends on coveyor speed
Work Temperature: Normal
Product Type: Air cylinder
Style1: Pneumatic Stop Gate
Style2: Single acting cylinder

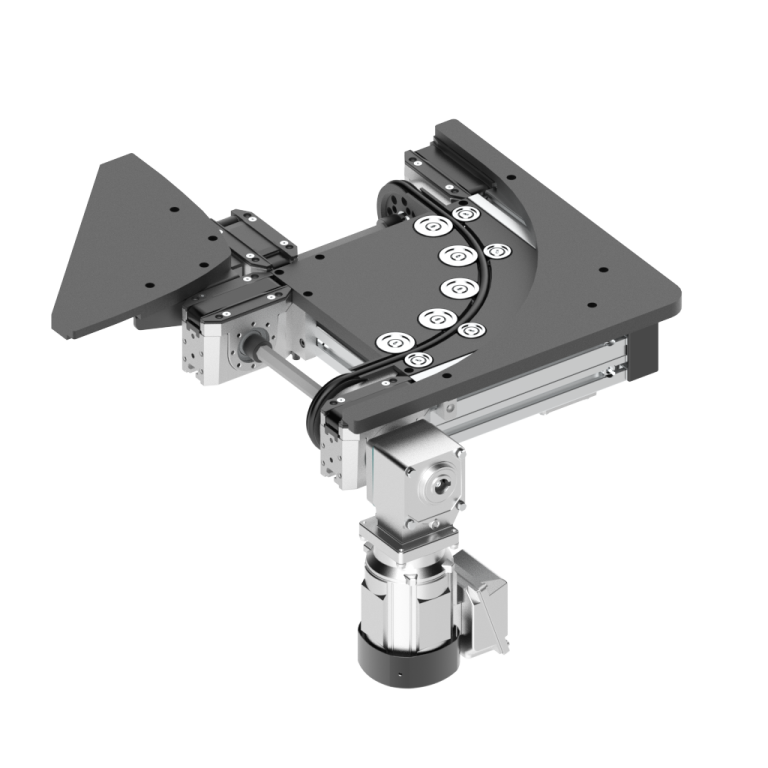

KV2/90 Degree Belt Conveyor Curve
| Pallet width in transport direction /mm | Bwt | 160,240,320,400,480 (160≤Bwt≤480) |
| Pallet length in transport direction /mm | Lwt | 160,240,320,400,480 (160≤Lwt≤480) |
| Standarding pallet size /mm | Bwt x Lwt | 160 x 160, 240, 320 |
| 240 x 160, 240, 320, 400 | ||
| 320 x 160, 240, 320, 400, 480 | ||
| 400 x 240, 320, 400, 480 | ||
| 480 x 320, 400, 480 | ||
| Max.Load /kg | 20 | |
| Nominal speed /(m/min) | V | 6, 9, 12, 15, 18 |
| Motor mounting method | MA | L, R, M |
| Curve direction | CO/CL | |
| Voltage /V | U | 220/380 AC |
| Frequency /Hz | f | 50 |
| Motor connection | AT | Terminal box |
conveyor parts
Our modular conveyor system components allow you to achieve a customised conveyor system that supports 90% of conveyors on the market from different brands.
Advantages
increased production line capacity and improved space utilisation.
Application
Production line,assembly line
Shop by Categories
- Passed 10,000 hours of testing
- Patented products
- Free Design Solutions
- 70% savings on similar products
- rapid response
- on-time delivery
Each order is followed up and reported from the moment it is placed.
Passed 10,000 hours of continuous operation test
Rapid response, both before and after the sale
The common choice of the top 500 companies-vitrans conveyor.stable, accurate, modular
- Free Design Program
- Modular design, compatible with other brands of machines
- Reliable: Passed 10,000 hours of continuous operation test
