| Payment Type: | L/C,T/T |
| Incoterm: | FOB,CIF,EXW,DDP |
| Min. Order: | 1 Set/Sets |
| Transportation: | Ocean |
| Port: | Shenzhen |
Model No.: CV/90
Brand: Vitrans
Applicable Industry: Manufacturing Plant, Advertising Company
Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None
Showroom Location (in Which Countries Are There Sample Rooms Overseas): None
Status: New
Material: Aluminium
Structure: Conveyor System
Place Of Origin: China
Power (Watts): 200w
Warranty Period: 1 Year
Mechanical Test Report: Provided
Video Factory Inspection: Provided
Marketing Type: Other
Core Component Warranty Period: 1 Year
Core Components: Other
Load Capacity: 1kg/cm
Conveyor Length: Customized
Conveyor Width: 160mm-800mm
Conveyor Height: Customized
Certification: CE Certificate
Max.Conveyor Speed: 20m/min
Motor: 180W/200W
Transfer Medium: Flat top chain
Stucture: Conveyor Curve
| Selling Units | : | Set/Sets |
| Package Type | : | ply-wood case |
| Picture Example | : |
|

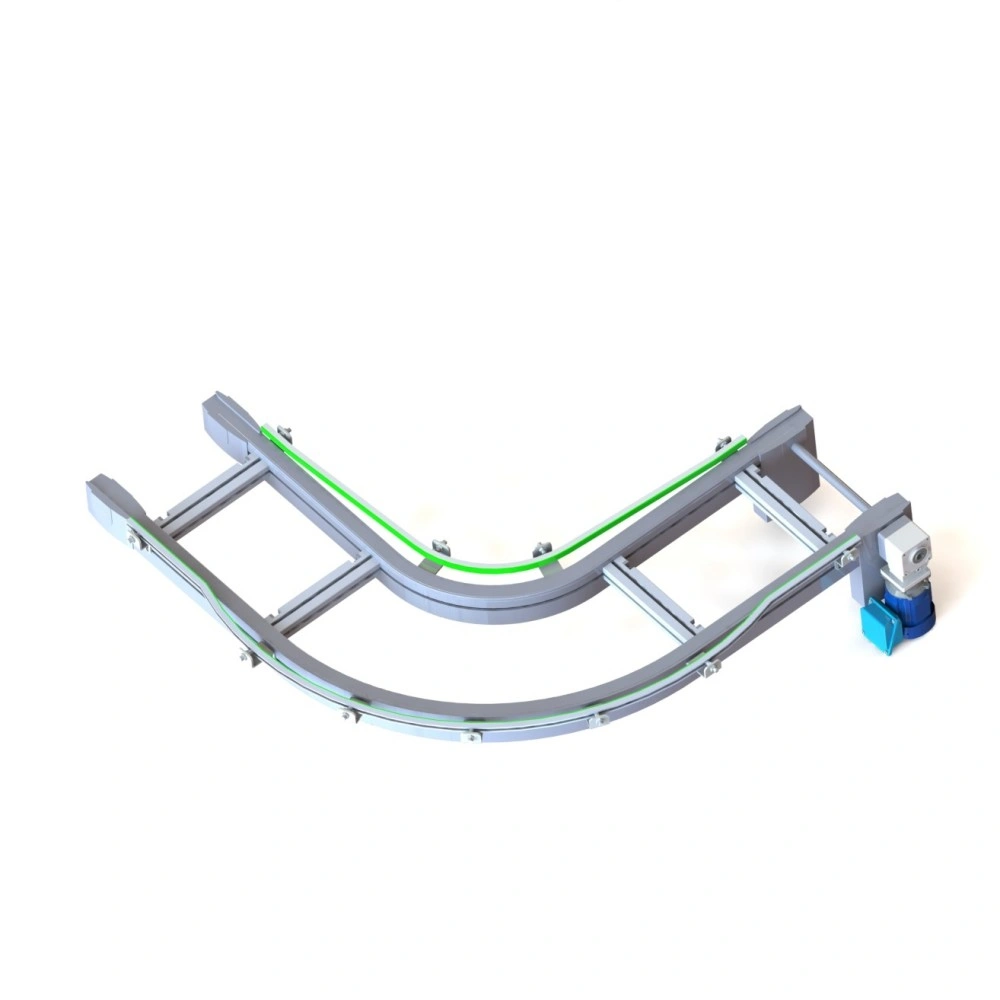

Flat Top Chain Conveyor Curve Design:
Flat Top Chain Conveyor Curve Specification:
| Pallet width in transport direction /mm | Bwt | 160,240,320,400,480,640,800(160≤Bwt≤800） |
| Pallet length in transport direction /mm | Lwt | 160,240,320,400,480,640,800,1040(160≤Lwt≤1040） |
| Stardard pallet size /mm | Bwt x Lwt | 160 x 160, 240, 320 |
| 240 x 160, 240, 320, 400 | ||
| 320 x 160, 240, 320, 400, 480 | ||
| 400 x 240, 320, 400, 480 | ||
| 480 x 320, 400, 480, 640 | ||
| 640 x 640, 800 | ||
| 800 x 800, 1040 | ||
| Max.Load /kg | | 90 |
| Nominal speed /(m/min) | V | 6,9,12,15,18 |
| Motor mounting method | | L, R, M |
| Curve direction | | CO, CL |
| Voltage /V | U | 220, 380AC |
| Frequency /Hz | f | 50 |
| Motor connection | AT | Terminal box |
Elevating Efficiency: The Flat Top Chain Conveyor Curve in Pallet Conveyor Systems
In the intricate dance of Pallet Conveyor System, the Flat Top Chain conveyor Curve emerges as a star performer, reshaping the landscape of automated material handling. Let's delve into the application of this innovative conveyor curve within Pallet Conveyor systems, exploring its features and the advantages it brings to the forefront of industrial logistics.
Space Optimization:
Efficient use of floor space is a constant challenge in industrial settings. The Flat Top Chain Conveyor Curve rises to this challenge with its compact design. By executing smooth turns with a minimal turning radius, it not only conserves space but also opens up new possibilities for layout design. This spatial optimization is a game-changer in facilities where every square meter counts.
High Load Capacity:
One of the primary advantages of the Flat Top Chain Conveyor Curve is its exceptional load-carrying capacity. Built to handle heavy loads with ease, this conveyor curve ensures that the production line can accommodate a diverse range of materials, contributing to the versatility and adaptability of the overall Conveyor System.
Allowance for Pallet Stacking:
In the dynamic realm of Pallet Handling, the Flat Top Chain Conveyor Curve introduces a unique capability – the allowance for pallet stacking operations. This feature facilitates efficient use of vertical space, enabling the stacking of pallets for storage or specific processing needs. The ability to handle stacked pallets further enhances the conveyor system's throughput and flexibility.
Vitrans Advantage:
In the competitive arena of Conveyor Solutions, Vitrans takes the lead with its Flat Top Chain Conveyor Curve. When juxtaposed against formidable competitors such as Bosch, Dorner, and Flexlink, Vitrans emerges as a brand synonymous with both affordability and uncompromised quality. Vitrans presents an optimal blend of cost-effectiveness and superior performance, ensuring a competitive edge in the market.
The Flat Top Chain Conveyor Curve isn't just a component in a Conveyor system ; it's a catalyst for efficiency, precision, and adaptability. From its seamless automation integration to its space-optimizing design, this conveyor curve stands as a testament to Vitrans' commitment to excellence. In the dynamic realm of pallet conveyor systems, the Flat Top Chain Conveyor Curve takes center stage, orchestrating a symphony of efficiency and reliability, with the added advantages of high load capacity and the ability to handle pallet stacking operations.
