| Payment Type: | L/C,T/T |
| Incoterm: | FOB,CIF,EXW,DDP |
| Min. Order: | 1 Set/Sets |
| Transportation: | Ocean |
| Port: | Shenzhen |
Model No.: CV/180
Brand: Vitrans
Applicable Industry: Manufacturing Plant, Advertising Company
Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None
Showroom Location (in Which Countries Are There Sample Rooms Overseas): None
Status: New
Material: Aluminium
Structure: Chain Conveyor
Place Of Origin: China
Power (Watts): 200w
Warranty Period: 1 Year
Mechanical Test Report: Provided
Video Factory Inspection: Provided
Marketing Type: Other
Core Component Warranty Period: 1 Year
Core Components: Other
Load Capacity: 1kg/cm
Conveyor Length: Customized
Conveyor Width: 160mm-800mm
Conveyor Height: Customized
Certification: CE Certificate
Max.Conveyor Speed: 20m/min
Motor: 200W/250W
Transfer Medium: Flat Top Chian
Stucture: Conveyor Curve
| Selling Units | : | Set/Sets |
| Package Type | : | ply-wood case |
| Picture Example | : |
|

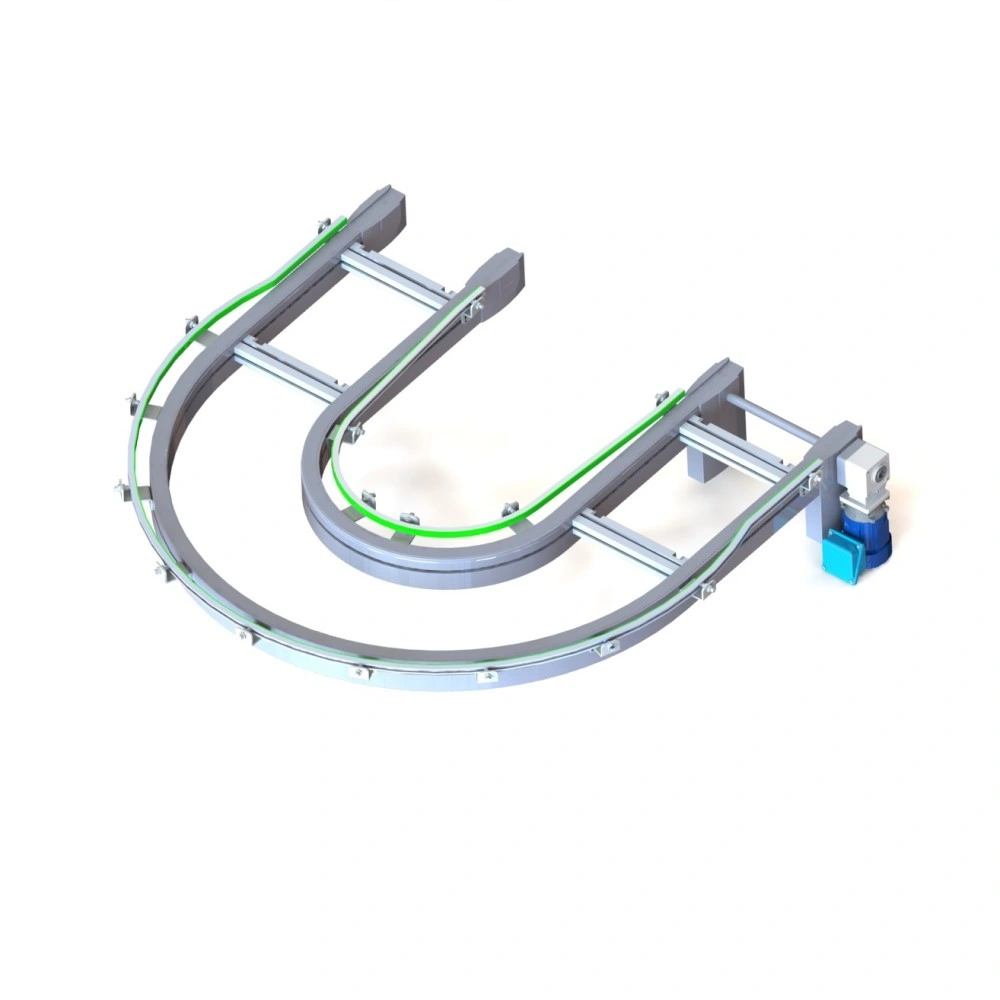

CV/180 Flat Top Chain Conveyor Curve Design:
CV/180 Flat Top Chain Conveyor Curve Specification:
| Pallet width in transport direction /mm | Bwt | 160,240,320,400,480,640,800(160≤Bwt≤800) |
| Pallet length in transport direction /mm | Lwt | 160,240,320,400,480,640,800(160≤Lwt≤800) |
| Standard pallet size /mm | Bwt x Lwt | 160 x 160, 240, 320 |
| 240 x 160, 240, 320, 400 | ||
| 320 x 160, 240, 320, 400, 480 | ||
| 400 x 240, 320, 400, 480 | ||
| 480 x 320, 400, 480, 640 | ||
| 640 x 640, 800 | ||
| 800 x 800 | ||
| Max. Load /kg | | 60 |
| Nominal speed /(m/min) | V | 6,9,12,15,18 |
| Motor mounting method | MA | L, R, M |
| Curve direction | | CO, CL |
| Voltage /V | U | 220, 380 AC |
| Frequency /Hz | f | 50 |
| Motor connection | AT | Terminal box |
Revolutionizing Pallet Conveyance: Vitrans' Flat Top Chain Conveyor Curve
In the realm of Pallet Conveyor Systems, Vitrans emerges as a trailblazer with its innovative Flat Top Chain conveyor Curve, introducing a paradigm shift in automated material handling. Let's delve into the applications of this cutting-edge technology and uncover its unique advantages over industry competitors.
Synchronized Automation:
The Flat Top Chain Conveyor Curve seamlessly integrates into Automated conveyor systems, ensuring a synchronized and efficient flow of materials on the assembly line.
Precision Turns, Zero Jams:
Engineered for precision turns, it minimizes the risk of jams, guaranteeing a smooth and uninterrupted material handling process.
Adaptive Modularity:
Its modular design offers unparalleled adaptability, effortlessly fitting into existing conveyor systems or accommodating new configurations for optimized material flow.
Space-Efficient Design:
Featuring a compact turning radius, it excels in space utilization, a critical factor for facilities where every square meter counts.
Heavyweight Champion:
With an exceptional load-carrying capacity, it accommodates a wide range of materials, enhancing the versatility of the entire Conveyor System.
Pallet Stacking Capability:
Setting itself apart, this conveyor curve allows for pallet stacking operations, adding a layer of flexibility to material handling processes.
Vitrans' Competitive Edge:
When compared to industry giants Bosch, Dorner, and Flexlink, Vitrans distinguishes itself with a winning combination of affordability and superior performance.
Gentle Handling, Uncompromising Performance:
Balancing gentle handling of fragile goods with the robust performance needed for heavy pallets, it proves to be a versatile solution for diverse material types.
Environmental Stewardship:
Embodying energy efficiency and eco-friendliness, it aligns seamlessly with the growing demand for sustainable manufacturing practices.
Vitrans' Flat Top Chain Conveyor Curve isn't just a conveyor; it's an innovation that reshapes the landscape of pallet conveyance. It symbolizes efficiency, precision, and adaptability, setting new standards for reliability and high-performance in the dynamic world of Pallet Conveyor systems.
