| Payment Type: | T/T |
| Incoterm: | FOB,CIF,EXW,DDP |
| Min. Order: | 1 Set/Sets |
| Transportation: | Ocean |
| Port: | shenzhen |
Model No.: RC/C-V
Brand: Vitrans
Applicable Industry: Manufacturing Plant, Other
Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): United Kingdom, Philippines, Spain, Thailand, Malaysia, Morocco, Germany, United States, Russia, Viet Nam, Turkey
Showroom Location (in Which Countries Are There Sample Rooms Overseas): None
Warranty Period: 1 Year
Core Component Warranty Period: 1 Year
| Selling Units | : | Set/Sets |
| Picture Example | : |
|

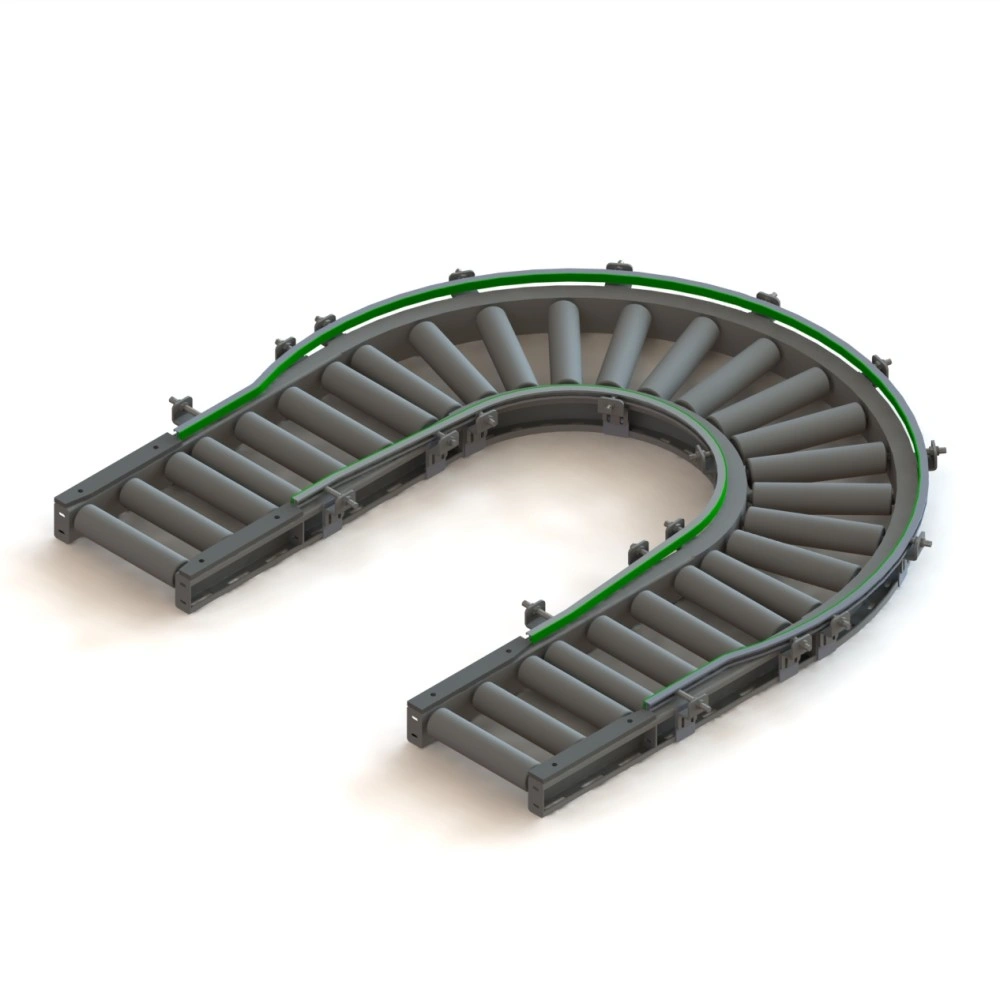

Roller Conveyor(Chain driving) Design:
Roller Conveyor(Chain driving) Specification:
| conveyor Effective Width /mm | Bwt | 120 to 1000 |
| Curve Angle /degree | 90 or 180 | |
| Roller Drive Method | By chain | |
| Conveyor Drive Method | 3 Phase Motor | |
| Transfer Speed /(m/min) | V | 6 to 18 |
| Roller Diameter /mm | D | 50 ro 60 |
| Roller material | stainless steel | |
| Roller Pitch /mm | P | Customized,basis on product payload and dimensions. |
Roller Conveyor(Chain driving) Application:
What is the function of a Roller Conveyor Curve?
There are three mechanisms in the Roller Conveyor System that can be used to change the direction of product operation. One is the rotary table, the other is the lift and transfer unit, and the other is the Conveyor Curve. The roller conveyor curve can not only achieve a 90 ° or 180 ° turn of the product, but also ensure that the direction of the product does not change
What is the structure of a roller conveyor curve?
The roller conveyor curve mainly consists of a drive unit, a return unit, and a curve section. The motor is installed on the drive unit to provide power, and the curve section generally has guide components to be placed on the product to detach from the conveyor during turning.
