| Payment Type: | T/T |
| Incoterm: | CIF,FOB,EXW,DDP |
| Min. Order: | 1 Set/Sets |
| Transportation: | Ocean |
| Port: | Shenzhen |
Model No.: QV
Brand: Vitrans
Applicable Industry: Manufacturing Plant, Other
Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): India, Malaysia, Indonesia
Showroom Location (in Which Countries Are There Sample Rooms Overseas): None
Status: New
Material: Aluminium
Structure: Belt Conveyor
Place Of Origin: China
Power (Watts): Other
Warranty Period: 1 Year
Mechanical Test Report: Provided
Video Factory Inspection: Provided
Marketing Type: Other
Core Component Warranty Period: 1 Year
Core Components: Other
Drive Method: Motor
Transfer Medium: Timing Belt
| Selling Units | : | Set/Sets |
| Package Type | : | Wooden cases |
| Picture Example | : |
|

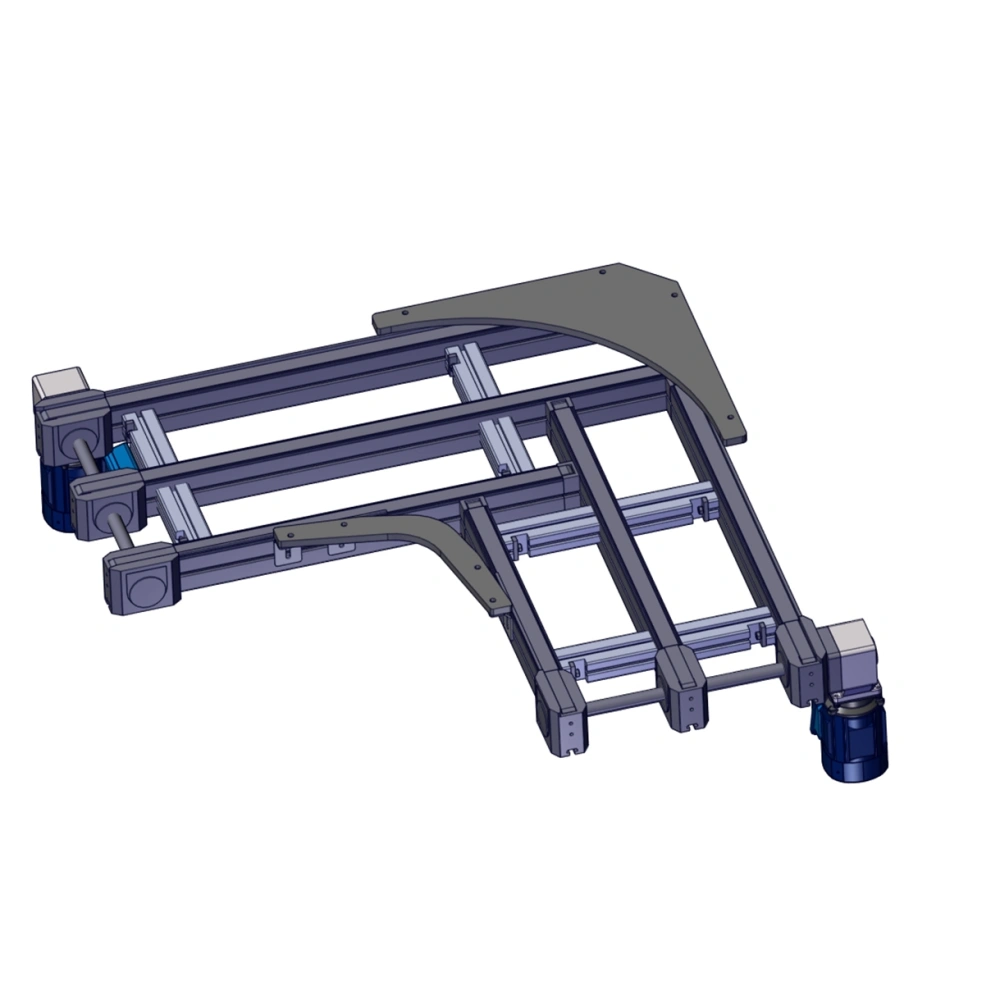

Timing belt conveyor Curve Design:
Timing Belt Conveyor Curve Dimensions:
Timing Belt conveyor Curve Specification:
| Transfer Medium | Timing Belt |
| Drive Method | 3 Phase Motor (2pcs) |
| Motor Power /W | 200W, 250W, 370W |
| Pallet Width in Transfer Direction /mm | 160mm to 640mm |
| Pallet Length in Transfer Direction /mm | 160mm to 640mm |
| Curve Length /mm | Customized |
The "Timing Belt Conveyor Curve" and the "Round belt conveyor Curve" are both mechanisms within the Pallet Conveyor System designed for navigating curves or turns. The key distinction lies in the power transmission method and the applicable range of pallet sizes and loads.
The "Round Belt Conveyor Curve" relies on a single round belt to provide the turning power for the pallet. However, it is limited in terms of its capacity and can only be used for pallets with dimensions below 400mm, with a maximum load capacity of 20kg.
On the other hand, the "Timing Belt conveyor Curve" utilizes six timing belts and two motors to generate the turning force. This design provides a more robust power source, enabling it to accommodate a broader range of pallet sizes, ranging from 160mm to 640mm. Additionally, it can handle heavier loads compared to the Round Belt Conveyor Curve.
In summary, while both conveyors are used for turning within the pallet Conveyor System, the Timing Belt Conveyor Curve offers a more powerful and versatile solution, suitable for a wider range of pallet sizes and higher load capacities than the Round Belt Conveyor Curve.
